Electrospindle Manual Tool-change

CATEGORY: WOOD LINE
Back Enquire

OVERVIEW

Manual tool-change electrospindles are designed for high power density and compactness, making them ideal for wood, plastic and aluminium.
They are realized to suit better at all different conditions of using both for milling, drilling and edgebending.
The wide range of powers, from 0,35kW to 13,5kW with rotation speed up to 30.000rpm (model MT1055 Liquid) allow a wide-using versatility that covers all kind of working conditions with axials and radial force. “Quality without Compromises” system is the rule in HSD organisation and guarantees unquestionable service and the highest reliability.



HSD is the leading world company in the production of MTC Milling Electrospindles.

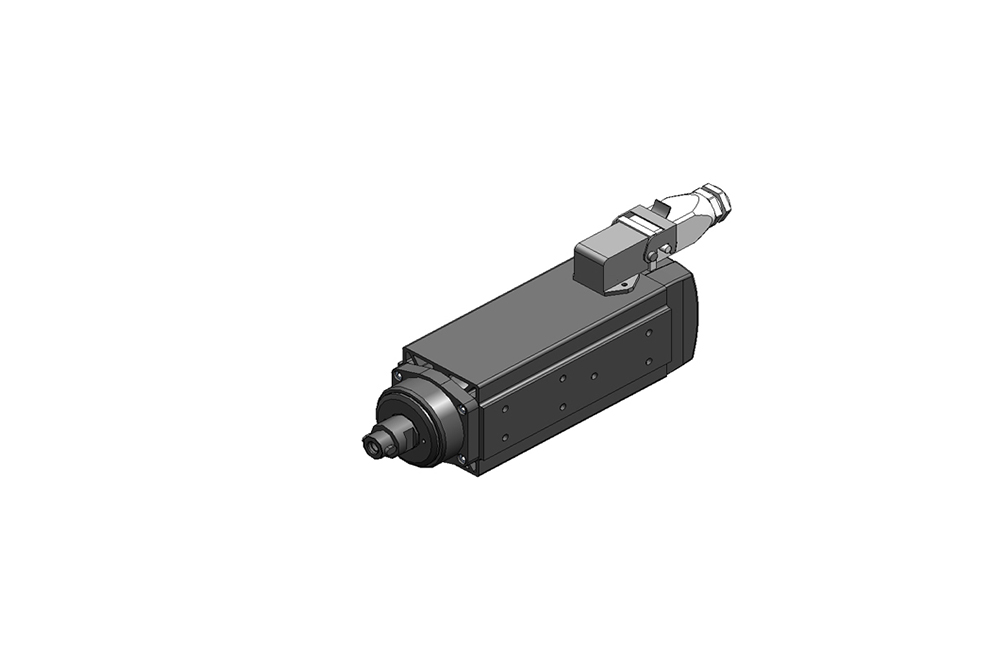

MT-R1055 - H6162H0115

Kw 1-S1/1,3-S6 - HSK C32

24.000rpm - 380V - right rotation

MT-R1055 - H6162H0115

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,3Kw
Connection type: HSK C32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

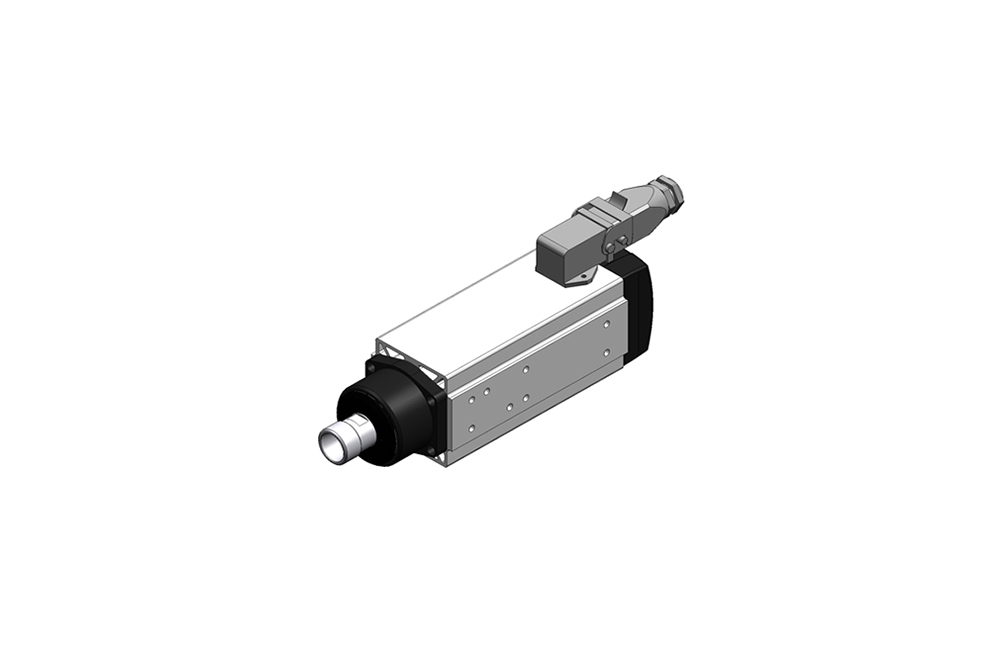

MT-R1073 - H6162H0107

Kw 2,2-S1/2,8-S6 - HSK C32

18.000rpm - 220V - right rotation

MT-R1073 - H6162H0107

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,2Kw/2,8Kw
Connection type: HSK C32
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

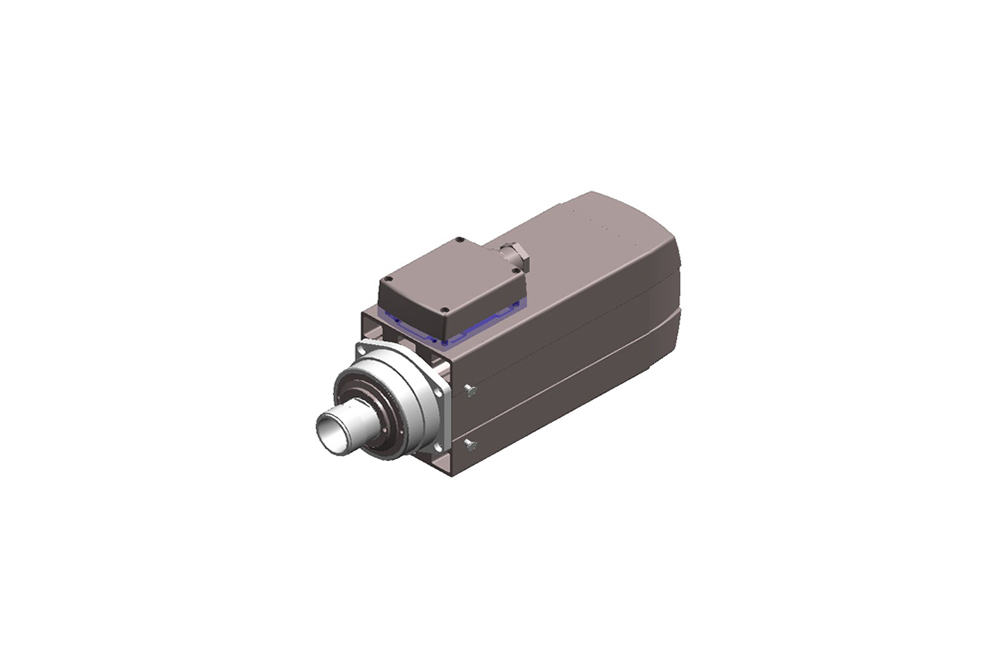

MT-R1090 - H6162H0108

Kw 6-S1/7,2-S6 - HSK C40

24.000rpm - 380V - left/right rotation

MT-R1090 - H6162H0108

TECHNICAL SPECIFICATIONS
Power S1/S6: 6Kw/7,2Kw
Connection type: HSK C40
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right/Left

MT-R1090 - Y6162Y0049

Kw 5-S1/6-S6 - HYDRO

18.000rpm - 380V - right rotation

MT-R1090 - Y6162Y0049

TECHNICAL SPECIFICATIONS
Power S1/S6: 5Kw/6Kw
Connection type: Hydro Quick-Change Tooling
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 18.000rpm
Rotation: Right
Weight: 12kg

MT-R1120 - H6162H0111

Kw 5,8-S1/7,5-S6 - HSK C63

6.000rpm - 380V - right rotation

MT-R1120 - H6162H0111

TECHNICAL SPECIFICATIONS
Power S1/S6: 5,8Kw/7,5Kw
Connection type: HSK C63
Rated voltage: 380V
Rated speed: 6.000 rpm
Max speed: 6.000rpm
Rotation: Right

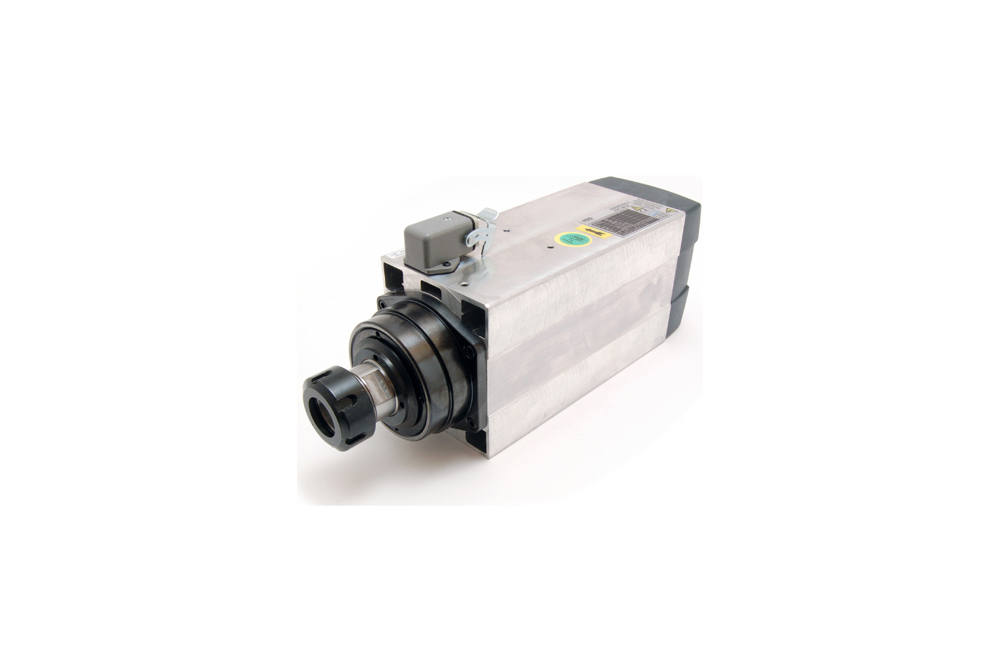

MT1055 - H6162H0086

Kw 1,00-S1/1,30-S6 - connection ER20 collet

30.000rpm - LIQUID cooling 380V - right rotation

MT1055 - H6162H0086

TECHNICAL SPECIFICATIONS
Power S1/S6: 0,65Kw/0,85Kw
Connection type: Collet ER20
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

MT1055 - H6162H0087

Kw 1,00-S1/1,30-S6 - connection ER20 collet

30.000rpm - LIQUID cooling 220V - right rotation

MT1055 - H6162H0087

TECHNICAL SPECIFICATIONS
Power S1/S6: 1,00Kw/1,30Kw
Connection type: Collet ER20
Rated voltage: 220V
Rated speed: 18.000rpm
Max speed: 30.000rpm
Rotation: Right

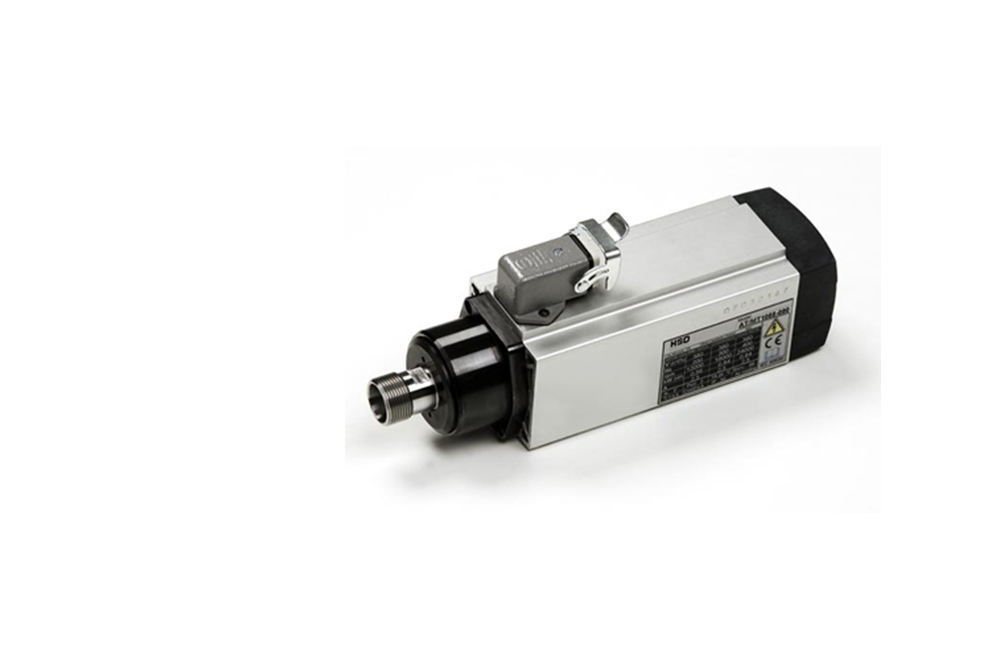

MT1055 - Y6162Y0002

Kw 0,65-S1/0,85-S6

connection ER20 collet - 12.000rpm - rated voltage 380V - right rotation

MT1055 - Y6162Y0002

TECHNICAL SPECIFICATIONS
Power S1/S6: 0,65Kw/0,85Kw
Connection type: Collet ER20
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

MT1055 - Y6162Y0003

Kw 1-S1/1,30-S6 - connection ER20 collet

18.000rpm - rated voltage 380V - right rotation

MT1055 - Y6162Y0003

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER20
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

85-S6MT1055 - Y6162Y0004

Kw 0,65-S1/0, connection ER20 collet

12.000rpm - rated voltage 220V - right rotation

85-S6MT1055 - Y6162Y0004

TECHNICAL SPECIFICATIONS
Power S1/S6: 0,65Kw/0,85Kw
Connection type: Collet ER20
Rated voltage: 220V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

T1055 - Y6162Y0005

Kw 1-S1/1,30-S6 - connection ER20 collet

18.000rpm - rated voltage 220V - right rotation

T1055 - Y6162Y0005

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER20
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1055 - Y6162Y0033

Kw 1-S1/1,30-S6 - connection ER20 collet

18.000rpm - rated voltage 380V - right rotation

MT1055 - Y6162Y0033

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER20
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1055 - Y6162Y0077

Kw 1-S1/1,30-S6 - connection ER20 collet

18.000rpm - rated voltage 380V - right rotation

MT1055 - Y6162Y0077

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER20
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1055 - H6162H0088

Kw 1-S1/1,30-S6 - connection ER20 collet

18.000rpm - rated voltage 220/380V - right rotation

MT1055 - H6162H0088

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER20
Rated voltage: 220/380V
Rated speed: 18.000 rpm
Max speed: 26.000rpm
Rotation: Right

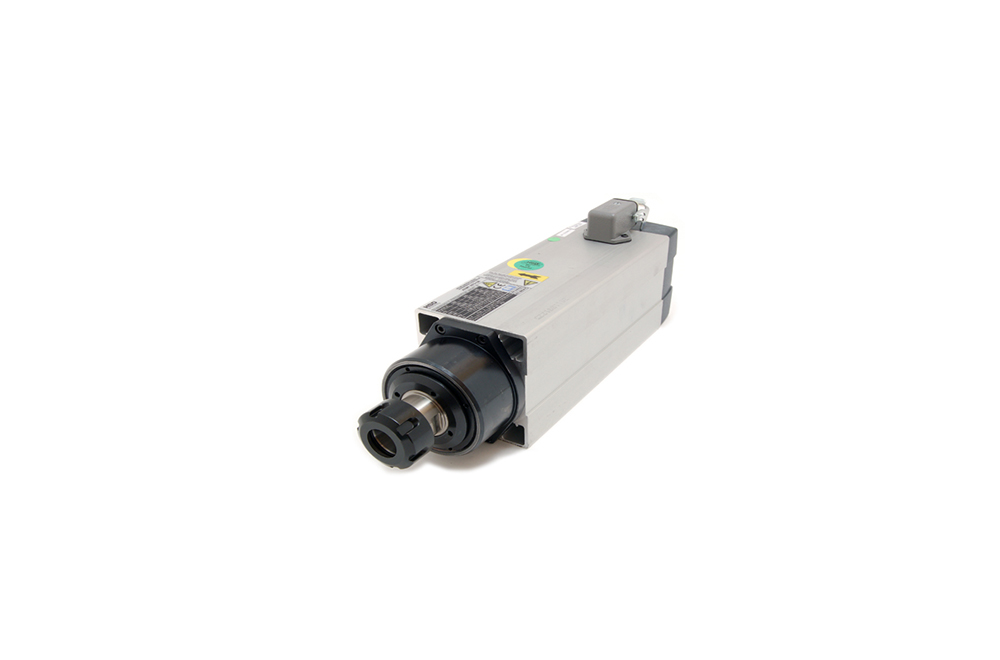

MT1073 - Y6162Y0006

Kw 1-S1/1,30-S6 - connection ER25 collet

12.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0006

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

MT1073 - Y6162Y0007

Kw 1,50-S1/1,80-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0007

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1073 - Y6162Y0041

Kw 1,50-S1/1,80-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0041

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1073 - Y6162Y0008

Kw 1,50-S1/1,80-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0008

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1073 - Y6162Y0009

Kw 1-S1/1,30-S6 - connection ER25 collet

12.000rpm - rated voltage 220V - right rotation

MT1073 - Y6162Y0009

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER25
Rated voltage: 220V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

MT1073 - Y6162Y0010

Kw 1,50-S1/1,80-S6 - connection ER25 collet

18.000rpm - rated voltage 220V - right rotation

MT1073 - Y6162Y0010

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,30Kw
Connection type: Collet ER25
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1073 - Y6162Y0011

Kw 1,50-S1/1,80-S6 - connection ER25 collet

18.000rpm - rated voltage 220V - right rotation

MT1073 - Y6162Y0011

TECHNICAL SPECIFICATIONS
Power S1/S6: 1,50Kw/1,80Kw
Connection type: Collet ER25
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1073 - Y6162Y0054

Kw 1,10-S1/1,38-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0054

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,38Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1073 - Y6162Y0047

Kw 1,10-S1/1,38-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0047

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,38Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1073 - Y6162Y0056

Kw 1,10-S1/1,38-S6 - connection ER25 collet

18.000rpm - rated voltage 220V - right rotation

MT1073 - Y6162Y0056

TECHNICAL SPECIFICATIONS
Power S1/S6: 1Kw/1,38Kw
Connection type: Collet ER25
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1073 - Y6162Y0012

Kw 2-S1/2,40-S6 - connection ER25 collet

12.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0012

TECHNICAL SPECIFICATIONS
Power S1/S6: 2Kw/2,40Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

MT1073 - Y6162Y0015

Kw 2-S1/2,40-S6 - connection ER25 collet

12.000rpm - rated voltage 220V - right rotation

MT1073 - Y6162Y0015

TECHNICAL SPECIFICATIONS
Power S1/S6: 2Kw/2,40Kw
Connection type: Collet ER25
Rated voltage: 220V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

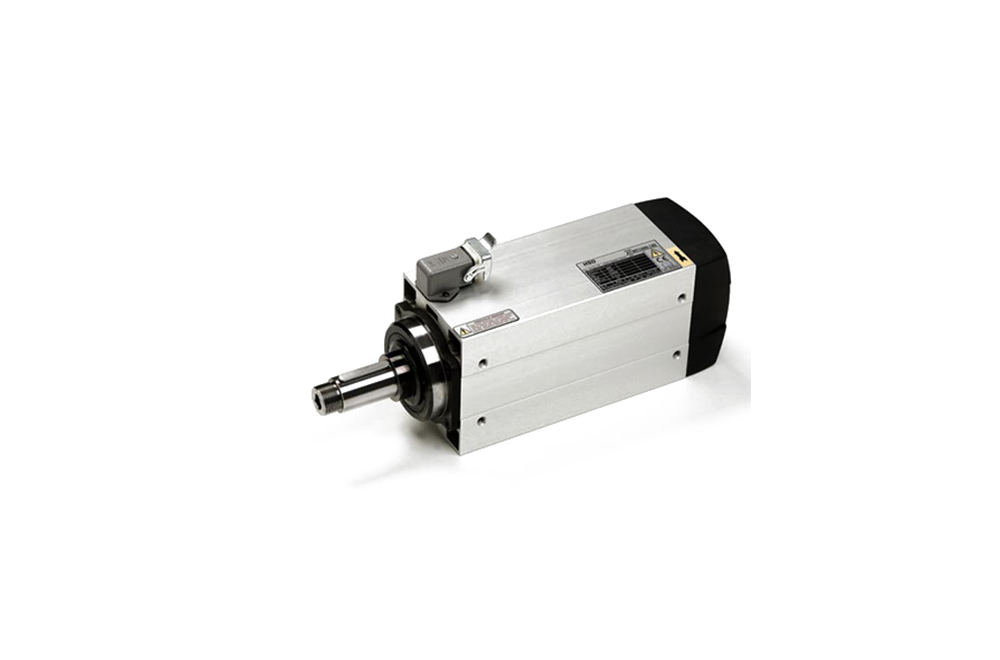

AT1073 - Y6164Y0007

Kw 0,42-S1/0,50-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1073 - Y6164Y0007

TECHNICAL SPECIFICATIONS
Power S1/S6: 0,42Kw/0,50Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

AT1073 - Y6164Y0009

Kw 0,75-S1/0,90-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1073 - Y6164Y0009

TECHNICAL SPECIFICATIONS
Power S1/S6: 0,75Kw/0,90Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

AT1073 - H6164H0013

Kw 0,80-S1/0,96-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1073 - H6164H0013

TECHNICAL SPECIFICATIONS
Power S1/S6: 0,80Kw/0,96Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

AT1073 - H6164H0012

Kw 1,00-S1/1,30-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1073 - H6164H0012

TECHNICAL SPECIFICATIONS
Power S1/S6: 1,00Kw/1,30Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

AT1073 - H6164H0011

Kw 2,00-S1/2,40-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1073 - H6164H0011

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,00Kw/2,40Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

AT1073 - H6164H0018

Kw 2,00-S1/2,40-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1073 - H6164H0018

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,00Kw/2,40Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

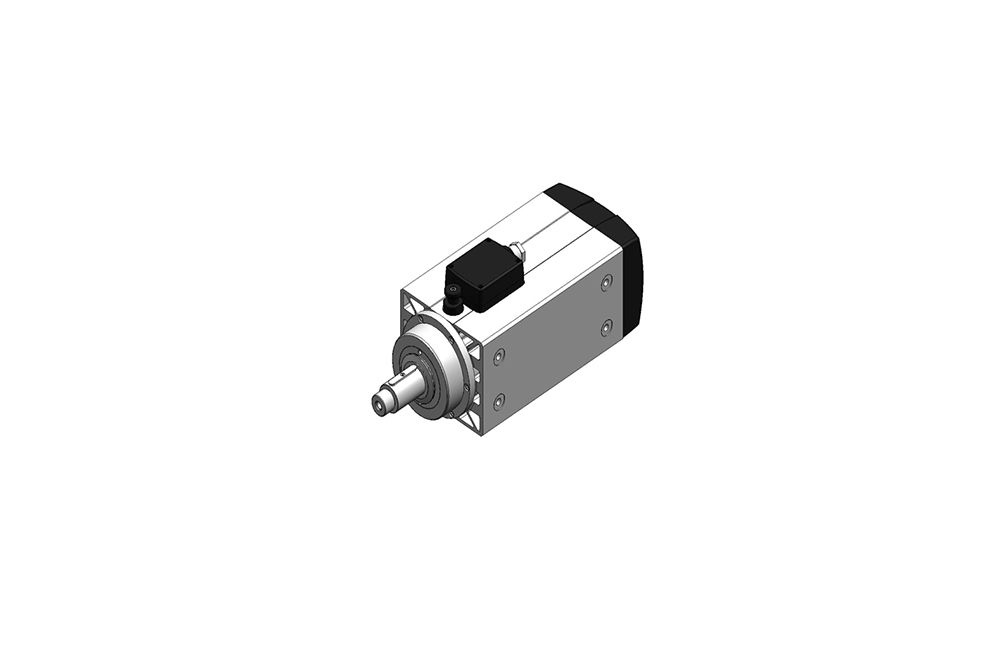

AT1055 - H6164H0015

Kw 0,65-S1/0,85-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1055 - H6164H0015

TECHNICAL SPECIFICATIONS
Power S1/S6: 0,65Kw/0,85Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

AT1055 - H6164H0022

Kw 0,65-S1/0,85-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1055 - H6164H0022

TECHNICAL SPECIFICATIONS
Power S1/S6: 0,65Kw/0,85Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

AT1055 - H6164H0020

Kw 0,65-S1/0,85-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1055 - H6164H0020

TECHNICAL SPECIFICATIONS
Power S1/S6: 0,65Kw/0,85Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

MT1073 - H6162H0133

Kw 3-S1/3,60-S6 - connection ER25 collet

24.000rpm - rated voltage 380V - right rotation - side fixing

MT1073 - H6162H0133

TECHNICAL SPECIFICATIONS
Power S1/S6: 3Kw/3,60Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right
Side fixing holes

MT1073 - Y6162Y0013

Kw 3-S1/3,60-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0013

TECHNICAL SPECIFICATIONS
Power S1/S6: 3Kw/3,60Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1073 - Y6162Y0069

Kw 3-S1/3,60-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - left rotation

MT1073 - Y6162Y0069

TECHNICAL SPECIFICATIONS
Power S1/S6: 3Kw/3,60Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Left

MT1073 - Y6162Y0014

Kw 3-S1/3,60-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0014

TECHNICAL SPECIFICATIONS
Power S1/S6: 3Kw/3,60Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1073 - Y6162Y0071

Kw 3-S1/3,60-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0071

TECHNICAL SPECIFICATIONS
Power S1/S6: 3Kw/3,60Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1073 - Y6162Y0016

Kw 3-S1/3,60-S6 - connection ER25 collet

18.000rpm - rated voltage 220V - right rotation

MT1073 - Y6162Y0016

TECHNICAL SPECIFICATIONS
Power S1/S6: 3Kw/3,60Kw
Connection type: Collet ER25
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1073 - Y6162Y0050

Kw 3-S1/3,60-S6 - connection ER25 collet

18.000rpm - rated voltage 220V - left rotation

MT1073 - Y6162Y0050

TECHNICAL SPECIFICATIONS
Power S1/S6: 3Kw/3,60Kw
Connection type: Collet ER25
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Left

MT1073 - Y6162Y0017

Kw 3-S1/3,60-S6 - connection ER25 collet

18.000rpm - rated voltage 220V - right rotation

MT1073 - Y6162Y0017

TECHNICAL SPECIFICATIONS
Power S1/S6: 3Kw/3,60Kw
Connection type: Collet ER25
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1073 - Y6162Y0057

Kw 2,10-S1/2,80-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0057

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,10Kw/2,80Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1073 - Y6162Y0034

Kw 2,10-S1/2,80-S6 - connection ER25 collet

18.000rpm - rated voltage 380V - right rotation

MT1073 - Y6162Y0034

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,10Kw/2,80Kw
Connection type: Collet ER25
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1073 - Y6162Y0058

Kw 2,10-S1/2,80-S6 - connection ER25 collet

18.000rpm - rated voltage 220V - right rotation

MT1073 - Y6162Y0058

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,10Kw/2,80Kw
Connection type: Collet ER25
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1073 - Y6162Y0040

Kw 2,10-S1/2,80-S6 - connection ER25 collet

18.000rpm - rated voltage 220V - right rotation

MT1073 - Y6162Y0040

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,10Kw/2,80Kw
Connection type: Collet ER25
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1090 - Y6162Y0018

Kw 3,50-S1/4,20-S6 - connection ER32 collet

12.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0018

TECHNICAL SPECIFICATIONS
Power S1/S6: 3,50Kw/4,20Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

MT1090 - Y6162Y0019

Kw 4,50-S1/5,40-S6 - connection ER32 collet

18.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0019

TECHNICAL SPECIFICATIONS
Power S1/S6: 4,50Kw/5,40Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1090 - Y6162Y0053

Kw 4,50-S1/5,40-S6 - connection ER32 collet

18.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0053

TECHNICAL SPECIFICATIONS
Power S1/S6: 4,50Kw/5,40Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1090 - Y6162Y0020

Kw 4,50-S1/5,40-S6 - connection ER32 collet

18.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0020

TECHNICAL SPECIFICATIONS
Power S1/S6: 4,50Kw/5,40Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1090 - Y6162Y0021

Kw 3,50-S1/4,20-S6 - connection ER32 collet

12.000rpm - rated voltage 220V - right rotation

MT1090 - Y6162Y0021

TECHNICAL SPECIFICATIONS
Power S1/S6: 3,50Kw/4,20Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

MT1090 - Y6162Y0022

Kw 4,50-S1/5,40-S6 - connection ER32 collet

18.000rpm - rated voltage 220V - right rotation

MT1090 - Y6162Y0022

TECHNICAL SPECIFICATIONS
Power S1/S6: 4,50Kw/5,40Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Righ

MT1090 - Y6162Y0023

Kw 4,50-S1/5,40-S6 - connection ER32 collet

18.000rpm - rated voltage 220V - right rotation

MT1090 - Y6162Y0023

TECHNICAL SPECIFICATIONS
Power S1/S6: 4,50Kw/5,40Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1090 - Y6162Y0059

Kw 2,50-S1/3,20-S6 - connection ER32 collet

18.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0059

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,50Kw/3,20Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1090 - Y6162Y0035

Kw 2,50-S1/3,20-S6 - connection ER32 collet

18.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0035

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,50Kw/3,20Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1090 - Y6162Y0060

Kw 2,50-S1/3,20-S6 - connection ER32 collet

18.000rpm - rated voltage 220V - right rotation

MT1090 - Y6162Y0060

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,50Kw/3,20Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1090 - Y6162Y0061

Kw 2,50-S1/3,20-S6 - connection ER32 collet

18.000rpm - rated voltage 220V - right rotation

MT1090 - Y6162Y0061

TECHNICAL SPECIFICATIONS
Power S1/S6: 2,50Kw/3,20Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1090 - Y6162Y0027

Kw 5,00-S1/6,00-S6 - connection ER32 collet

12.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0027

TECHNICAL SPECIFICATIONS
Power S1/S6: 5,00Kw/6,00Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

MT1090 - Y6162Y0030

Kw 5,00-S1/6,00-S6 - connection ER32 collet

12.000rpm - rated voltage 220V - right rotation

MT1090 - Y6162Y0030

TECHNICAL SPECIFICATIONS
Power S1/S6: 5,00Kw/6,00Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

MT1090 - Y6162Y0036

Kw 3,90-S1/5,10-S6 - connection ER32 collet

18.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0036

TECHNICAL SPECIFICATIONS
Power S1/S6: 3,90Kw/5,10Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1090 - Y6162Y0076

Kw 3,90-S1/5,10-S6 - connection ER32 collet

18.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0076

TECHNICAL SPECIFICATIONS
Power S1/S6: 3,90Kw/5,10Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1090 - Y6162Y0063

Kw 3,90-S1/5,10-S6 - connection ER32 collet

18.000rpm - rated voltage 220V - right rotation

MT1090 - Y6162Y0063

TECHNICAL SPECIFICATIONS
Power S1/S6: 3,90Kw/5,10Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1090 - Y6162Y0064

Kw 3,90-S1/5,10-S6 - connection ER32 collet

18.000rpm - rated voltage 220V - right rotation

MT1090 - Y6162Y0064

TECHNICAL SPECIFICATIONS
Power S1/S6: 3,90Kw/5,10Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

AT1090 - H6164H0014

Kw 5,00-S1/6,00-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1090 - H6164H0014

TECHNICAL SPECIFICATIONS
Power S1/S6: 5,00Kw/6,00Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

AT1090 - Y6164Y0022

Kw 5,00-S1/6,00-S6 - connection Keyed

12.000rpm - rated voltage 380V - right rotation

AT1090 - Y6164Y0022

TECHNICAL SPECIFICATIONS
Power S1/S6: 5,00Kw/6,00Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 12.000rpm
Rotation: Right

ES331 - H6162H0120

Kw 5,5-S1/6,6-S6 - ER25

18.000rpm - liquid cooling 380V - chrome body

ES331 - H6162H0120

TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6,6Kw
Tool Blocking manual tool-change
ER25
Ratered Voltage 380V
Poles 4
Bearings Front Steel
Bearings Rear Steel
Bearings grease lubrication
Max Rpm 18.000
Weight: 15,5
Spindle Body chromed Steel
Cooling Liquid

MT1090 - H6162H0104

Kw 6,0-S1/7,2-S6 - connection ER32 collet

18.000rpm - rated voltage 380V - left rotation

MT1090 - H6162H0104

TECHNICAL SPECIFICATIONS
Power S1/S6: 6,0Kw/7,2Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Left
Weight: 10kg

MT1090 - H6162H0105

Kw 6,0-S1/7,2-S6 - connection ER32 collet

18.000rpm - rated voltage 220V - left rotation

MT1090 - H6162H0105

TECHNICAL SPECIFICATIONS
Power S1/S6: 6,0Kw/7,2Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Left
Weight: 10kg

MT1090 - Y6162Y0028

Kw 6,00-S1/7,20-S6 - connection ER32 collet

18.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0028

TECHNICAL SPECIFICATIONS
Power S1/S6: 6,00Kw/7,20Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1090 - Y6162Y0029

Kw 6,00-S1/7,20-S6 - connection ER32 collet

18.000rpm - rated voltage 380V - right rotation

MT1090 - Y6162Y0029

TECHNICAL SPECIFICATIONS
Power S1/S6: 6,00Kw/7,20Kw
Connection type: Collet ER32
Rated voltage: 380V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1090 - Y6162Y0031

Kw 6,00-S1/7,20-S6 - connection ER32 collet

18.000rpm - rated voltage 220V - right rotation

MT1090 - Y6162Y0031

TECHNICAL SPECIFICATIONS
Power S1/S6: 6,00Kw/7,20Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1090 - Y6162Y0032

Kw 6,00-S1/7,20-S6 - connection ER32 collet

18.000rpm - rated voltage 220V - right rotation

MT1090 - Y6162Y0032

TECHNICAL SPECIFICATIONS
Power S1/S6: 6,00Kw/7,20Kw
Connection type: Collet ER32
Rated voltage: 220V
Rated speed: 18.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1090 - Y616109095

Kw 7,00 S1 - connection ER32 collet

14.000rpm - rated voltage 380/220V - right rotation

MT1090 - Y616109095

TECHNICAL SPECIFICATIONS

Power S1/S6: 7,00Kw
Connection type: Collet ER32
Rated voltage: 380/220V
Rated speed: 14.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1090 - Y616109094

Kw 7,00 S1 - connection ER32 collet

14.000rpm - rated voltage 380/220V - right rotation

MT1090 - Y616109094

TECHNICAL SPECIFICATIONS
Power S1/S6: 7,00Kw
Connection type: Collet ER32
Rated voltage: 380/220V
Rated speed: 14.000 rpm
Max speed: 24.000rpm
Rotation: Right

MT1120 - Y6164Y0018

Kw 5,80-S1/7,50-S6 - connection Keyed

6.000rpm - rated voltage 380V - right rotation

MT1120 - Y6164Y0018

TECHNICAL SPECIFICATIONS
Power S1/S6: 5,80Kw/7,50Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 6.000 rpm
Max speed: 6.000rpm
Rotation: Right

MT1120 - Y6164Y0019

Kw 5,80-S1/7,50-S6 - special connection

6.000rpm - rated voltage 380V - right rotation

MT1120 - Y6164Y0019

TECHNICAL SPECIFICATIONS
Power S1/S6: 5,80Kw/7,50Kw
Connection type: Special
Rated voltage: 380V
Rated speed: 6.000 rpm
Max speed: 6.000rpm
Rotation: Right

MT1120 - Y616112015

Kw 13,50 S1/16,20-S6 - connection ER40 collet

12.000rpm - rated voltage 380V - right rotation

MT1120 - Y616112015

TECHNICAL SPECIFICATIONS
Power S1/S6: 13,50Kw/16,20kW
Connection type: Collet ER40
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1120 - Y616112016

Kw 8,10 S1/9,70-S6 - connection ER40 collet

6.000rpm - rated voltage 380V - right rotation

MT1120 - Y616112016

TECHNICAL SPECIFICATIONS
Power S1/S6: 8,10Kw/9,70kW
Connection type: Collet ER40
Rated voltage: 380V
Rated speed: 6.000 rpm
Max speed: 6.000rpm
Rotation: Right

MT1090 - Y6162Y0066

Kw 8,50 S1 - connection ER32 collet

14.000rpm - rated voltage 220/380V - right rotation

MT1090 - Y6162Y0066

TECHNICAL SPECIFICATIONS
Power S1: 8,50Kw
Connection type: Collet ER32
Rated voltage: 220/380V
Rated speed: 14.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1120 - Y616112017

Kw 13,50 S1/16,20-S6 - connection ER40 collet

12.000rpm - rated voltage 380V - right rotation

MT1120 - Y616112017

TECHNICAL SPECIFICATIONS
Power S1/S6: 13,50Kw/16,20kW
Connection type: Collet ER40
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1120 - H6162H0122

Kw 13,50 S6 - ER40 collet

18.000rpm - 380V - right rotation

MT1120 - H6162H0122

TECHNICAL SPECIFICATIONS
Power S6: 13,50Kw
Connection type: Collet ER40
Rated voltage: 380V
Rated speed: 12.000 rpm
Max speed: 18.000rpm
Rotation: Right

MT1120 - Y6164Y0017

Kw 8,10-S1/9,50-S6 - connection Keyed

6.000rpm - rated voltage 380V - right rotation

MT1120 - Y6164Y0017

TECHNICAL SPECIFICATIONS
Power S1/S6: 8,10Kw/9,50Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 6.000 rpm
Max speed: 6.000rpm
Rotation: Right

MT1120 - Y6164Y0020

Kw 8,10-S1/9,50-S6 - special connection - 6.000rpm

rated voltage 380V - right rotation

MT1120 - Y6164Y0020

TECHNICAL SPECIFICATIONS
Power S1/S6: 8,10Kw/9,50Kw
Connection type: special
Rated voltage: 380V
Rated speed: 6.000 rpm
Max speed: 6.000rpm
Rotation: Right

MT1120 - Y6164Y0023

Kw 11,0-S1/13,5-S6 - connection Keyed

6.000rpm - rated voltage 380V - right rotation

MT1120 - Y6164Y0023

TECHNICAL SPECIFICATIONS
Power S1/S6: 11,0Kw/13,50Kw
Connection type: Keyed
Rated voltage: 380V
Rated speed: 6.000 rpm
Max speed: 6.000rpm

MT1120 - Y6164Y0024

Kw 11,0-S1/13,5-S6 - special connection

6.000rpm - rated voltage 380V - right rotation

MT1120 - Y6164Y0024

TECHNICAL SPECIFICATIONS
Power S1/S6: 11,0Kw/13,50Kw
Connection type: special
Rated voltage: 380V
Rated speed: 6.000 rpm
Max speed: 6.000rpm
Rotation: Right
