OVERVIEW
HSD offers a wide range of Electroheads and Motorspindles for Metal & Composite Alloys machining.
Manufactured by the thousand for a large number of applications, the Electrospindles for metal machinig features a vast range of powers and working speeds without foregoing high levels of reliability.
With Body Diameter from ø80mm to ø310mm, Electrospindles cover a very wide range, from the ES327 body diameter ø80mm/1Nm which is mainly used for finishing operations, to the ES518 body diameter ø310mm/410Nm used for milling applications; suitable rated torque ratios guarantee high machining precision and excellent performance.
The Encoder communicates very easily with the Numerical Control to allow precise torque, speed and position control.

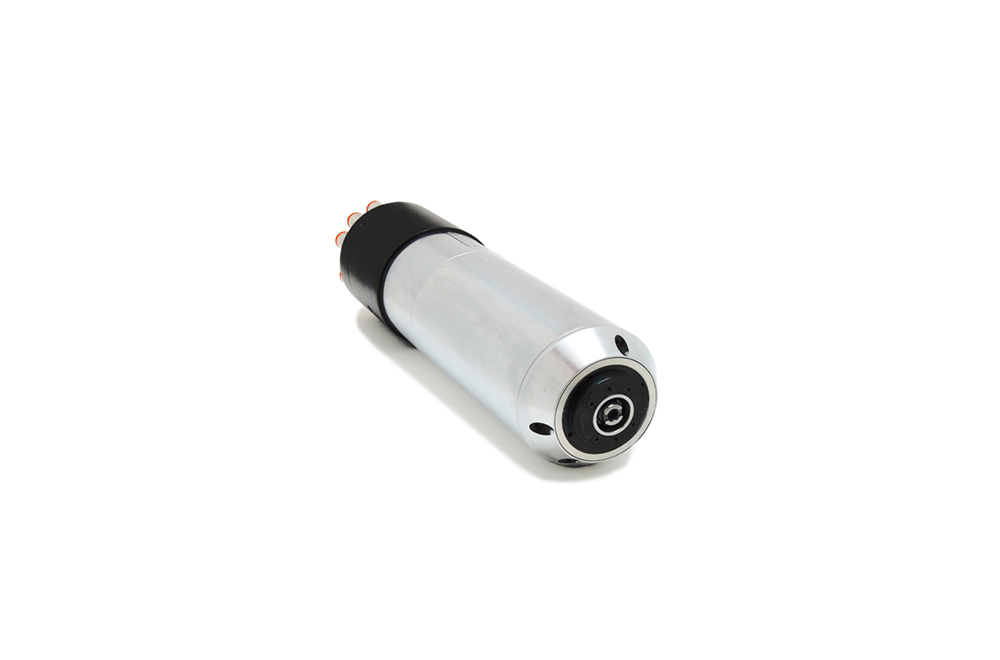

ES327 - H6161H1008
TECHNICAL SPECIFICATIONS
Diameter Ø80
Torque S1/S6 1/1,3Nm
Power S1/S6 3/3,6kW
HSK E25
Asynchronous
Automatic Pneumatic Tool Release
Rated Voltage 220V
Poles 4
Ceramic Bearings
Bearings Lubrication grease
Max Frequency 1667
Max Speed Rpm 50.000 grease
Rated Speed Rpm 27.000
Weight 8kg
Liquid Cooling
ES327 - H6161H1279
TECHNICAL SPECIFICATIONS
Diameter Ø80
Torque S1/S6 1/1,3Nm
Power S1/S6 3/3,6kW
HSK E25
Asynchronous
Automatic Pneumatic Tool Release
Rated Voltage 380V
Poles 4
Ceramic Bearings
Bearings Lubrication grease
Max Frequency 1333
Max Speed Rpm 50.000 grease
Rated Speed Rpm 27.000
Weight 8kg
Liquid Cooling
Special pressurization
ES327 - H6161H1007
TECHNICAL SPECIFICATIONS
Diameter Ø80
Torque S1/S6 1/1,3Nm
Power S1/S6 3/3,6kW
HSK E25
Asynchronous
Automatic Pneumatic Tool Release
Rated Voltage 380V
Poles 4
Ceramic Bearings
Bearings Lubrication grease
Max Frequency 1333
Max Speed Rpm 40.000 grease
Rated Speed Rpm 27.000
Weight 8kg
Liquid Cooling
ES327 - H6161H0759
TECHNICAL SPECIFICATIONS
Diameter Ø80
Torque S1/S6 1/1,3Nm
Power S1/S6 3/3,6kW
HSK E25
Asynchronous
Automatic Pneumatic Tool Release
Rated Voltage 380V
Poles 4
Ceramic Bearings
Bearings Lubrication grease
Max Frequency 1667
Max Speed Rpm 50.000 grease
Rated Speed Rpm 27.000
Weight 8kg
Liquid Cooling

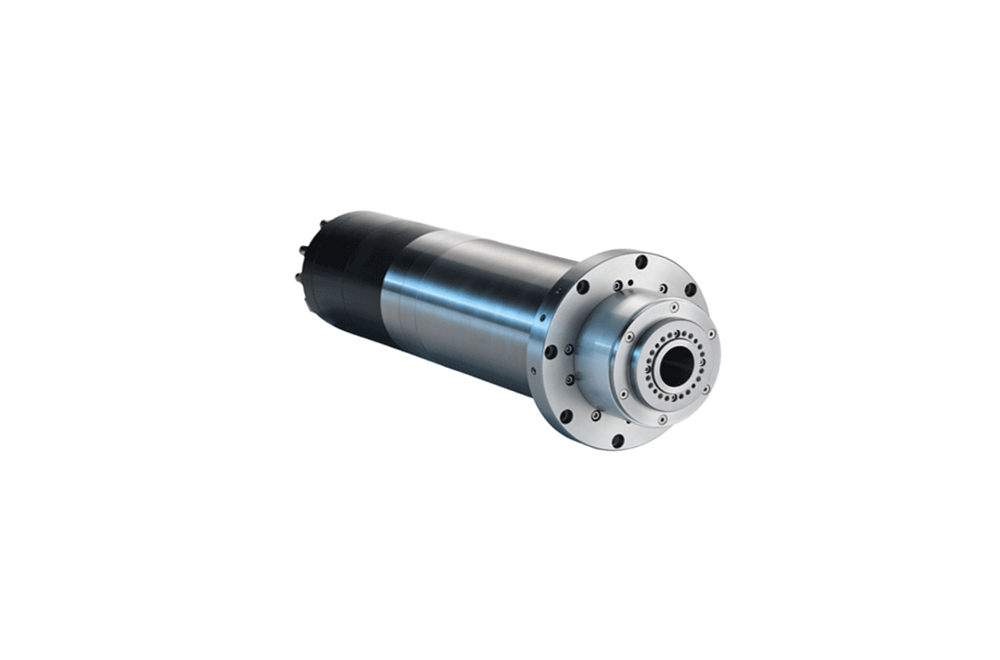

ES334 – H6161H1379
TECHNICAL SPECIFICATIONS
Diameter Ø120
Torque S1/S6 5,7/6,8Nm
Power S1/S6 3,6/4,3kW
BT30
Asynchronous
Automatic Hydraulic Tool Release
Rated Voltage 220V
Encoder LB 1Vpp
Poles 4
Ceramic Bearings
Bearings Lubrication air-oil
Max Frequency 1000
Max Speed Rpm 30.000 air-oil
Rated Speed Rpm 6.000
Weight 27kg
Liquid Cooling

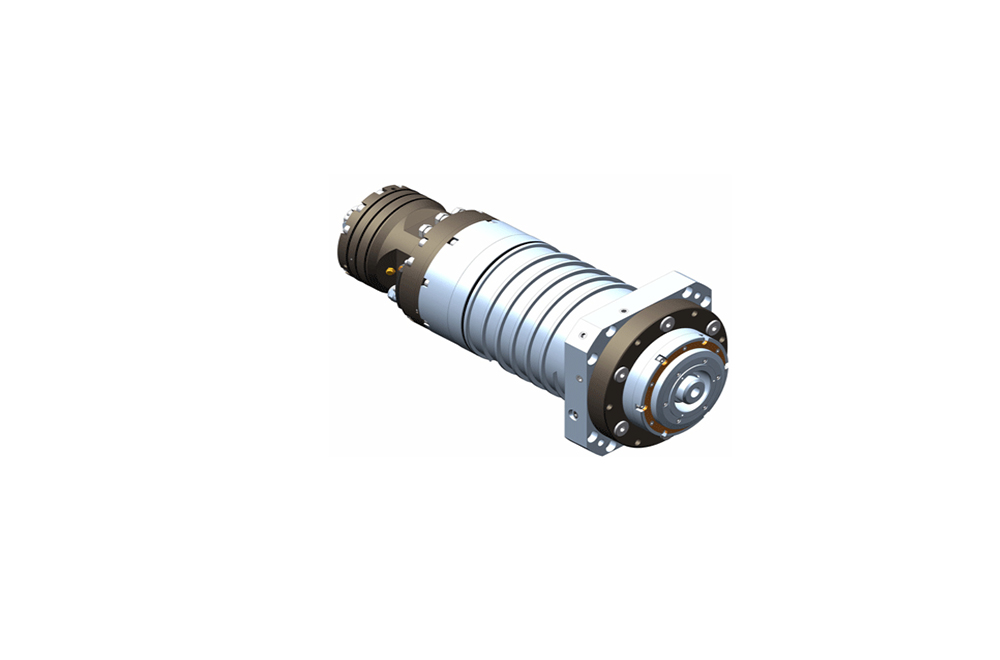

ES505 H6161H1755
TECHNICAL SPECIFICATIONS
HOUSING HST610
Diameter Ø140
Torque S1/S6 30/36Nm
Power S1/S6 25/30kW
HSK A63
Synchronous
Automatic Hydraulic Tool Release
Rated Voltage 536V
Encoder LB 1Vpp o TTL
Poles 6
Ceramic Bearings
Bearings Lubrication grease or air/oil
Max Frequency 1000/1200
Max Speed Rpm 20.000 grease / 24.000 air/oil
Rated Speed Rpm 8.000
Weight 34kg
Rotary Joint
Liquid Cooling
ES505 HT - H6161H1774
TECHNICAL SPECIFICATIONS
Diameter Ø140
Torque S1/S6 48/57,5Nm
Power S1/S6 40/48kW
HSK A63
Synchronous
Automatic Hydraulic Tool Release
Rated Voltage 491/592V
Encoder LB 1Vpp o TTL
Poles 6
Ceramic Bearings
Bearings Lubrication grease or air/oil
Max Frequency 1000/1200
Max Speed Rpm 20.000 grease / 24.000 air/oil
Rated Speed Rpm 8.000
Weight 37,5kg
Rotary Joint
Liquid Cooling

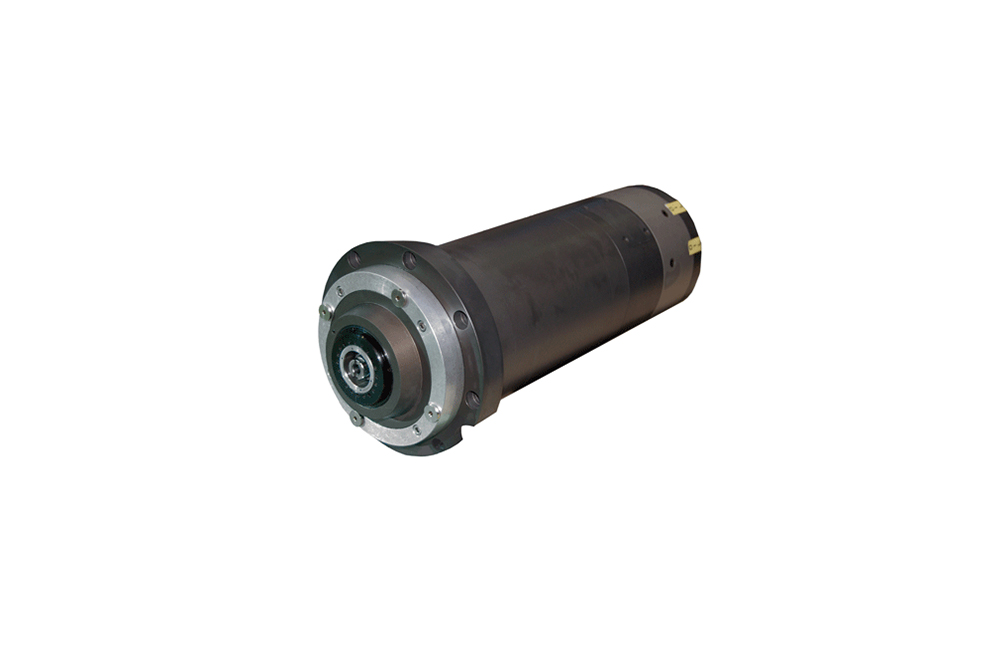

ES332 – H6161H1433
TECHNICAL SPECIFICATIONS
Diameter Ø150
Torque S1/S6 10,3/12,3Nm
Power S1/S6 13/15,6kW
HSK E40
Asynchronous
Automatic Hydraulic Tool Release
Rated Voltage 380V
Encoder LB 1Vpp o TTL
Poles 4
Ceramic Bearings
Bearings Lubrication air-oil
Max Frequency 1066
Max Speed Rpm 32.000 air-oil
Rated Speed Rpm 12.000
Weight 35kg
Liquid Cooling
ES332 – H6161H1432
TECHNICAL SPECIFICATIONS
Diameter Ø150
Torque S1/S6 10,3/12,4Nm
Power S1/S6 13/15,6kW
HSK E40
Asynchronous
Automatic Hydraulic Tool Release
Rated Voltage 380V
Encoder LB 1Vpp o TTL
Poles 4
Ceramic Bearings
Bearings Lubrication grease
Max Frequency 800
Max Speed Rpm 24.000 grease
Rated Speed Rpm 12.000
Weight 35kg
Liquid Cooling

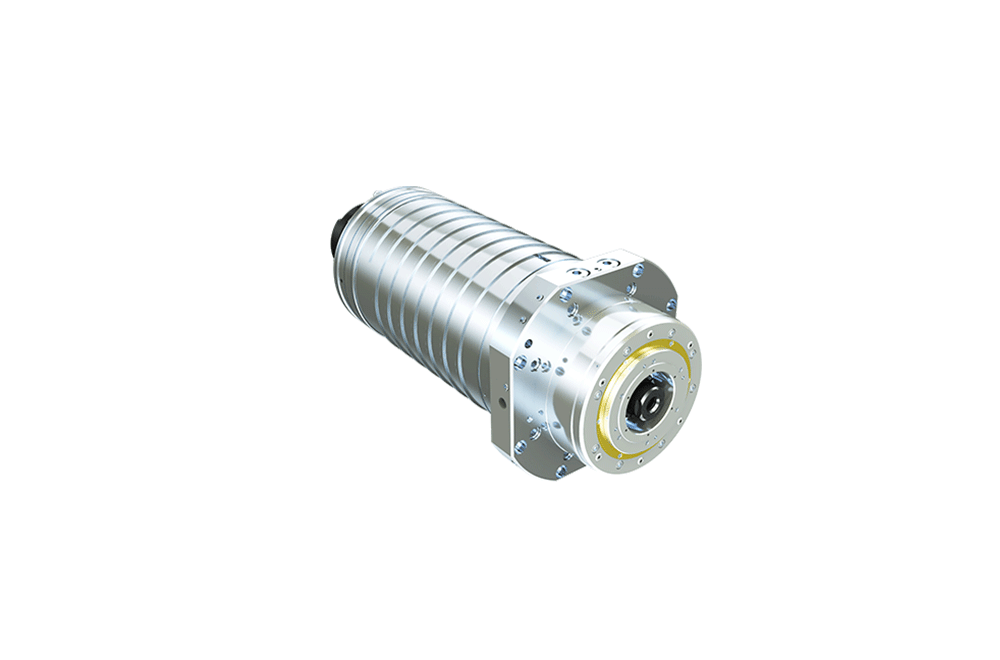

ES508 - H6161H1794
TECHNICAL SPECIFICATIONS
Body diameter: 170 mmTorque: 30/36 Nm
Power S1/S6: 25/30 kW
Motor Technology: synchronous
Tool Release: Hydraulic
Ratered Voltage: 536 V
Option encoder: LB 1 Vpp or TTL
Poles: 6
Front/Rear bearings: Ceramic
Bearings lubrication: grease/air-oil
Max Frequency: 1.200 Hz
Max speed: 18.000 grease 24.000 rpm air-oil
Rated Speed: 8.000 rpm
Weight: 55 kg
Option coolant Through Shaft: High Pressure
Cooling: Liquid

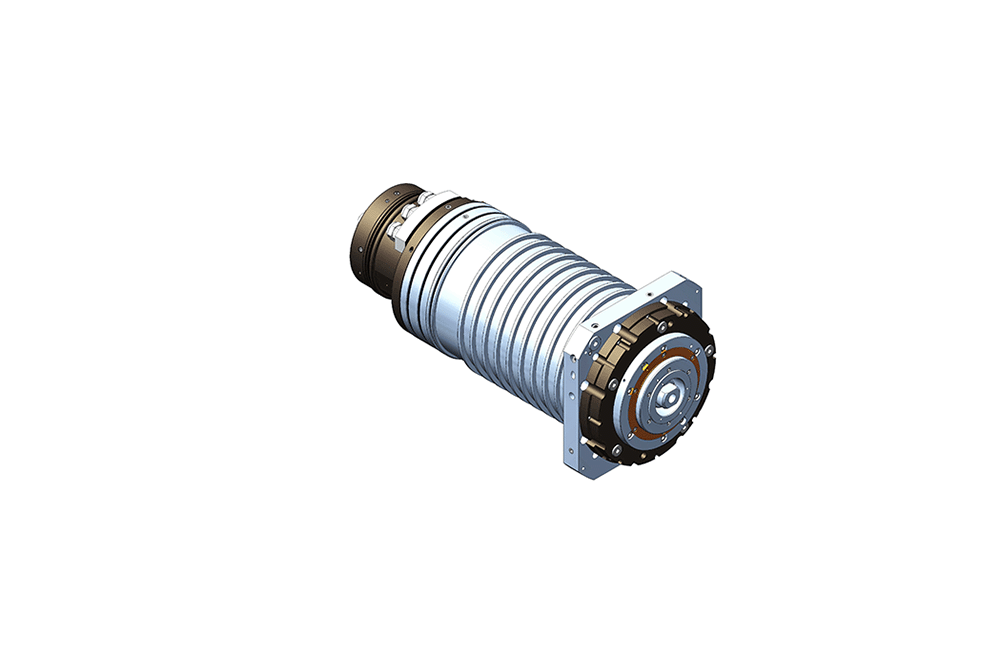

ES510 - H6161H1809
TECHNICAL SPECIFICATIONS
Power S1/S6: 24/28,8 kW
Motor Technology: asynchronous
Tool Release: Hydraulic
Ratered Voltage: 380 V
Option encoder: LB 1 Vpp or TTL
Poles: 6
Front/Rear bearings: Ceramic
Bearings lubrication: grease or air-oil
Max Frequency: 900/1200 Hz
Max speed: 18.000 rpm grease; 24.000 air-oil
Rated Speed: 6.000 rpm
Weight: 65 kg
Option coolant Through Shaft: High Pressure
Cooling: Liquid
ES510 - H6161H1699
TECHNICAL SPECIFICATIONS
Power S1/S6: 30/36 kW
Motor Technology: asynchronous
Tool Release: Hydraulic
Ratered Voltage: 380 V
Option encoder: LB 1 Vpp or TTL
Poles: 6
Front/Rear bearings: Ceramic
Bearings lubrication: grease or air-oil
Max Frequency: 900/1200 Hz
Max speed: 18.000 rpm grease; 24.000 air-oil
Rated Speed: 6.000 rpm
Weight: 65 kg
Option coolant Through Shaft: High Pressure
Cooling: Liquid
ES510 - H616H1937
TECHNICAL SPECIFICATIONS
Body diameter: 180 mmTorque: 55,7/75,2 Nm
Power S1/S6: 70/94,5 kW
Motor Technology: synchronous
Tool Release: Hydraulic
Ratered Voltage: 477 V
Option encoder: LB 1 Vpp or TTL
Poles: 4
Front/Rear bearings: Ceramic
Bearings lubrication: air-oil
Max Frequency: 933 Hz
Max speed: 28.000 rpm
Rated Speed: 12.000 rpm
Weight: 65 kg
Option coolant Through Shaft: High Pressure
Cooling: Liquid
ES510 - H6161H2060
TECHNICAL SPECIFICATIONS
Diameter Ø180
Torque S1/S6 67/87,5 Nm
Power S1/S6 42/55 kW
HSK A63
Synchronous
Automatic Hydraulic Tool Release
Rated Voltage 482/566V
Encoder LB 1Vpp o TTL
Poles 4
Ceramic Bearings
Bearings Lubrication grease or air/oil
Max Frequency 600/800
Max Speed Rpm 18.000 grease / 24.000 air/oil
Rated Speed Rpm 6.000
Weight 65kg
Rotary Joint
Liquid Cooling
ES510 - HSK
TECHNICAL SPECIFICATIONS
Body diameter: 180 mmTorque: 90/120 Nm
Power S1/S6: 50/67,5 kW
Motor Technology: synchronous
Tool Release: hydraulic
Ratered Voltage: 616 V
Option encoder: LB 1 Vpp or TTL
Poles: 6
Front/Rear bearings: ceramic
Bearings lubrication: grease or air-oil
Max Frequency: 1000 Hz
Max speed: 20.000 rpm
Rated Speed: 5.300 rpm
Weight: 65 kg
Option coolant Through Shaft: High Pressure
Cooling: Liquid
ES510 - H6161H17
TECHNICAL SPECIFICATIONS
Diameter Ø180
Torque S1/S6 95,5/124Nm
Power S1/S6 50/65kW
HSK A100
Synchronous
Automatic Hydraulic Tool Release
Rated Voltage 474/540V
Encoder LB 1Vpp o TTL
Poles 6
Ceramic Bearings
Bearings Lubrication grease or air/oil
Max Frequency 600/750
Max Speed Rpm 12.000 grease / 15.000 air/oil
Rated Speed Rpm 5.000
Weight 80kg
Rotary Joint
Liquid Cooling

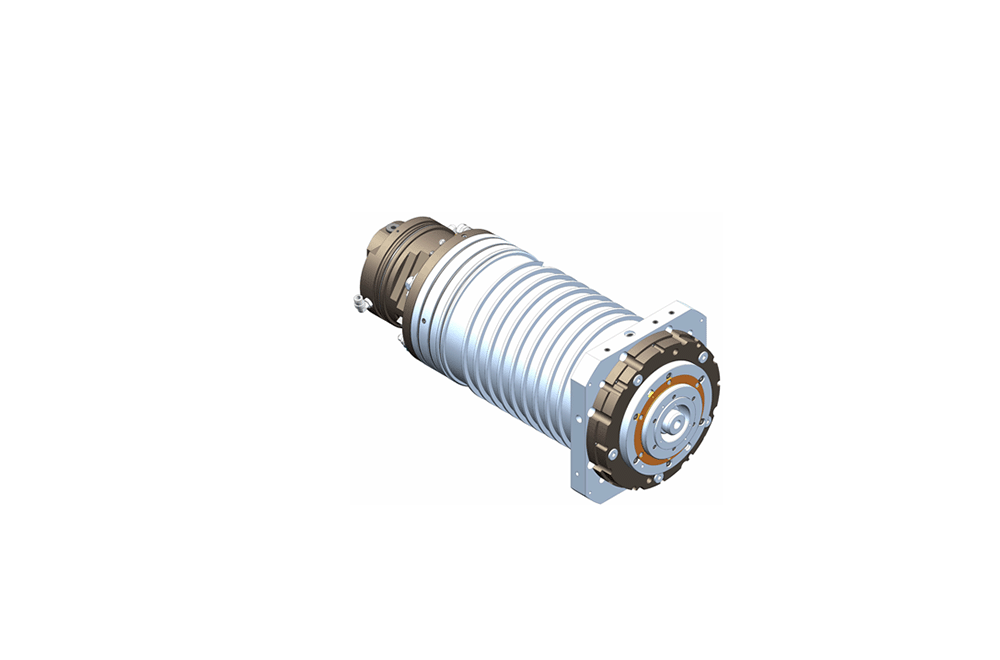

ES511 - H6161H1530
TECHNICAL SPECIFICATIONS
Diameter Ø190
Torque S1/S6 95,5/124Nm
Power S1/S6 50/65kW
ISO50
Synchronous
Automatic Hydraulic Tool Release
Rated Voltage 540V
Encoder LB 1Vpp o TTL
Poles 6
Ceramic Bearings
Bearings Lubrication grease or air/oil
Max Frequency 600/750
Max Speed Rpm 12.000 grease / 15.000 air/oil
Rated Speed Rpm 5.000
Weight 95kg
Rotary Joint
Liquid Cooling
ES511 ISO50 - H6161H1835
TECHNICAL SPECIFICATIONS
Diameter Ø190
Torque S1/S6 150/202Nm
Power S1/S6 47/63kW
ISO50
Synchronous
Automatic Hydraulic Tool Release
Rated Voltage 567V
Encoder LB 1Vpp o TTL
Poles 8
Ceramic Bearings
Bearings Lubrication grease or air/oil
Max Frequency 533
Max Speed Rpm 8.000 grease 13.00 air-oil
Rated Speed Rpm 3.000
Weight 80kg
Rotary Joint
Liquid Cooling
ES511 - H6161H1642
TECHNICAL SPECIFICATIONS
Diameter Ø190
Torque S1/S6 200/241 Nm
Power S1/S6 63/76 kW
HSK A100
Synchronous
Automatic Hydraulic Tool Release
Rated Voltage 615V
Encoder LB 1Vpp o TTL
Poles 8
Ceramic Bearings
Bearings Lubrication grease or air/oil
Max Frequency 800/866
Max Speed Rpm 12.000 grease / 13.000 air-oil
Rated Speed Rpm 3.000
Weight 105kg
Rotary Joint
Liquid Cooling
ES550 - H6161H1685
TECHNICAL SPECIFICATIONS
Diameter Ø210
Torque S1/S6 124/149Nm
Power S1/S6 26/31kW
HSK A63
Asynchronous
Automatic Hydraulic Tool Release
Rated Voltage 380V
Encoder LB 1Vpp o TTL
Poles 8
Ceramic Bearings
Bearings Lubrication grease
Max Frequency 1200
Max Speed Rpm 18.000 grease
Rated Speed Rpm 2.000
Weight 110kg
Rotary Joint
Liquid Cooling

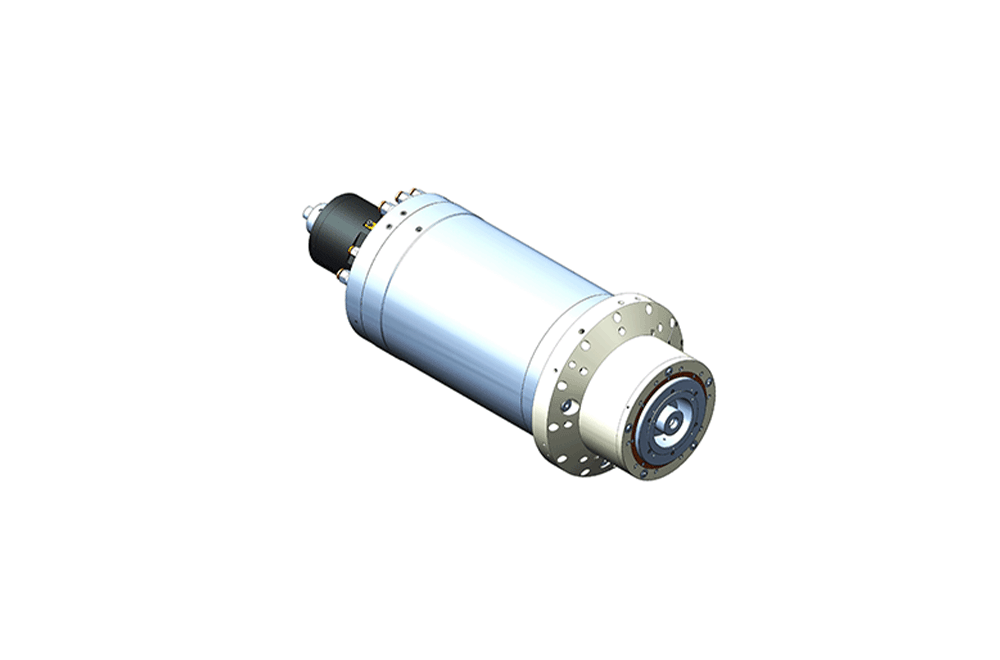

ES575 HSK A63
TECHNICAL SPECIFICATIONS
Body diameter: 230 mmTorque: 53/64 Nm
Power S1/S6: 100/120 kW
Motor Technology: Asynchronous
Tool Release: hydraulic
Ratered Voltage: 380 V
Option encoder: LB 1 Vpp or TTL
Poles: 4
Front/Rear bearings: ceramic
Bearings lubrication: air-oil
Max Frequency: 1000 Hz
Max speed: 30000 rpm
Rated Speed: 18000 rpm
Weight: 120 kg
Option coolant Through Shaft: High Pressure
Cooling: Liquid
ES575 HSK-A63 - H6161H1600
TECHNICAL SPECIFICATIONS
Diameter Ø230
Torque S1/S6 61,7/74Nm
Power S1/S6 35/42kW
HSK A63
Asynchronous
Automatic Hydraulic Tool Release
Rated Voltage 380V
Encoder LB 1Vpp o TTL
Poles 4
Ceramic Bearings
Bearings Lubrication grease or air/oil
Max Frequency 600/800
Max Speed 18.000 grease / 24.000 air-oil rpm
Rated Speed 5.400 rpm
Weight 120kg
Rotary Joint
Liquid Cooling
ES575 HSK-A63
TECHNICAL SPECIFICATIONS
Diameter Ø230
Torque Y S1/S6 72/87Nm
Torque Δ S1/S6 34,5/41,5Nm
Power YΔ S1/S6 25/30kW
HSK A63
Asynchronous
Automatic Hydraulic Tool Release
Rated Voltage 380V
Encoder LB 1Vpp o TTL
Poles 4
Ceramic Bearings
Bearings Lubrication air/oil
Max Frequency 800
Max Speed Rpm 24.000
Rated Speed Rpm 3.300 Y / 6.900 Δ
Weight 120kg
Rotary Joint
Liquid Cooling
ES575 BT40 - H6161H1449
TECHNICAL SPECIFICATIONS
Diameter Ø230
Torque S1/S6 95,5/114,5Nm
Power S1/S6 30/36kW
BT40/ISO40
Asynchronous
Automatic Hydraulic Tool Release
Rated Voltage 380V
Encoder LB 1Vpp o TTL
Poles 8
Ceramic Bearings
Bearings Lubrication grease or air/oil
Max Frequency 1067
Max Speed Rpm 16.000 grease or air-oil
Rated Speed Rpm 3.000
Weight 120kg
Rotary Joint
Liquid Cooling
ES575 HSK A100
TECHNICAL SPECIFICATIONS
Body diameter: 230 mmTorque: 170/216 Nm
Power S1/S6: 54/68 kW
Motor Technology: Asynchronous
Tool Release: hydraulic
Ratered Voltage: 380 V
Option encoder: LB 1 Vpp or TTL
Poles: 8
Front/Rear bearings: ceramic
Bearings lubrication: air-oil
Max Frequency: 667 Hz
Max speed: 30000 rpm
Rated Speed: 18000 rpm
Weight: 120 kg
Option coolant Through Shaft: High Pressure
Cooling: Liquid
ES514 - H6161H2056
TECHNICAL SPECIFICATIONS
Body diameter: 230 mmTorque: 191/229 Nm
Power S1/S6: 34/41 kW
Motor Technology: Asynchronous
Tool Release: hydraulic
Ratered Voltage: 400 V
Option encoder: LB 1 Vpp or TTL
Poles: 8
Front/Rear bearings: ceramic
Bearings lubrication: grease
Max Frequency: 667 Hz
Max speed: 10000 rpm
Rated Speed: 1700 rpm
Weight: 160 kg
Option coolant Through Shaft: High Pressure
Cooling: Liqui
ES518 - H6161H2014
TECHNICAL SPECIFICATIONS
Body diameter: 310 mmTorque: 298/358 Nm
Power S1/S6: 20/24 kW
Motor Technology: Asynchronous
Tool Release: hydraulic
Ratered Voltage: 380 V
Option encoder: LB 1 Vpp or TTL
Poles: 6
Front/Rear bearings: ceramic
Bearings lubrication: grease
Max Frequency: 150 Hz
Max speed: 3000 rpm grease
Rated Speed: 640 rpm
Weight: 240 kg
Option coolant Through Shaft: High Pressure
Cooling: Liquid
ES518 - H6161H1994
TECHNICAL SPECIFICATIONS
Body diameter: 310 mmTorque: 410/493 Nm
Power S1/S6: 43/51,6 kW
Motor Technology: Asynchronous
Tool Release: hydraulic
Ratered Voltage: 380 V
Option encoder: LB 1 Vpp or TTL
Poles: 6
Front/Rear bearings: ceramic
Bearings lubrication: air-oil
Max Frequency: 400 Hz
Max speed: 8000 rpm
Rated Speed: 1000 rpm
Weight: 270 kg
Option coolant Through Shaft: High Pressure
Cooling: Liquid
