OVERVIEW
ELECTROSPINDLES ES950 / ES951 E-CORE WI-FI
WORLD FIRST WI-FI CONNECTED ELECTROSPINDLE – PATENT PENDING
HSD Spa introduces the World first Wi-Fi connected Electrospindle, a true 4.0 innovation that will drastically improve the methods of setting, monitoring and maintenance of one of the most important CNC Machine components.
By using a dedicated App, it will be possible to set up a direct smart communication with the Electrospindle using the most common mobile devices.

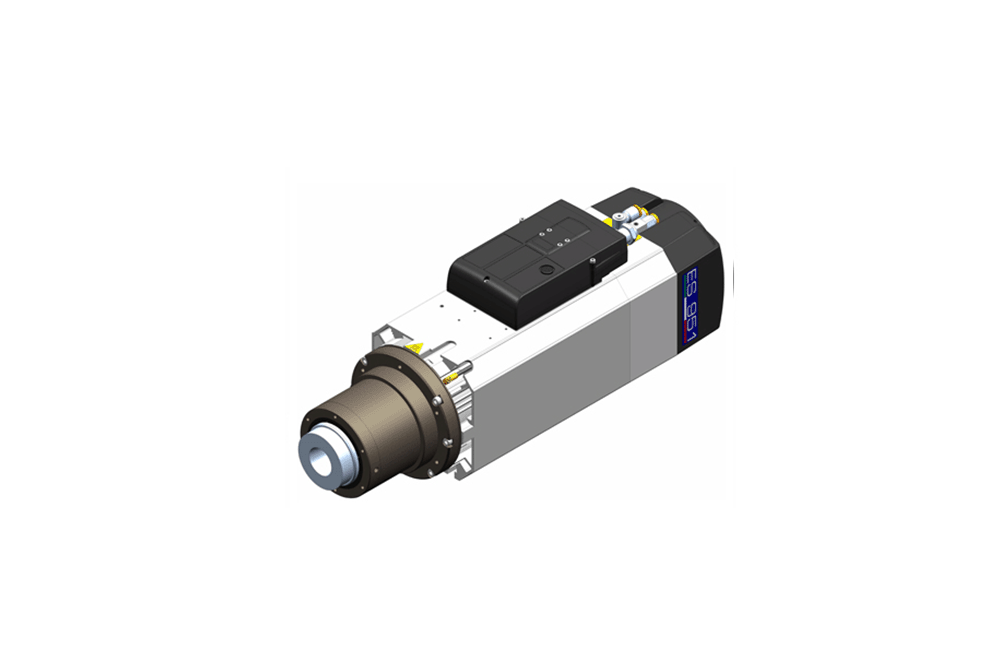

ES951 - Kw 6,0-S1/7,2-S6
TECHNICAL SPECIFICATIONS
Power S1/S6 6,0Kw/7,2Kw
Torque S1/S6 9,5Nm/11,5Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version

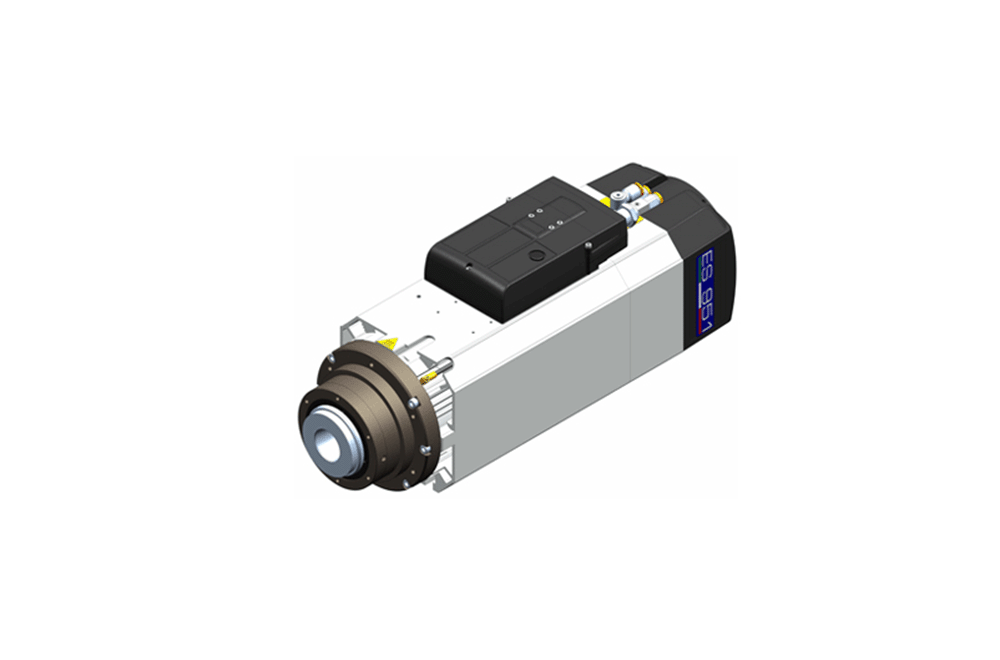

ES951 - Kw 6,0-S1/7,2-S6
TECHNICAL SPECIFICATIONS
Power S1/S6 6,0Kw/7,2Kw
Torque S1/S6 9,5Nm/11,5Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 30kg
Electric fan 24V
Digitale or Fieldbus version

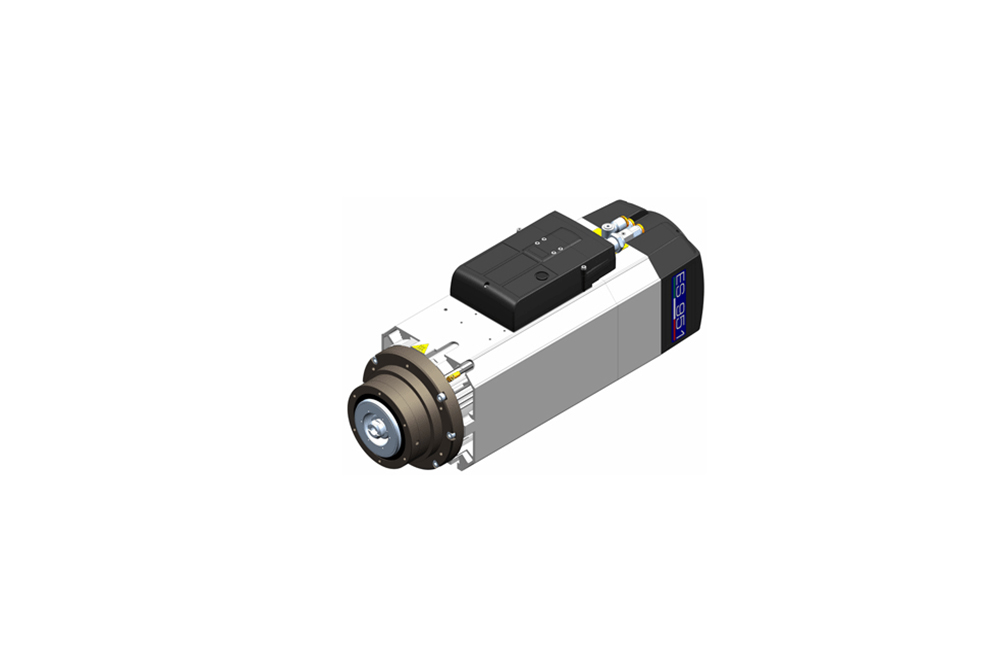

ES951 - Kw 6,0-S1/7,2-S6
TECHNICAL SPECIFICATIONS
Power S1/S6 6,0Kw/7,2Kw
Torque S1/S6 9,5Nm/11,5Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version

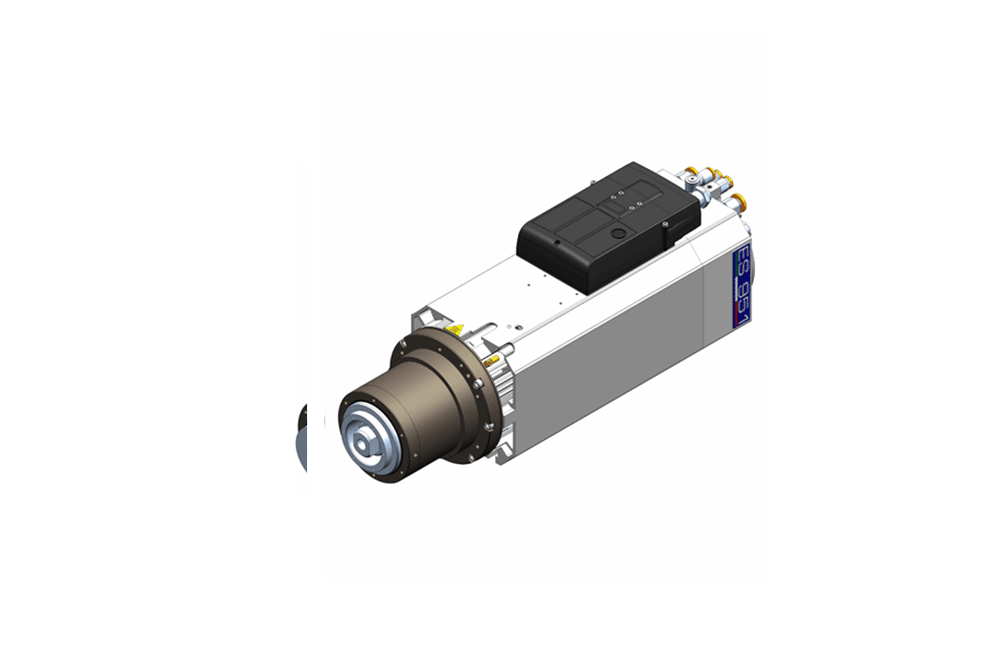

ES951 - Kw 6,0-S1/7,2-S6 - ISO30
electric fan - long nosemax speed 24.000rpm - rated speed 6.000rpm
ES951 - Kw 6,0-S1/7,2-S6 - ISO30
TECHNICAL SPECIFICATIONS
ES951 - KW 6,0-S1/7,2-S6 - ISO30 - ELECTRIC FAN - LONG NOSE
TECHNICAL SPECIFICATIONS
Power S1/S6 6,0Kw/7,2Kw
Torque S1/S6 9,5Nm/11,5Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version

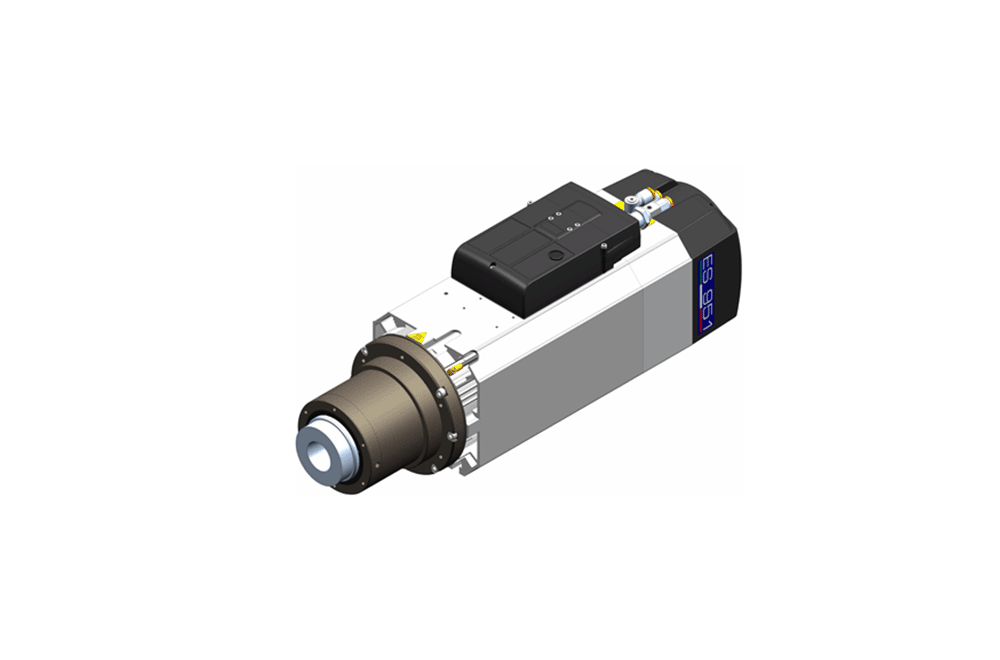

ES951 - Kw 8,0-S1/9,6-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 8,0Kw/9,6Kw
Torque S1/S6 6,4Nm/7,6Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 8,0-S1/9,6-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 8,0Kw/9,6Kw
Torque S1/S6 6,4Nm/7,6Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 8,0-S1/9,6-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 8,0Kw/9,6Kw
Torque S1/S6 6,4Nm/7,6Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 8,0-S1/9,6-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 8,0Kw/9,6Kw
Torque S1/S6 6,4Nm/7,6Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 8,5-S1/10,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 8,5Kw/10,2Kw
Torque S1/S6 13,5Nm/16,2Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 8,5-S1/10,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 8,5Kw/10,2Kw
Torque S1/S6 13,5Nm/16,2Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 8,5-S1/10,2-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 8,5Kw/10,2Kw
Torque S1/S6 13,5Nm/16,2Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 10-S1/12-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Torque S1/S6 15,9Nm/19Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 29kg
Liquid
Digitale or Fieldbus version
ES951 - Kw 10-S1/12-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Torque S1/S6 15,9Nm/19Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 30kg
Liquid
Digitale or Fieldbus version
ES951 - Kw 11-S1/13,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,2Kw
Torque S1/S6 8,7Nm/10,5Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 11-S1/13,2-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,2Kw
Torque S1/S6 8,7Nm/10,5Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus versio
ES951 - Kw 11-S1/13,2-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,2Kw
Torque S1/S6 8,7Nm/10,5Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 16-S1/19,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 16Kw/19,2Kw
Torque S1/S6 12,7Nm/15,3Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 30kg
Liquid
Digitale or Fieldbus version
ES951 - Kw 16-S1/19,2-S6 - HSK E63
TECHNICAL SPECIFICATIONS
Power S1/S6 16Kw/19,2Kw
Torque S1/S6 19Nm/22,8Nm
HSK E63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 18.000rpm
Rated Speed 8.000rpm
Weight 30kg
Liquid
Digitale or Fieldbus version
ES951 - Kw 25-S1/30-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 25Kw/30Kw
Torque S1/S6 23,9Nm/28,6Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 18.000rpm
Rated Speed 10.000rpm
Weight 30kg
Liquid
Digitale or Fieldbus version
ES951 - Kw 25-S1/30-S6 - HSK E63
TECHNICAL SPECIFICATIONS
Power S1/S6 25Kw/30Kw
Torque S1/S6 23,9Nm/28,6Nm
HSK E63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 18.000rpm
Rated Speed 10.000rpm
Weight 30kg
Liquid
Digitale or Fieldbus version
