2 AXIS HEADS

CATEGORY: ALUMUNIUM / PLASTICS LINE
Back Enquire

OVERVIEW

The Electroheads represent the most recent example of innovation combined with technology, with numerous choices of single or double-side structures (fork-type). Of particular interest is the range of Electrospindles available with power ratings ranging from 4kW up to 50kW with speeds up to 50,000rpm.
DOWNLOAD CATALOGUE.

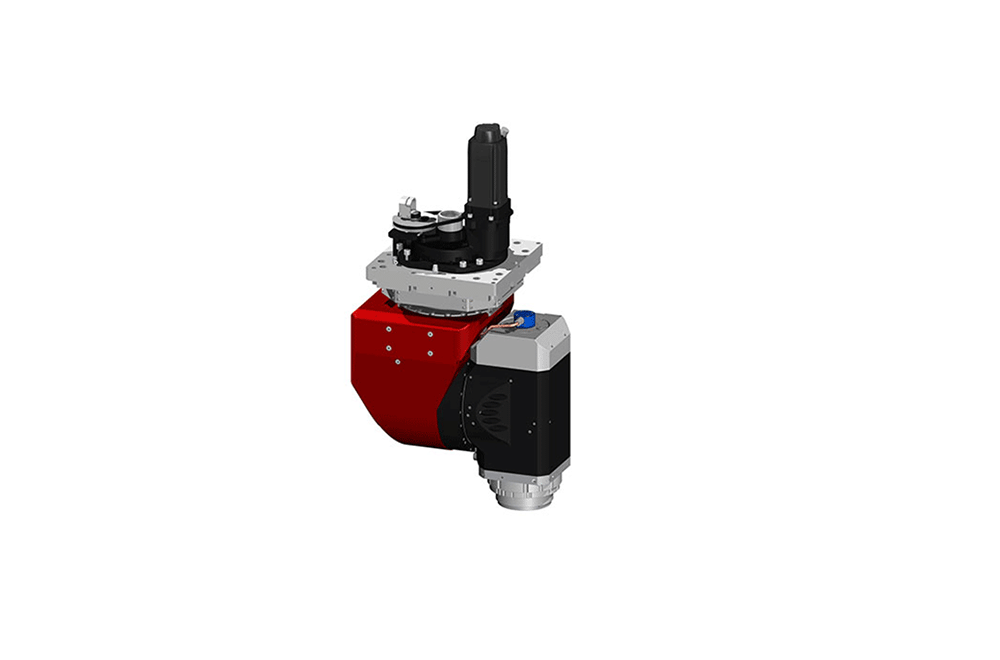

HS300D

Rot. Axes A/C ±120°/±220°

(Option ±240°)-55kg~

HS300D

TECHNICAL SPECIFICATIONS
HSD Axis Motorors.
A Axis max torque: 270Nm; 480Nm
C Axis stall/ Max torque C: 270Nm; 480Nm
Clamping torque Axes brakes A; C: -
Max speed Axes A; C: 75°/sec; 75°/sec**
Measuring system accuracy A;C: 60 arcsec; 60 arcsec
A;C Axes rotation: ±120°; ±220°(option ±240°)
A;C Axes endless rotation (Slip Ring): no; option*
Axis encoder: -
Axes Brakes: -
Weight: ~55kg

*Only without Electrospindles Encoder

SPINDLES AVAILABLE

ES368 HSK F63
Torque S1-S6: 5,6Nm/6,9Nm Asyn; 8,7kW/10,3kW Synch
Power S1-S6: 7/8,7kW Asyn; 11/13kW Synch
Max Speed: 20.000 Grease (S1 7kW); 24.000 Grease (S1 11kW)
Rated Speed: 12.000 rpm
Spindle Encoder: TTL/sincos

ES368 HSK E40
Torque S1-S6: 3,4Nm/4,1Nm Asyn
Power S1-S6: 6,5/7,8kW Asyn
Max Speed: 36.000 Grease
Rated Speed: 18.000 rpm
Spindle Encoder: TTL/sincos

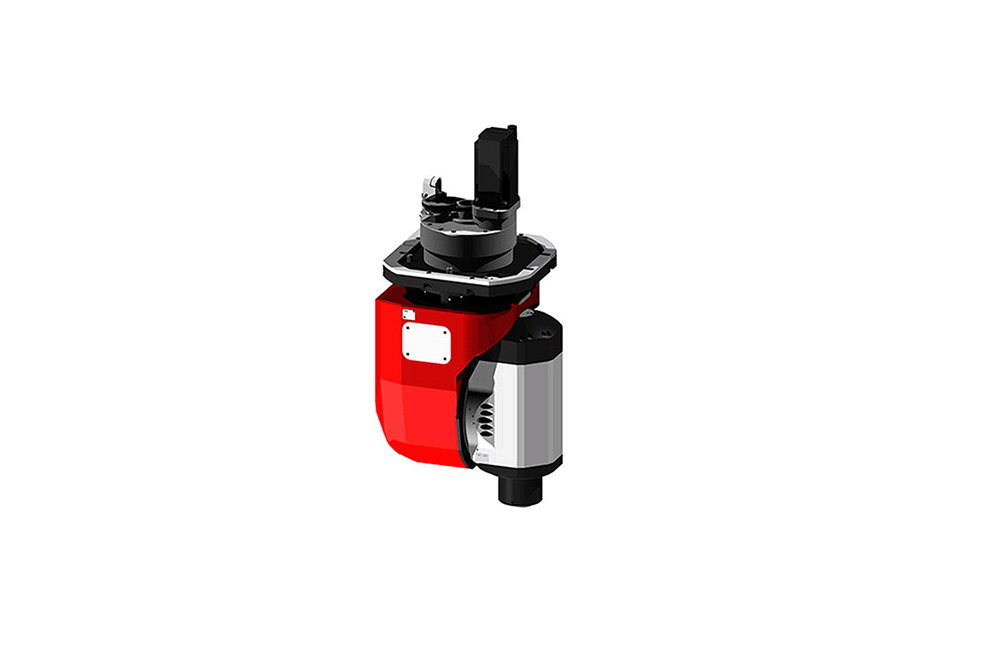

HS300C

Rot. Axes A/C endless

endless-90kg~

HS300C

TECHNICAL SPECIFICATIONS
HSD Axis Motorors.
A Axis max torque: 270Nm; 480Nm
C Axis stall/ Max torque C: 270Nm; 480Nm
Clamping torque Axes brakes A; C: -
Max speed Axes A; C: 89°/sec; 89°/sec**
Measuring system accuracy A;C: 60 arcsec; 60 arcsec
A;C Axes rotation: endless;endless
A;C Axes endless rotation (Slip Ring): yes; option
Axis encoder: -
Axes Brakes: -
Weight: ~90kg

**Values depend on the servomotor chosen

SPINDLES AVAILABLE

ES369 HSK F63
Torque S1-S6: 5,6Nm/6,9Nm Asyn; 8,7kW/10,3kW Synch
Power S1-S6: 7/8,7kW Asyn; 11/13kW Synch
Max Speed: 20.000 Grease (S1 7kW); 24.000 Grease (S1 11kW)*****
Rated Speed: 12.000 rpm
Spindle Encoder: -

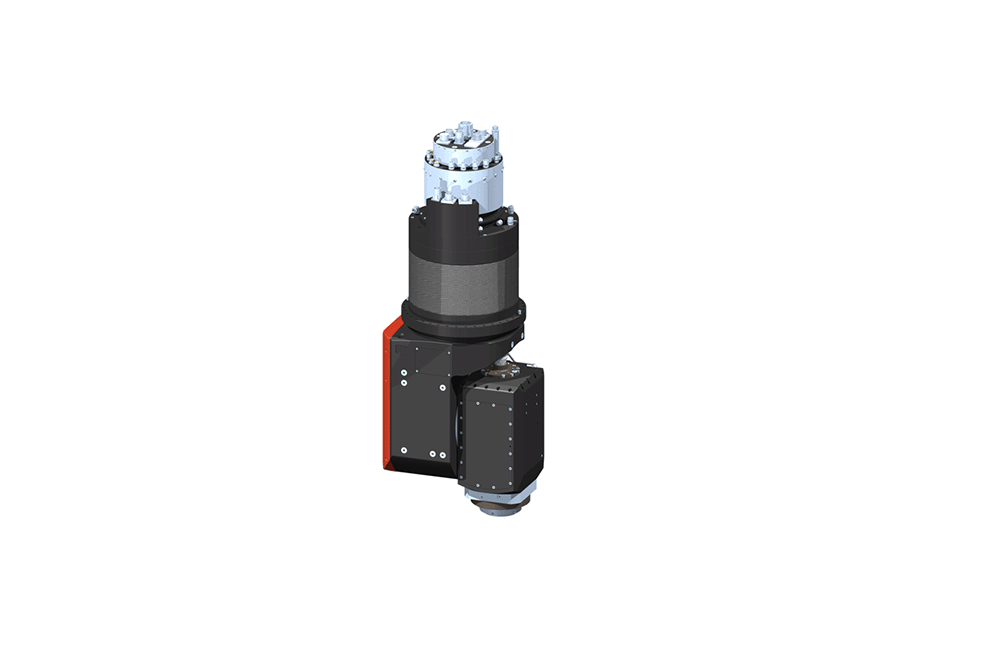

HST310D

DIRECT DRIVE

Rot. Axes A/C ±120°/±220°//±105°/±220°-75kg~

HST310D

TECHNICAL SPECIFICATIONS
HSD Axis Motorors.
A Axis max torque: 32Nm; 80Nm
C Axis stall/ Max torque C: 64Nm; 160Nm
Clamping torque Axes brakes A; C: 210;342 Nm
Max speed Axes A; C: 180°/sec; 180°/sec
Measuring system accuracy A;C: 13 arcsec; 13 arcsec (option 5;5)****
A;C Axes rotation: ±120°; ±220°(7kW); ±105°; ±220°(11kW)
A;C Axes endless rotation (Slip Ring): no; option
Axis encoder: yes(AMO)
Axes Brakes: yes pneumatic
Weight: ~75kg

****Values refer to the System Accuracy


SPINDLES AVAILABLE

ES368 HSK F63
Torque S1-S6: 5,6Nm/6,9Nm Asyn; 8,7kW/10,3kW Synch
Power S1-S6: 7/8,7kW Asyn; 11/13kW Synch
Max Speed: 20.000 Grease (S1 7kW); 24.000 Grease (S1 11kW)
Rated Speed: 12.000 rpm
Spindle Encoder: TTL/sincos (Option)

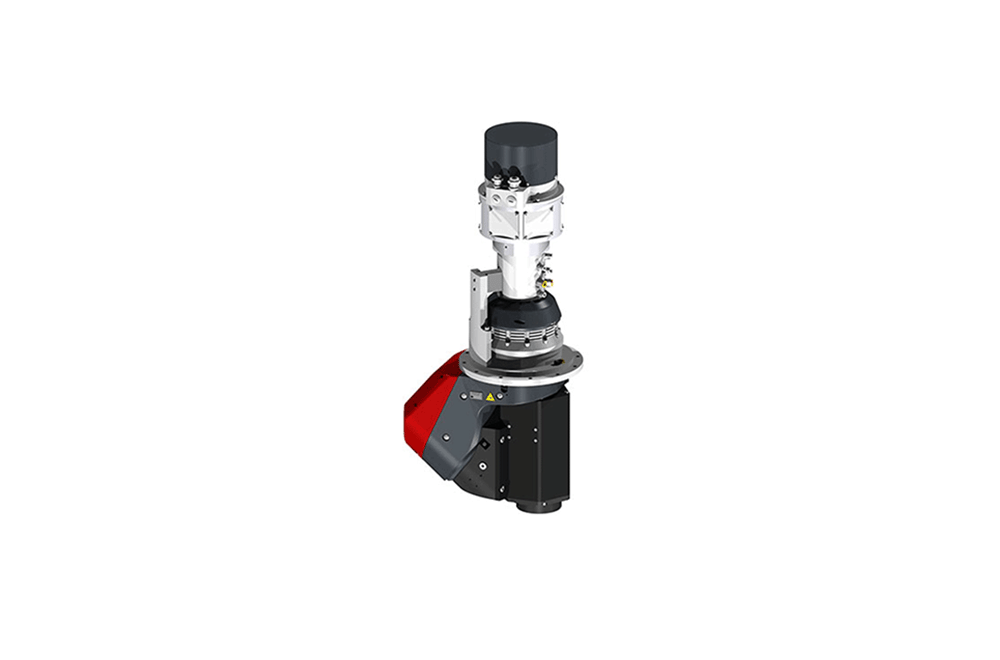

HST570

Rot. Axes A/C Endless - 150kg~

DIRECT DRIVE

HST570

TECHNICAL SPECIFICATIONS
ELECTROHEAD DATA
DIRECT DRIVE Motors.
A Axis max torque: 130Nm; 190Nm
C Axis stall/ Max torque C: 183Nm; 290Nm
Clamping torque Axes brakes A; C: 342;342
Max speed Axes A; C: 180°/sec; 180°/sec
Measuring system accuracy A;C: 30 arcsec; 30 arcsec
A;C Axes rotation: endless; endless
A;C Axes endless rotation (Slip Ring): yes; yes
Axis encoder: yes(AMO)
Axes Brakes: yes pneumatic
Weight: ~150kg

****Values refer to the System Accuracy


SPINDLES AVAILABLE

ES367 HSK F63
Torque S1-S6: 21,5Nm/25,8Nm Asynch
Power S1-S6: 18kW/21,6kW Asynch
Max Speed: 24.000 rpm grease
Rated Speed: 8.000 rpm (S1 15kW)
Spindle Encoder: -

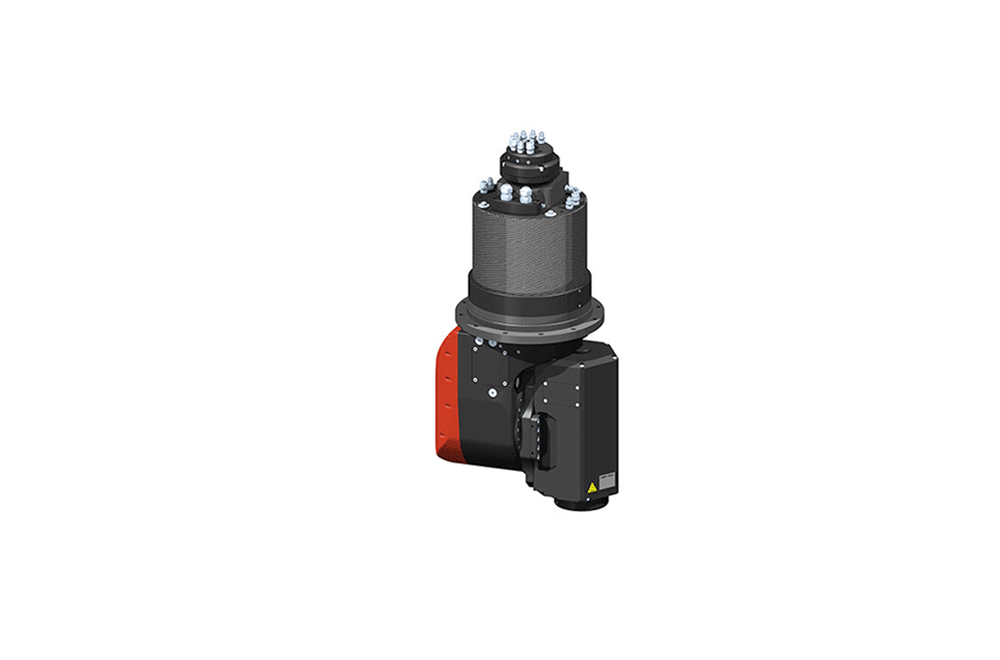

HS673D

Rot. Axes A/C ±120°/±360°

- 100kg~

HS673D

TECHNICAL SPECIFICATIONS
Mitsubishi, Siemens Motors
A Axis max torque: 347Nm; 1.030**Nm
C Axis stall/ Max torque C: 490Nm; 1.030**Nm
Clamping torque Axes brakes A; C: 342;342
Max speed Axes A; C: 135°/sec; 135°/sec
Measuring system accuracy A;C: 30 arcsec; 30 arcsec
A;C Axes rotation: ±120°;±360°
A;C Axes endless rotation (Slip Ring): no; no
Axis encoder: yes(AMO)
Axes Brakes: yes pneumatic
Weight: ~100kg

**Values depend on the servomotor chosen

SPINDLES AVAILABLE

ES779 HSK F63-A63
Torque S1-S6: 12,7Nm/15,3Nm Asynch
Power S1-S6: 10kW/12kW Asynch
Max Speed: 24.000 rpm grease;
Rated Speed: 7.500 rpm (S1 15kW)
Spindle Encoder: TTL/sincos(Option)

ES779 HSK F63-A63
Torque S1-S6: 11,9Nm/14,3Nm Asynch
Power S1-S6: 15kW/18kW Asynch
Max Speed: 24.000 rpm grease;
Rated Speed: 12.000 rpm (S1 15kW)
Spindle Encoder: TTL/sincos(Option)

ES779 HSK F63-A63
Torque S1-S6: 18Nm/20Nm Synch
Power S1-S6: 22kW/25kW Synch
Max Speed: 24.000 rpm grease;
Rated Speed: 10.600 rpm
Spindle Encoder: TTL/sincos(Option)

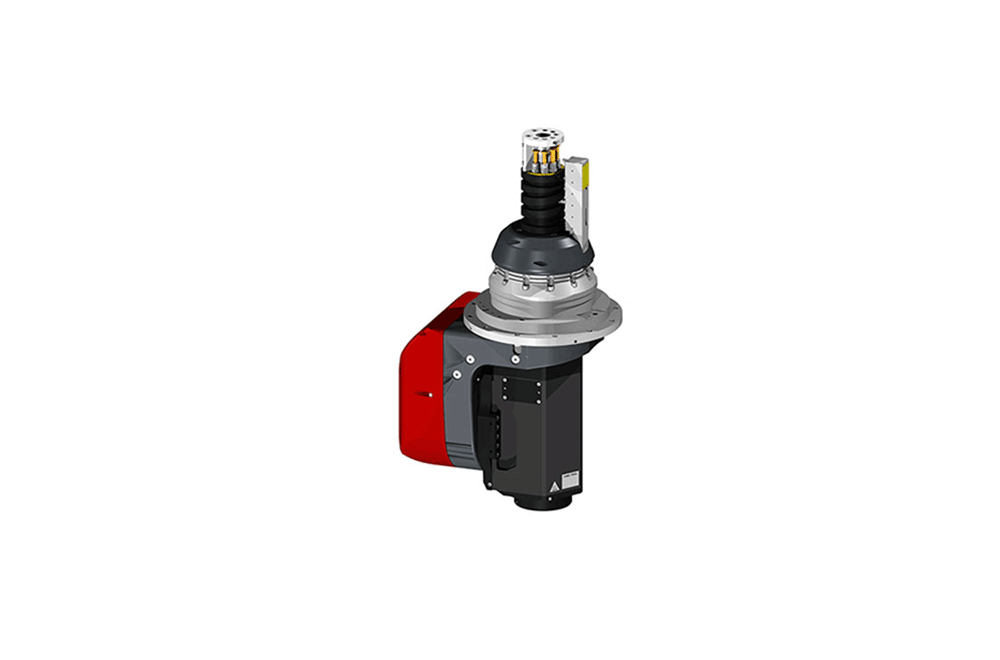

HS673

Rot. Axes A/C ±120°/±360°

- 100kg~

HS673

TECHNICAL SPECIFICATIONS
ELECTROHEAD DATA
Mitsubishi, Siemens Motors
A Axis max torque: 347Nm; 1.030**Nm
C Axis stall/ Max torque C: 490Nm; 1.030**Nm
Clamping torque Axes brakes A; C: 342;342
Max speed Axes A; C: 135°/sec; 135°/sec
Measuring system accuracy A;C: 30 arcsec; 30 arcsec
A;C Axes rotation: ±120°;±360°
A;C Axes endless rotation (Slip Ring): no; no
Axis encoder: yes(AMO)
Axes Brakes: yes pneumatic
Weight: ~100kg

**Values depend on the servomotor chosen


SPINDLES AVAILABLE

ES779 HSK F63-A63
Torque S1-S6: 12,7Nm/15,3Nm Asynch
Power S1-S6: 10kW/12kW Asynch
Max Speed: 24.000 rpm grease;
Rated Speed: 7.500 rpm (S1 15kW)
Spindle Encoder: TTL/sincos(Option)

ES779 HSK F63-A63
Torque S1-S6: 11,9Nm/14,3Nm Asynch
Power S1-S6: 15kW/18kW Asynch
Max Speed: 24.000 rpm grease;
Rated Speed: 12.000 rpm (S1 15kW)
Spindle Encoder: TTL/sincos(Option)

ES779 HSK F63-A63
Torque S1-S6: 18Nm/20Nm Synch
Power S1-S6: 22kW/25kW Synch
Max Speed: 24.000 rpm grease;
Rated Speed: 10.600 rpm
Spindle Encoder: TTL/sincos(Option)

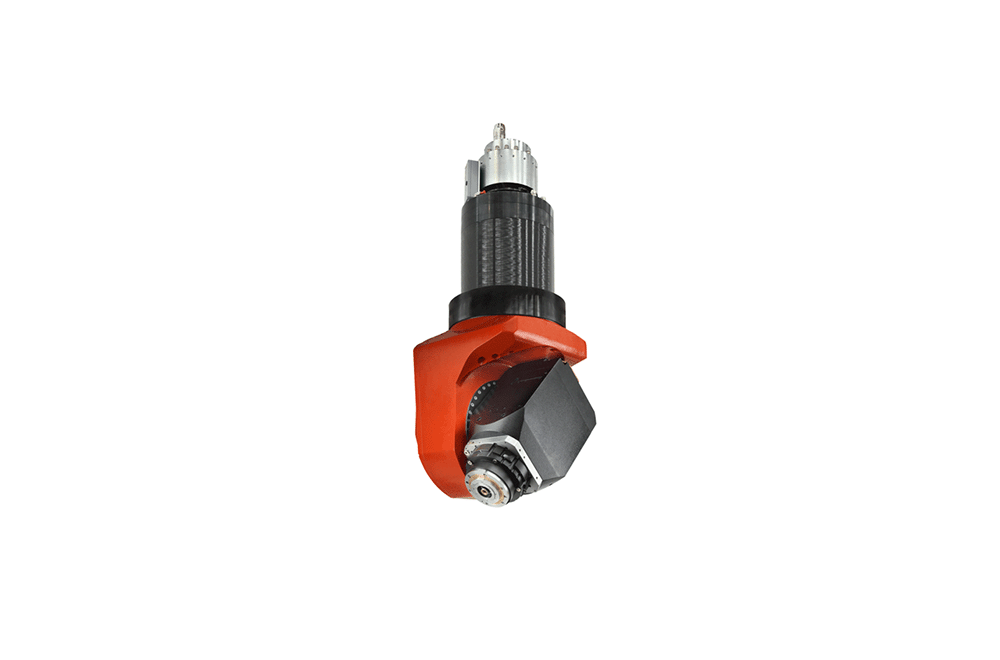

HS675D + ES779

Rot. Axes A/C ±120°/±245

-160kg~

HS675D + ES779

TECHNICAL SPECIFICATIONS
Fanuc, Yaskawa, Siemens Motors
A Axis max torque: 300Nm; 1.000**Nm
C Axis stall/ Max torque C: 500Nm; 1.200**Nm
Clamping torque Axes brakes A; C: 600;600
Max speed Axes A; C: 130°/sec; 200**°/sec
Measuring system accuracy A;C: 60 arcsec; 60 arcsec; (30;30)arcsec***
A;C Axes rotation: ±120°;±245°
A;C Axes endless rotation (Slip Ring): no; no
Axis encoder: option(AMO)
Axes Brakes: option pneumatic
Weight: ~160kg

**Values depend on the servomotor chosen
***With axis encoder

SPINDLES AVAILABLE

ES779 HSK F63-A63
Torque S1-S6: 12,7Nm/15,3Nm Asynch
Power S1-S6: 10kW/12kW Asynch
Max Speed: 24.000 rpm grease;
Rated Speed: 7.500 rpm
Spindle Encoder: TTL/sincos(Option)

HS675D + ES789

Rot. Axes A/C ±120°/±245°

(option ±360°) -170kg~

HS675D + ES789

TECHNICAL SPECIFICATIONS
ELECTROHEAD DATA
Fanuc, Yaskawa, Siemens Motors
A Axis max torque: 300Nm; 1.000**Nm
C Axis stall/ Max torque C: 500Nm; 1.200**Nm
Clamping torque Axes brakes A; C: 600;600
Max speed Axes A; C: 130°/sec; 200**°/sec
Measuring system accuracy A;C: 60 arcsec; 60 arcsec; (30;30)arcsec***
A;C Axes rotation: ±120°;±245°(Option ±360°)
A;C Axes endless rotation (Slip Ring): no; no
Axis encoder: option(AMO)
Axes Brakes: option pneumatic
Weight: ~170kg

**Values depend on the servomotor chosen
***With axis encoder

SPINDLES AVAILABLE

ES789 HSK F63-A63
Torque S1-S6: 19,1Nm/20,9Nm Asynch; 17,2Nm/20,6Nm Asynch
Power S1-S6: 15kW/18kW Asynch; 18kW/21,6kW Asynch
Max Speed: 24.000 rpm grease;
Rated Speed: 9.000 rpm (S1 15kW), 10.000(S1 18 kW)
Spindle Encoder: TTL/sincos(Option)

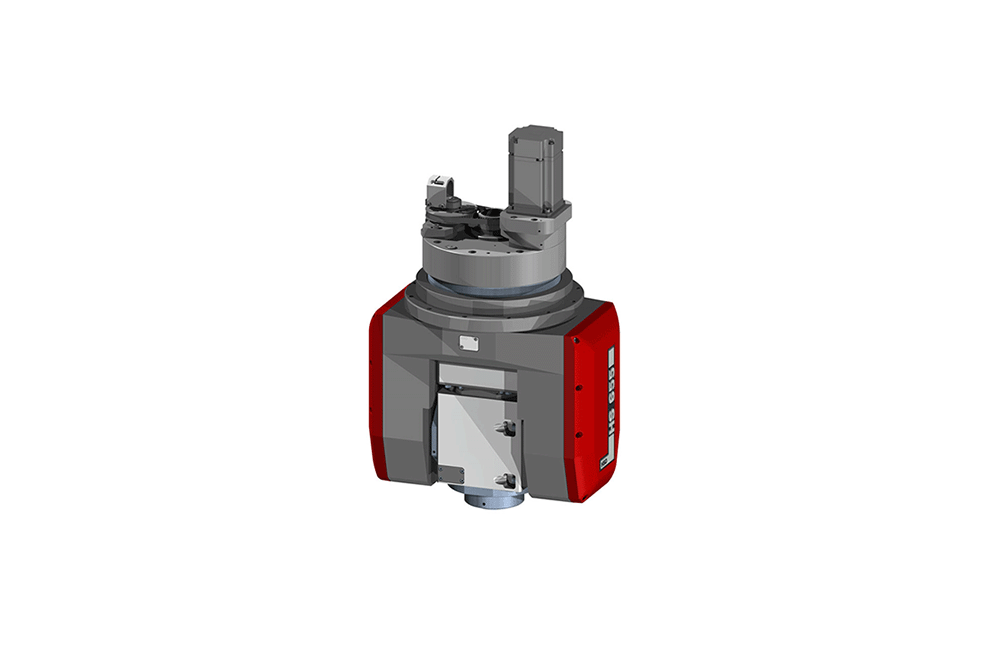

HS655 + ES779

Rot. Axes A/C ±120°/±245°

- 120kg~

HS655 + ES779

TECHNICAL SPECIFICATIONS
Num, Yaskawa, Siemens, Fanuc,Baumueller, Fagor, Mitsubishi, Osai Motors
A Axis max torque: 400Nm; 1.000**Nm
C Axis stall/ Max torque C: 500Nm; 1.200**Nm
Clamping torque Axes brakes A; C: -
Max speed Axes A; C: 170°/sec; 270**°/sec
Measuring system accuracy A;C: 60 arcsec; 60 arcsec; (30;30)arcsec***
A;C Axes rotation: ±120°;±245°
A;C Axes endless rotation (Slip Ring): no; option
Axis encoder: option(AMO)
Axes Brakes: no
Weight: ~120kg

**Values depend on the servomotor chosen
***With axis encoder

SPINDLES AVAILABLE ES779 HSK F63-A63-E40/F50
Torque S1-S6: 12,7Nm/15,3Nm Asynch; 10,7Nm/12,9Nm Asynch
Power S1-S6: 10kW/12kW Asynch; 13,5kW/16,2kW Asynch
Max Speed: 24.000 rpm grease;
Rated Speed: 7.500 rpm (S1 10kW), 12.000(S1 13,5 kW)
Spindle Encoder: TTL/sincos(Option)

HS655 + ES789

Rot. Axes A/C ±120°/±245°

-120kg~

HS655 + ES789

TECHNICAL SPECIFICATIONS
Fagor, Yaskawa,Fanuc,Siemens,Osai,Schneider, Heidenhain Motors
A Axis max torque: 400Nm; 1.000**Nm
C Axis stall/ Max torque C: 500Nm; 1.200**Nm
Clamping torque Axes brakes A; C: 480Nm; 600Nm
Max speed Axes A; C: 170°/sec; 270**°/sec
Measuring system accuracy A;C: 60 arcsec; 60 arcsec; (30;30)arcsec***
A;C Axes rotation: ±120°;±245°
A;C Axes endless rotation (Slip Ring): no; option
Axis encoder: option(AMO)
Axes Brakes: option pneumatic
Weight: ~120kg

**Values depend on the servomotor chosen
***With axis encoder

SPINDLES AVAILABLE

ES798 HSK F63-A63
Torque S1-S6: 19,1Nm/20,9Nm Asynch;
Power S1-S6: 15kW/18kW Asynch;
Max Speed: 24.000 rpm grease;
Rated Speed: 9.000 rpm
Spindle Encoder: TTL/sincos(Option)

HS678 + ES798

Rot. Asse A/C ±120°/±245°

-250kg~

HS678 + ES798

TECHNICAL SPECIFICATIONS
Yaskawa,Fanuc,Siemens;B&R,Osai,Glentek Motors
A Axis max torque: 500Nm; 1.200**Nm
C Axis stall/ Max torque C: 500Nm; 1.200**Nm
Clamping torque Axes brakes A; C: 1.080Nm; 1.080Nm
Max speed Axes A; C: 194°/sec; 300**°/sec
Measuring system accuracy A;C: 30 arcsec; 30 arcsec
A;C Axes rotation: ±120°;±245°
A;C Axes endless rotation (Slip Ring): no; no
Axis encoder: yes(Heidenhain)
Axes Brakes: pneumatic
Weight: ~250kg

**Values depend on the servomotor chosen

SPINDLES AVAILABLE

ES798 HSK A63-E63
Torque S1-S6: 28Nm/32Nm Asynch;
Power S1-S6: 22kW/25kW Asynch;
Max Speed: 20.000 rpm grease;
Rated Speed: 7.500 rpm
Spindle Encoder: yes

HS678 + ES510

Rot. Axes A/C ±120°/±245°

-280kg~

HS678 + ES510

TECHNICAL SPECIFICATIONS
Fanuc, Siemens Motors
A Axis max torque: 500Nm;1.200**Nm
C Axis stall/ Max torque C: 500Nm;1.200**Nm
Clamping torque Axes brakes A; C: 1.080Nm; 1.080Nm
Max speed Axes A; C: 120°/sec; 200**°/sec
Measuring system accuracy A;C: 30 arcsec; 30 arcsec
A;C Axes rotation: ±120°;±245°
A;C Axes endless rotation (Slip Ring): no; no
Axis encoder: yes(Heidenhain)
Axes Brakes: pneumatic
Weight: ~280kg

**Values depend on the servomotor chosen

SPINDLES AVAILABLE

ES510 HSK A63
Torque S1-S6: 38Nm/46Nm Asynch;
Power S1-S6: 24kW/28kW Asynch;
Max Speed: 18.000 rpm grease; 24.000 rpm air/oil
Rated Speed: 6.000 rpm
Spindle Encoder: yes

HS778 + ES510

Rot. Axes A/C ±100°/±262°

-350kg~

HS778 + ES510

TECHNICAL SPECIFICATIONS
ELECTROHEAD DATA

Yaskawa,Siemens Motors
A Axis max torque: 1.000Nm;2.400**Nm
C Axis stall/ Max torque C: 1.000Nm;2.400**Nm
Clamping torque Axes brakes A; C: 2.000Nm; 3.000Nm
Max speed Axes A; C: 140°/sec; 250°/sec**
Measuring system accuracy A;C: 30 arcsec; 30 arcsec
A;C Axes rotation: ±110°;±262°
A;C Axes endless rotation (Slip Ring): no; no
Axis encoder: yes(Renishaw;AMO)
Axes Brakes: hydraulic
Weight: ~350kg

**Values depend on the servomotor chosen

SPINDLES AVAILABLE

ES510 HSK A63
Torque S1-S6: 38Nm/46Nm Asynch; 67Nm/87,5Nm Synch
Power S1-S6: 24kW/28kW Asynch; 42kW/55kW Synch
Max Speed: 18.000 rpm grease; 24.000 rpm air/oil
Rated Speed: 6.000 rpm
Spindle Encoder: yes

ES510 HSK A63
Torque S1-S6: 48Nm/57Nm Asynch;
Power S1-S6: 30kW/36kW Asynch;
Max Speed: 24.000 rpm air/oil
Rated Speed: 6.000 rpm
Spindle Encoder: yes

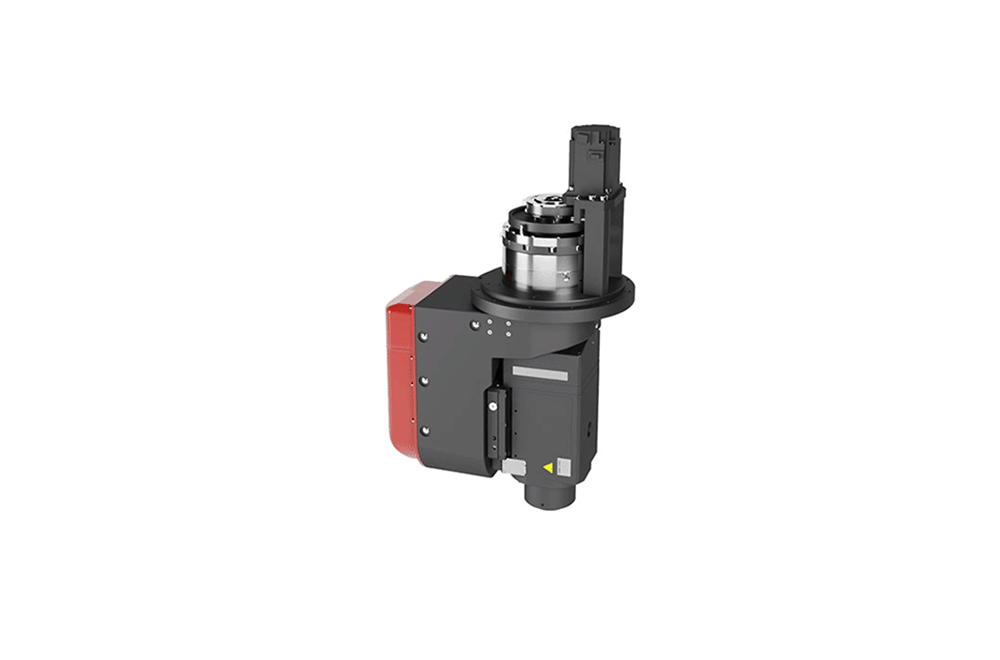

HST610 single sided

DIRECT DRIVE

Rot. Axes A/C ±110°/±270°-260kg~

HST610 single sided

TECHNICAL SPECIFICATIONS

ELECTROHEAD DATA

A Axis max torque: 480Nm
C Axis max torque C: 680Nm
Clamping torque Axes brakes A; C: 1800Nm; 2000Nm
Max speed Axes A; C: 180° sec ; 180° sec
Axis positioning accuracy A; C: 4 arcsec; 4 arcsec
A; C Axes rotation ±110° ±270°
A; C Axes endless rotation (Slip Ring): no, no
Axis encoder: absolute
Axes Brakes: yes hydraulic
Weight: ~260kg


SPINDLES AVAILABLE

 ES505 HSK A63

Torque S1-S6 30Nm /36Nm
Power S1-S6 25kW /30kW
Max RPM 20.000 grease
Max RPM 24.000 air/oil
Rated Speed: 8.000
Spindle Encoder: yes


ES505 HT  HSK A63
Torque S1-S6 48Nm /57,5Nm
Power S1-S6 40kW /48kW
Max RPM 20.000 grease
Rated Speed: 8.000
Spindle Encoder: yes

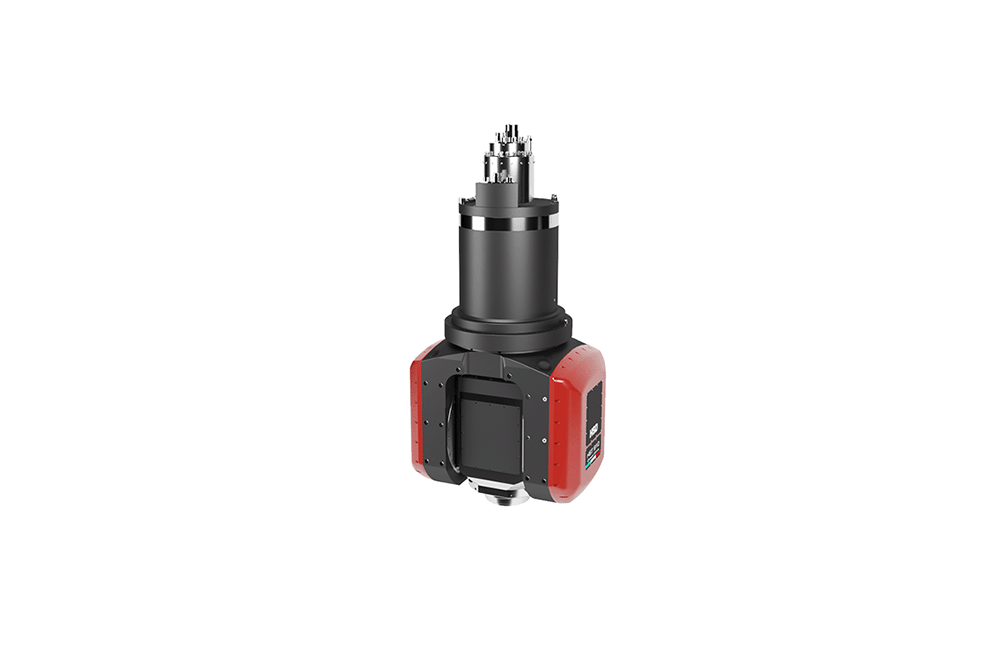

HST610 double sided

DIRECT DRIVE

- Rot. Axes A/C ±110°/±270°-290kg~

HST610 double sided

TECHNICAL SPECIFICATIONS
ELECTROHEAD DATA

DIRECT DRIVE Motors
A Axis max torque: 480Nm
C Axis max torque C: 680Nm
Clamping torque Axes brakes A; C: 1800Nm; 2000Nm
Max speed Axes A; C: 180° sec ; 180° sec
Axis positioning accuracy A; C: 5 arcsec; 4 arcsec
A Axes rotation ±110°
C Axes rotation ±270°
C Axes endless rotation (Slip Ring): no
A Axes endless rotation (Slip Ring): no
Direct Axis encoder: yes
Axes Brakes: yes hydraulic
Weight: ~290kg


SPINDLES AVAILABLE

ES505 HSK A63 Synchronous
Torque S1-S6 30Nm / 36Nm
Power S1-S6 25kW / 30kW
Max RPM 20.000 grease
Max RPM 24.000 air/oil
Rated Speed: 8.000
Spindle Encoder: yes

ES505 HT HSK A63
Torque S1-S6 48Nm / 57,5Nm
Power S1-S6 40kW / 48kW
Max RPM 20.000 grease
Rated Speed: 8.000
Spindle Encoder: yes

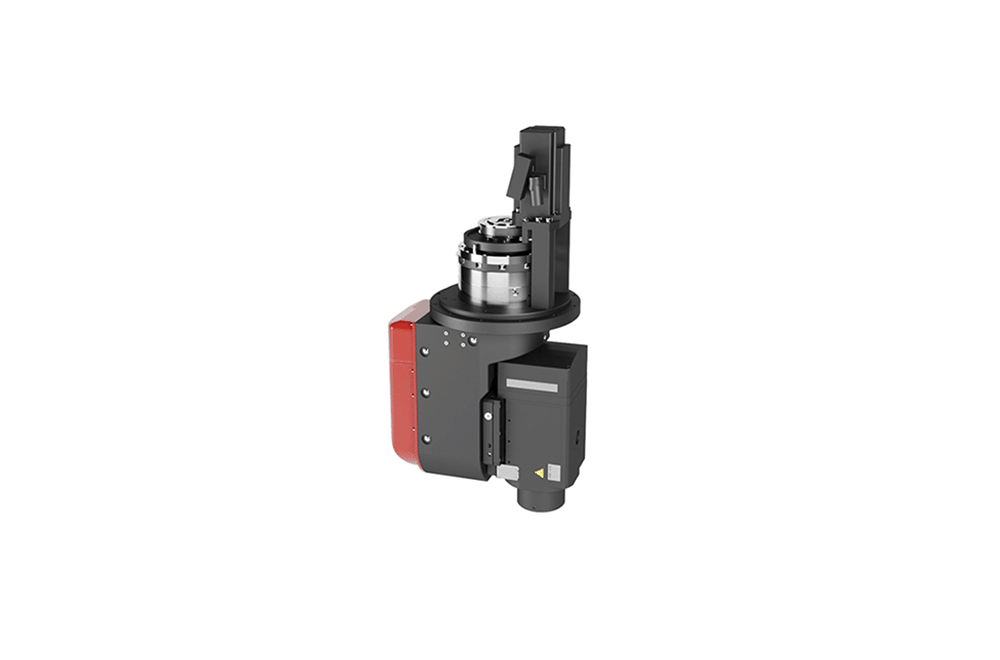

HST810 single sided

DIRECT DRIVE

- Rot. Axes A/C ±110°/±270°-550kg~

HST810 single sided

TECHNICAL SPECIFICATIONS

ELECTROHEAD DATA



DIRECT DRIVE Motors

A Axis max torque: 707Nm

C Axis stall/ Max torque C: 1250Nm

Clamping torque Axes brakes A; C: 2000Nm; 4000Nm

Max speed Axes A; C: 180° sec ; 180° sec

Measuring system accuracy A;C: 2 arcsec; 2 arcsec

A Axes rotation ±110°

C Axes rotation ±270°

C Axes endless rotation (Slip Ring): no

A Axes endless rotation (Slip Ring): no

Axis encoder: absolute

Axes Brakes: yes hydraulic

Weight: ~550kg



SPINDLES AVAILABLE



ES510 HSK A63
Power S1-S6 42kW / 55kW Synch
Torque S1-S6 67Nm / 87,5Nm Synch
Max RPM 18.000 grease
Max RPM 24.000 air/oil
Rated Speed: 6.000
Spindle Encoder: yes

ES510 HSK A100
Power S1-S6 50kW / 65kW Synch
Torque S1-S6 95,5Nm / 124Nm Synch
Max RPM 12.000 grease
Max RPM 15.000 air/oil
Rated Speed: 5.000
Spindle Encoder: yes

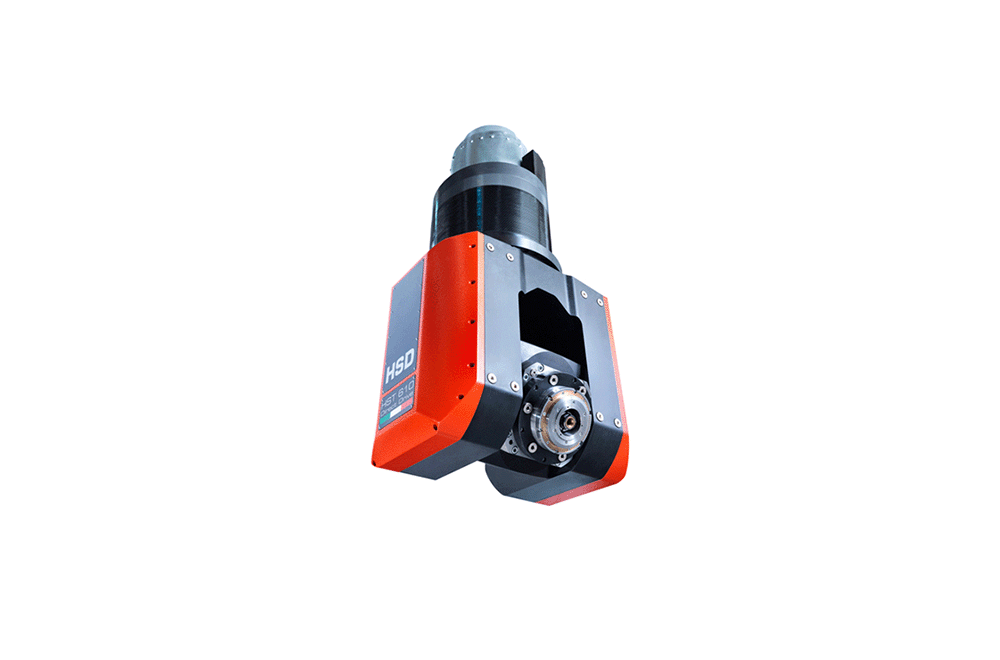

HST910 double sided

DIRECT DRIVE

- Rot. Axes A/C ±110°/±360°-1475kg~

HST910 double sided

TECHNICAL SPECIFICATIONS

ELECTROHEAD DATA



DIRECT DRIVE Motors

A Axis max torque: 2400Nm

C Axis stall/ Max torque C: 3000Nm

Clamping torque Axes brakes A; C: 6000Nm; 8000Nm

Max speed Axes A; C: 360° sec ; 360° sec

Measuring system accuracy A;C: 2 arcsec; 2 arcsec

A Axes rotation ±110°

C Axes rotation ±360°

C Axes endless rotation (Slip Ring): no

A Axes endless rotation (Slip Ring): no

Axis encoder: absolute

Axes Brakes: yes hydraulic

Weight: ~1475kg



SPINDLES AVAILABLE

ES518 HSK A100

Power S1-S6 43kW / 51,6kW Asynch
Torque S1-S6 410Nm / 492Nm Synch
Max RPM 8.000 air/oil
Rated Speed: 1.000
Spindle Encoder: yes
View File
