Drilling/Milling Aggregates

CATEGORY: ALUMUNIUM / PLASTICS LINE
Back Enquire

OVERVIEW

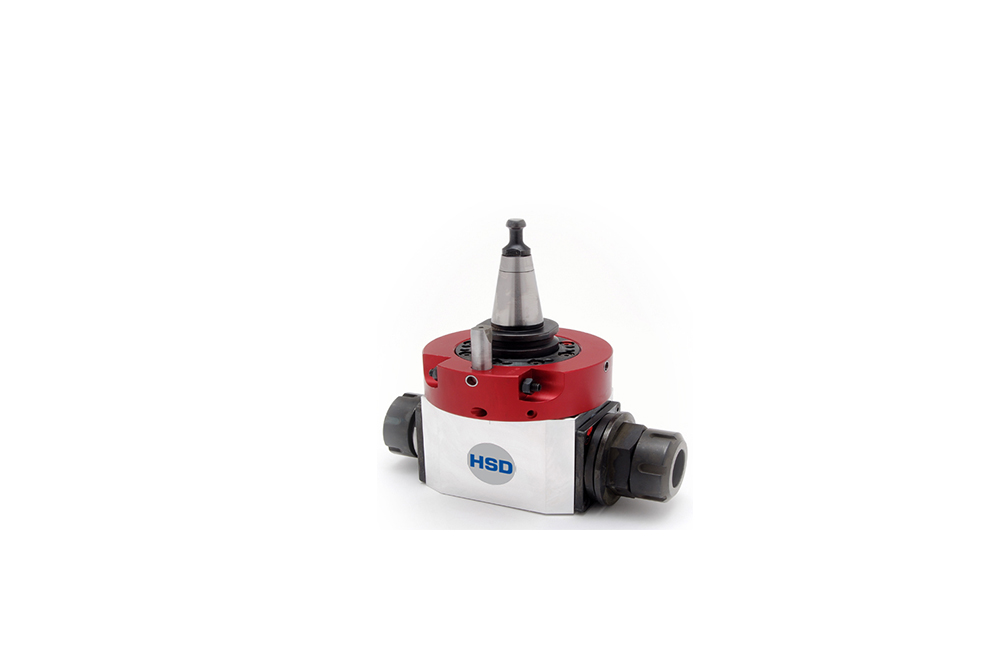

code H630211700 (ISO 30)

2 ER25 collet outlets

WITH 360° ROTATION ON C AXIS (ISO 30)

code H630211700 (ISO 30)

TECHNICAL SPECIFICATIONS

Electrospindle rotation speed: 12.000 RPM max
Tool rotation speed: 12.000 RPM max
Speed ratio: 1:1
Electrospindle coupling: ISO 30
Tool shank diameter: 1÷16 mm

Max bit diameter: 16 mm
Weight: 4,5 kg
Lubrication: grease Kluber NBU 15

code H630212100 (ISO 30)

2 ER32 collet outlets + Ø180 blade

For cutting/milling up to 50mm

code H630212100 (ISO 30)

TECHNICAL SPECIFICATIONS

Electrospindle rotation speed: 12.000 (*)/8.000 (°) RPM max
Tool rotation speed: 12.000 (*)/8.000 (°) RPM max
Speed ratio: 1:1
Electrospindle coupling: ISO 30
Tool shank diameter: 2÷20 mm

Max bit diameter (*): 20 mm
Blade diameter (°): Ø120 ÷ Ø180 mm

Blade working depth: 20-50 mm
Weight: 5 kg
Lubrication: grease Kluber NBU 15



code H6314H0402 (ISO 30)

2 ER32 collet outlets + Ø215 blade

For heavy milling/cutting up to 50mm

code H6314H0402 (ISO 30)

TECHNICAL SPECIFICATIONS

Electrospindle rotation speed: 12.000 rpm max
Tool rotation speed: 8.400 rpm max
Speed ratio: 1:0,7
Electrospindle coupling: ISO 30
Tool shank diameter: 2 ÷ 20 mm

Max bit diameter: 20 mm
Blade diameter: Ø215 mm
Working depth: 50 mm
Weight: 6 kg

Working temperature: 70°C max
Lubrication: grease Kluber NBU 15
