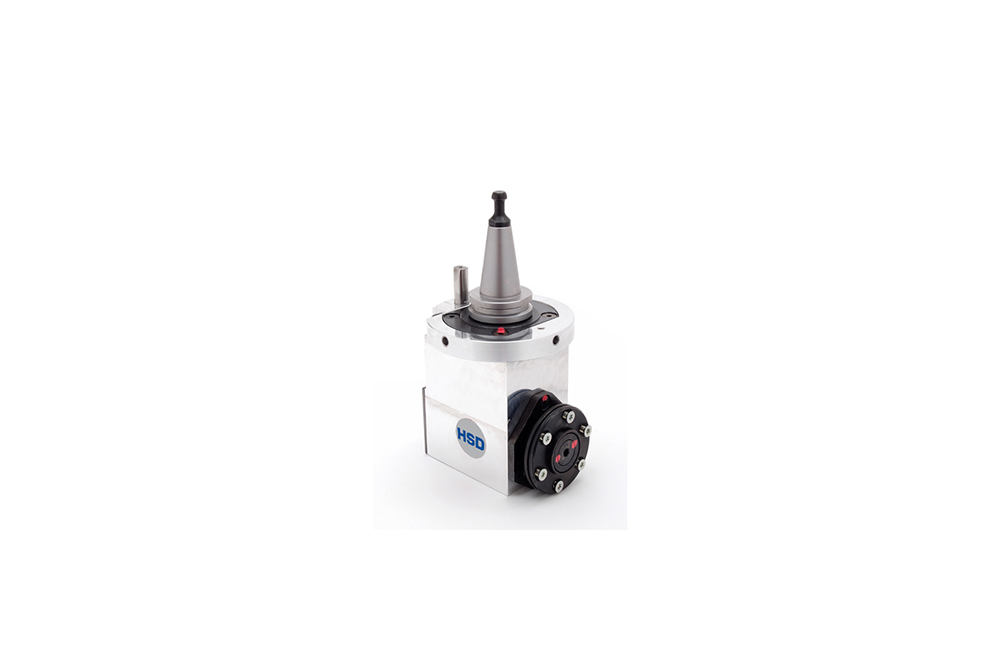

CUTTING AGGREGATES

CATEGORY: ALUMUNIUM / PLASTICS LINE
Back Enquire

OVERVIEW

Various

code H630212100 (ISO 30)

2 ER32 collet outlets + Ø180 blade

For cutting/milling up to 50mm

code H630212100 (ISO 30)

TECHNICAL SPECIFICATIONS

Electrospindle rotation speed: 12.000 (*)/8.000 (°) RPM max
Tool rotation speed: 12.000 (*)/8.000 (°) RPM max
Speed ratio: 1:1
Electrospindle coupling: ISO 30
Tool shank diameter: 2÷20 mm

Max bit diameter (*): 20 mm
Blade diameter (°): Ø120 ÷ Ø180 mm

Blade working depth: 20-50 mm
Weight: 5 kg
Lubrication: grease Kluber NBU 15

code B6314B0052 (ISO 30)

1 Ø180 ÷ Ø270 blade outlet

For cutting up to 90 mm

code B6314B0052 (ISO 30)

TECHNICAL SPECIFICATIONS

Electrospindle rotation speed: 12.000 rpm max
Tool rotation speed: 8.400 rpm max
Speed ratio: 1:0,7 (IN : OUT)
Electrospindle coupling: ISO 30
Blade diameter: Ø270 mm
Blade working depth  : 90mm

Weight: 5,2 kg

Working temperature : 70°C max
Lubrication: grease Kluber NBU 15

code H6314H0394 (ISO 30)

1 Ø120 ÷ Ø215 blade outlet

For cutting up to 65mm

code H6314H0394 (ISO 30)

TECHNICAL SPECIFICATIONS

Electrospindle rotation speed: 12.000 rpm max
Tool rotation speed: 8.400 rpm max
Speed ratio : 1:0,7
Electrospindle coupling ISO 30
Blade diameter : Ø120 ÷ Ø215 mm
Blade working depth: 65 mm

Weight: 4,5 kg

Working temperature: 70°C max
Lubrication: grease Kluber NBU 15

code H6314H0402 (ISO 30)

2 ER32 collet outlets + Ø215 blade

For heavy milling/cutting up to 50mm

code H6314H0402 (ISO 30)

TECHNICAL SPECIFICATIONS

Electrospindle rotation speed: 12.000 rpm max
Tool rotation speed: 8.400 rpm max
Speed ratio: 1:0,7
Electrospindle coupling: ISO 30
Tool shank diameter: 2 ÷ 20 mm

Max bit diameter: 20 mm
Blade diameter: Ø215 mm
Working depth: 50 mm
Weight: 6 kg

Working temperature: 70°C max
Lubrication: grease Kluber NBU 15
