OVERVIEW
HSD quick-change air-cooled and liquid-cooled electro-spindles are world leaders in the machining of wood, aluminium, plastics, marble and glass. The spindles, produced in their thousands, are characterised by their extremely high reliability andthe wide range of powers and operating speeds available.
The declared power ratings are guaranteed during continuous service, while the power available for machining can be up to 100% higher during discontinuous operation.
Each mechanical, pneumatic and electronic component used in the HSD electrospindles undergoes a double testing phase that guarantees optimum quality standards.
HSD is the leading world company in the production of electrospindles.

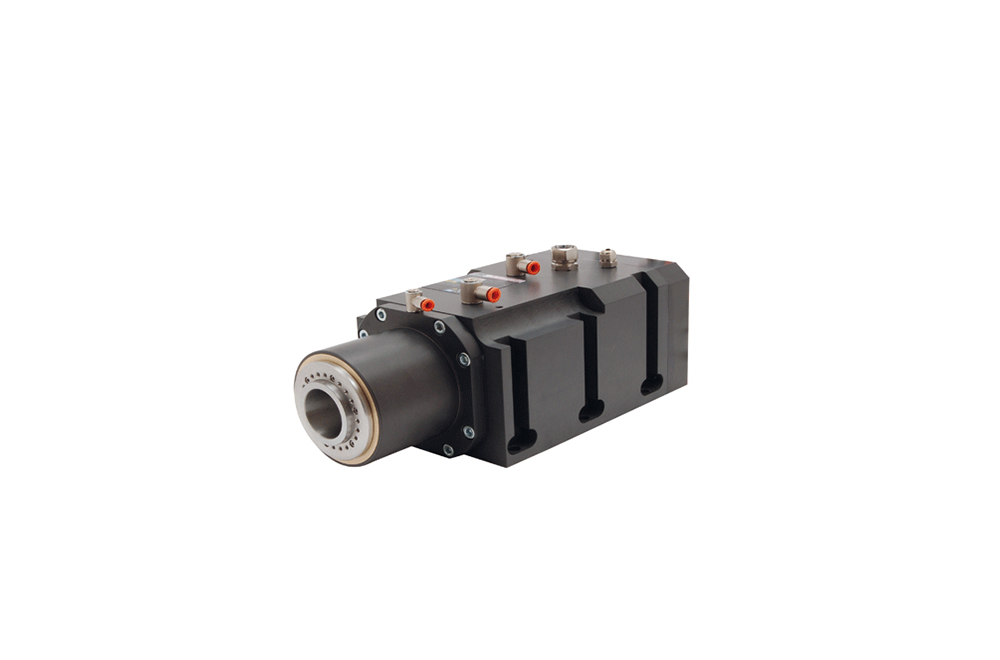

ES794 - H6161H0875
TECHNICAL SPECIFICATIONS
Power S1/S6 6Kw/7,2Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Cooling Liquid
Not Rorary Joint DPC
ES794 - H6161H0885
TECHNICAL SPECIFICATIONS
Power S1/S6 6Kw/7,2Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Cooling Liquid
Rotary Joint DPC (HSD patent)
ES794 - H6161H1113
TECHNICAL SPECIFICATIONS
Power S1/S6 6Kw/7,2Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Long Life lubricated
Max Rpm 16.000
Spindle Body Alluminium Alloy
Liquid cooling
Rotary Joint DPC (HSD patent)

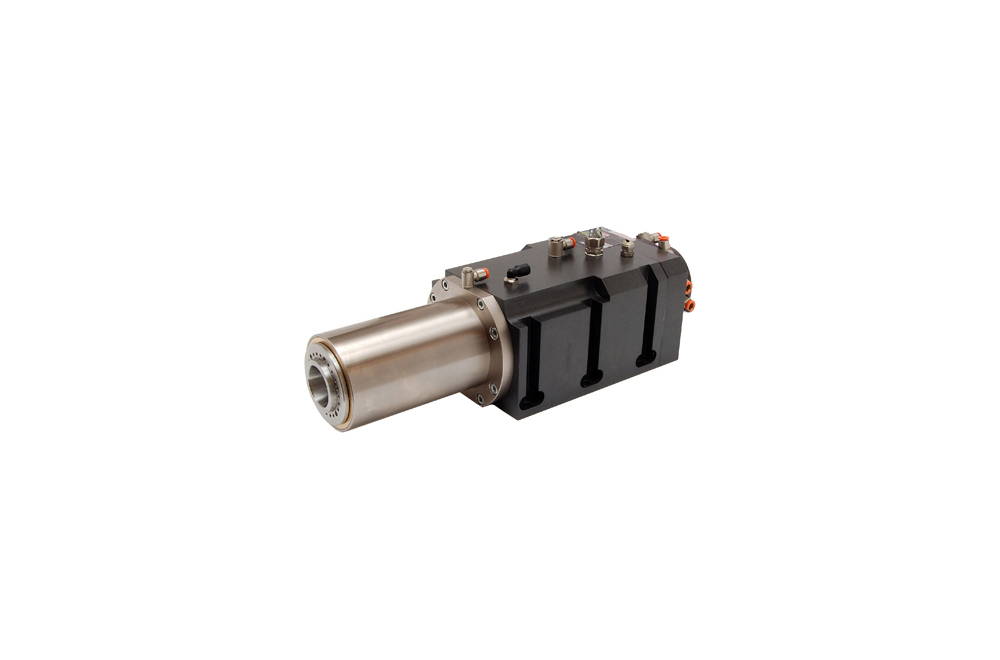

ES794 - H6161H1080
TECHNICAL SPECIFICATIONS
Power S1/S6 6Kw/7,2Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Liquid cooling
Rotary Joint DPC (HSD patent)

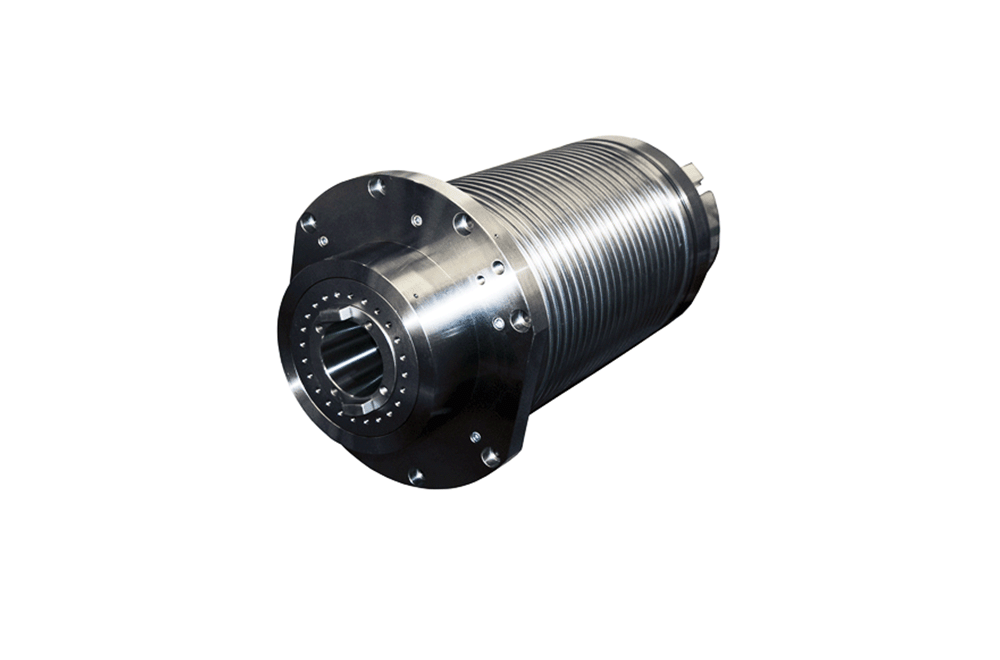

ES750 - H6161H1043
TECHNICAL SPECIFICATIONS
Power S1/S6 30Kw/36Kw
Tool Blocking Automatic with pneumatic piston
Rated Torque S1/S6 224Nm/270Nm
ISO50
Ratered Voltage 380V
Encoder HSD TTL
Poles 8
Bearings Front Ceramic
Bearing Rear Ceramic
Bearings Long Life lubricated
Max Rpm 10.000
Weight 150kg
Spindle Body Steel
Cooling Liquid
Rotary Joint DPC (HSD patent)
ES750 - H6161H1314
TECHNICAL SPECIFICATIONS
Power S1/S6 30Kw/36Kw
Tool Blocking Automatic with pneumatic piston
Rated Torque S1/S6 224Nm/270Nm
ISO50
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 8
Bearings Front Ceramic
Bearing Rear Ceramic
Bearings Long Life lubricated
Max Rpm 10.000
Weight 150kg
Spindle Body Steel
Cooling Liquid
Rotary Joint DPC (HSD patent)
Flange for cooling housing
ES750 - H6161H1315
TECHNICAL SPECIFICATIONS
Power S1/S6 30Kw/36Kw
Tool Blocking Automatic with pneumatic piston
Rated Torque S1/S6 224Nm/270Nm
ISO50
Ratered Voltage 380V
Encoder LB TTL
Poles 8
Bearings Front Ceramic
Bearing Rear Ceramic
Bearings Long Life lubricated
Max Rpm 10.000
Weight 150kg
Spindle Body Steel
Cooling Liquid
Rotary Joint DPC (HSD patent)

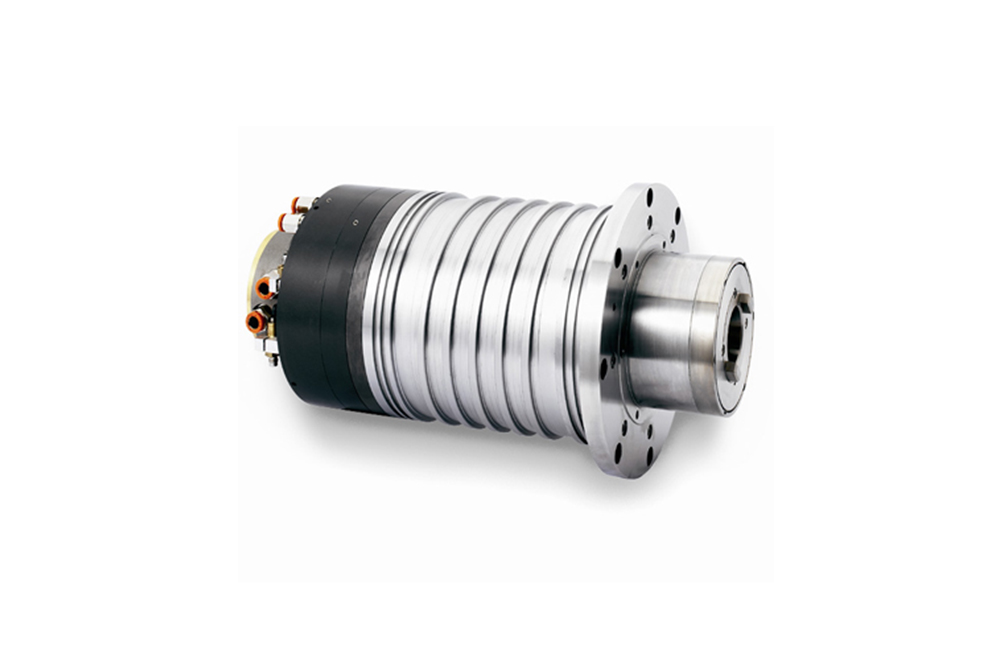

ES793 - H6161H1060
TECHNICAL SPECIFICATIONS
Power S1/S6 15Kw/18Kw
Tool Blocking Automatic with pneumatic piston
ISO40
Encoder LB 1Vpp
Ratered Voltage 380V
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Cooling Liquid
Rotary Joint DPC (HSD patented)
Weight: 45kg

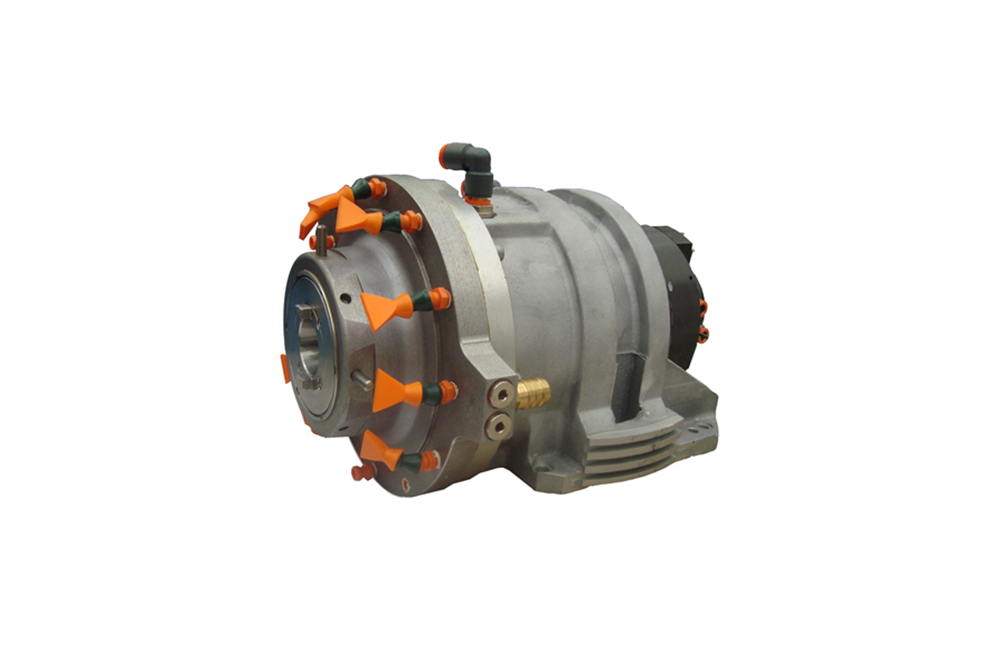

ES796 - H6161H0916
TECHNICAL SPECIFICATIONS
Power S1/S6 15Kw/18Kw
Tool Blocking Automatic with pneumatic piston
Encoder LB 1Vpp
Ratered Voltage 380V
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Weight 42kg
Cooling Liquid
Rotary Joint DPC (HSD patent)
ES796 - H6161H0935
Kw 15,0-S1/18,0-S6 - ISO4012.000rpm - liquid cooling 380V - DPC - encoder LB TTL
ES796 - H6161H0935
TECHNICAL SPECIFICATIONS
Power S1/S6 15Kw/18Kw
Tool Blocking Automatic with pneumatic piston
Encoder LB TTL
Ratered Voltage 380V
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Weight 42kg
Cooling Liquid
Rotary Joint DPC (HSD patent)
ES796 - H6161H0917
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Cooling Liquid
Rotary Joint DPC (HSD patent)
ES796 - H6161H1251
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder LB TTL
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Cooling Liquid
Rotary Joint DPC (HSD patent)

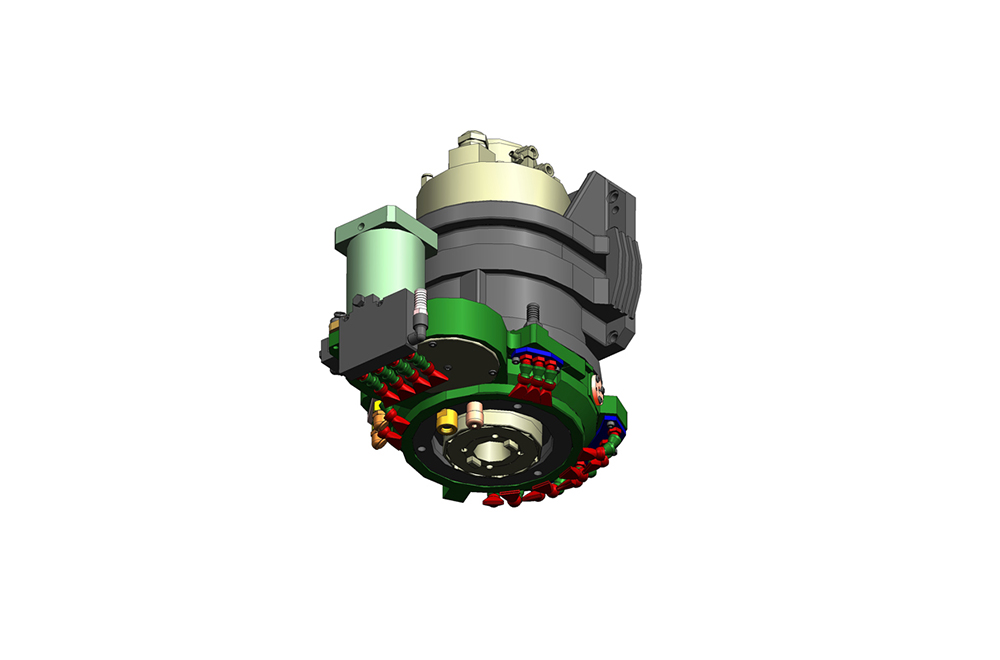

ES796 MK353 - H6314H0162
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Cooling Liquid
Rotary Joint DPC (HSD patent)
ES796 MK353 - H6314H0163
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Cooling Liquid
Rotary Joint DPC (HSD patent)
ES796 MK353 - H6314H0647
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder LB TTL
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Alluminium Alloy
Cooling Liquid
Rotary Joint DPC (HSD patent)
