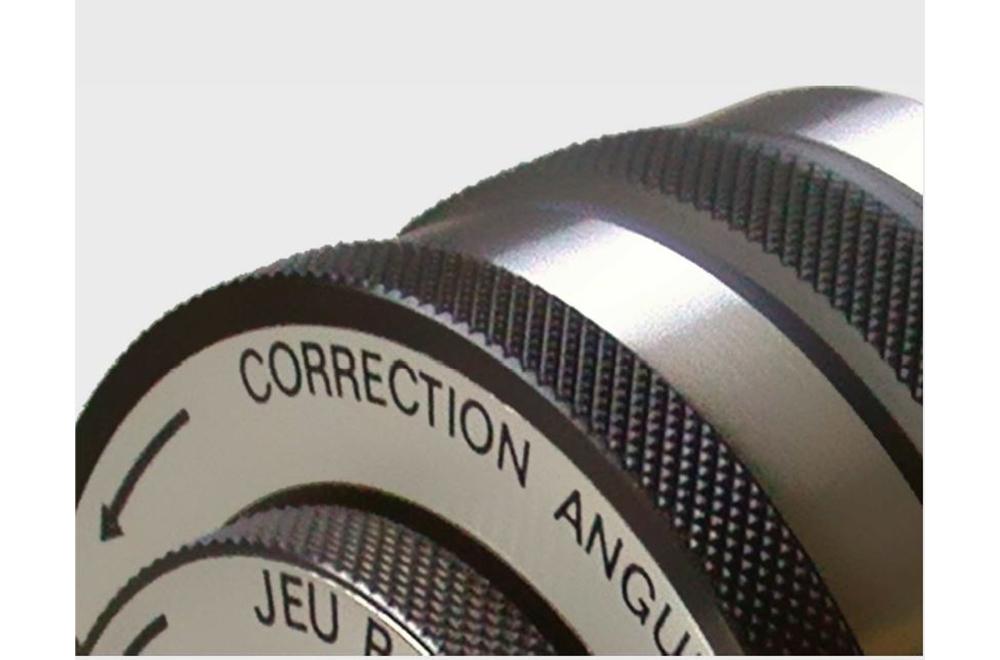

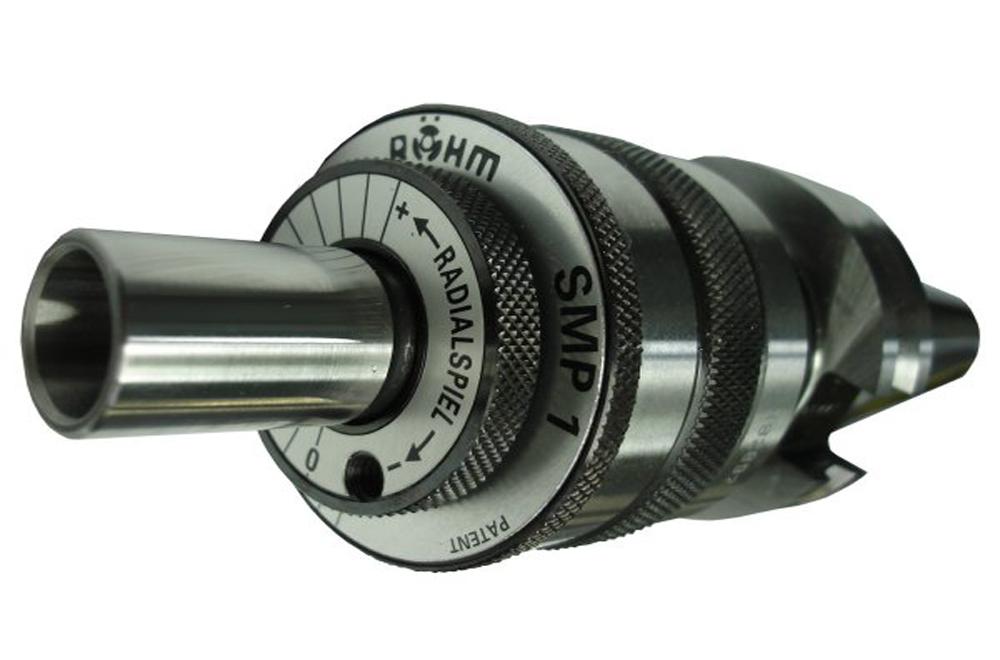

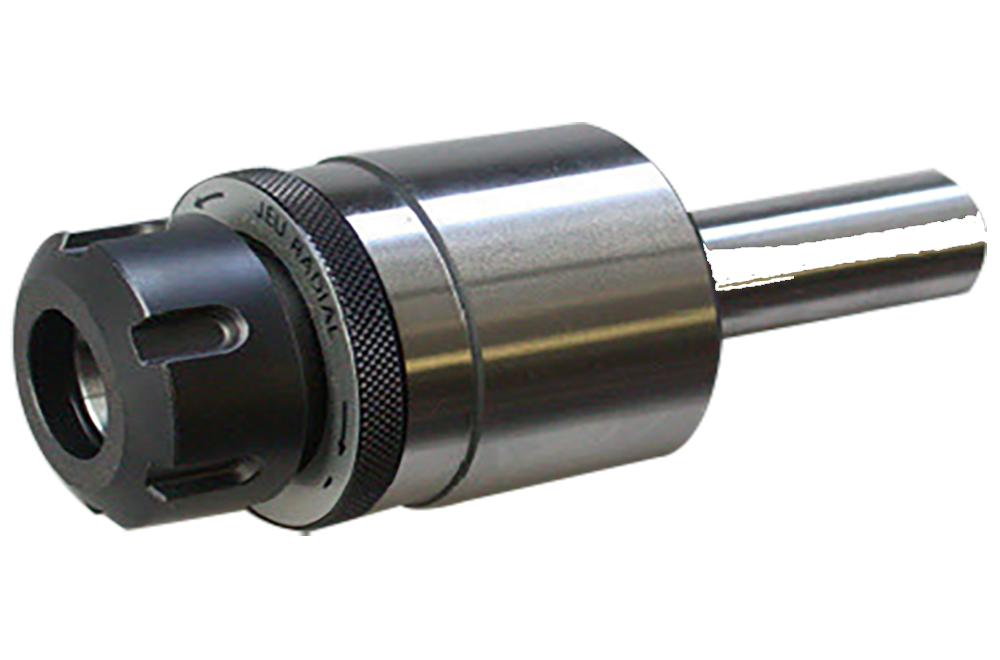

Floating Chucks

SMP floating chucks allow the reamer to self-center during the pre-boring phase: the tool-holder sleeve radially moves on ball-bearings.

There is no need for a radial force on the reamer despite the strong pair caused by the cutting force: the body and the floating sleeve are linked by an Oldham coupling. On an angular level, an elastic piece automatically compensates the possible angle between the support element of the reamer and the spindle's axis.

Advantages of this type of chucks:

No more faults linked to the offset of the machine's spindle and to the pre-boring phase
Clear improvement of the surface quality
Preservation of the reamers
Easier mass borings
Reduced setup time

SMP's range

With over 2,600 references in our catalogs and the capacity to quickly develop new products according to your needs, SMP ensures a service adapted to each one of your requirements.

General Technical Data
