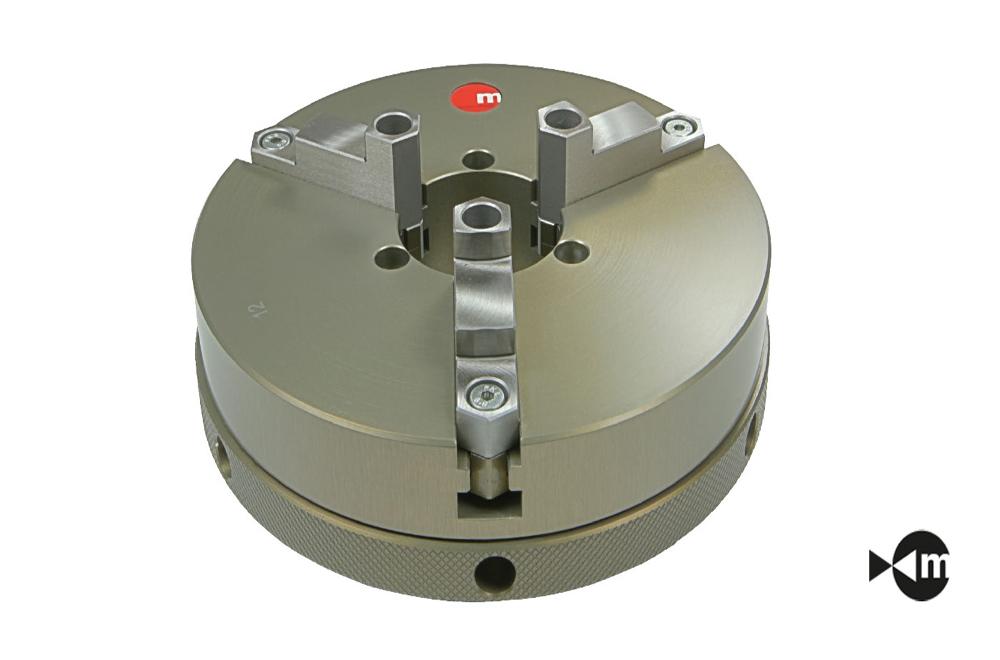

ZAS – the aluminum clamping chuck family of Maprox, from Ø = 70-315 mm, or on request also significantly larger | Hard as steel (about 50 HRC), with over 50% less weight – and the usual Maprox precision | In use since 2004 it defies the toughest conditions | Recognizable by the unique gold-bronze finish of the ALTEF® coating |Including a set of reversible steel top jaws, ground and case-hardened (anti-corrosive, see Gtd)
Technical details
- Concentricity: 20
- Lateral runout: 10 μ
- Repetitiveness: 10 μ
- For shank diameter 2-371 mm and bore diameter 18-404 mm
- Clamping chuck made of aluminum, ALTEF® coated, see Gtd
- Ø 70-315: Steel top jaws, ground and case-hardened (anti-corrosive, see Gtd)
Options
- Anti-magnetic
- Soft block top jaws W
- Top jaws also available in plastic, aluminium, brass etc. upon customer's request

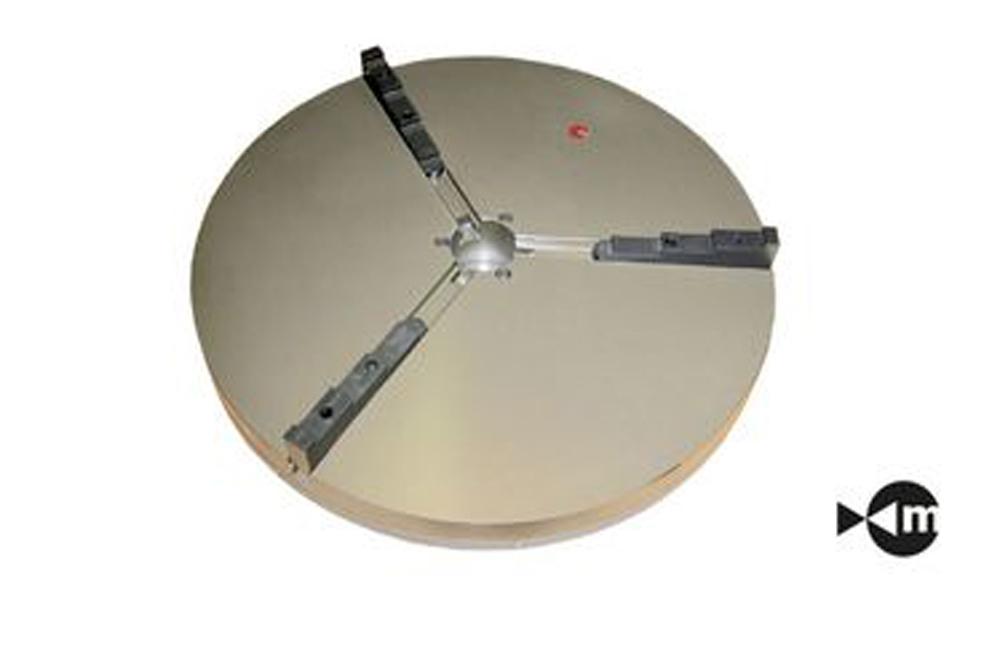

- Special sizes XXL see ZAS XXL
- Even higher accuracies are possible on request
-
Clamping chucks JF ultra-flat
- JF ultra-flat, type A, B, C, W, DW
- JF ultra-flat, type D and type D Reinox
- JF ultra-flat aluminum
- JF Face plates anti-corrosive (Reinox)
- Shanks B, W, C
- Quick Change
-
Clamping chucks ZF ultra short
- 3 ZK 30 Mini, stainless
- 3 ZF ultra short anti-corrosive
- 6 ZF Tool grinding chuck
- ZAS XXL special sizes
- MX Hydraulic
- Quick Change
- 3 ZF ultra short
-
Clamping chucks ZAS
- 3 ZAS – made of high strength aluminum

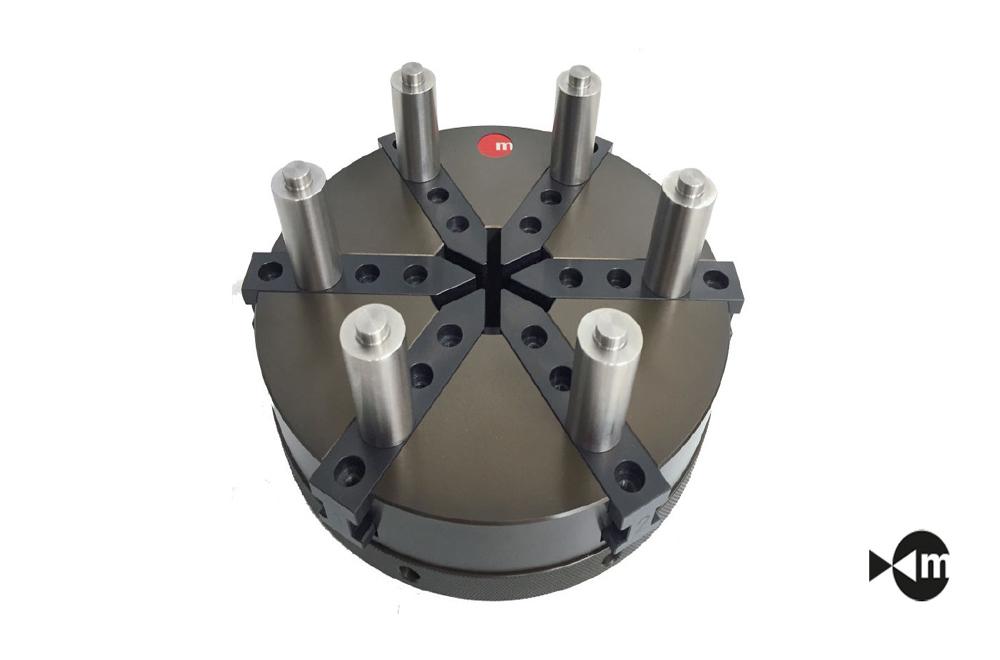

- ZAS pin-jaw chuck

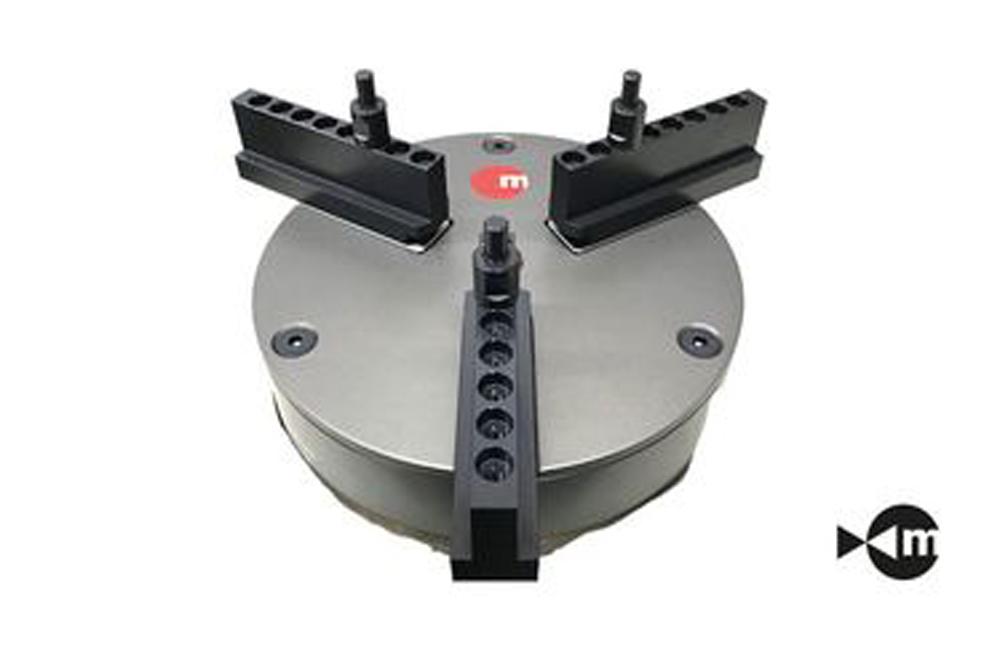

- Maprox AIR – for automation
- ZAS XXL special sizes

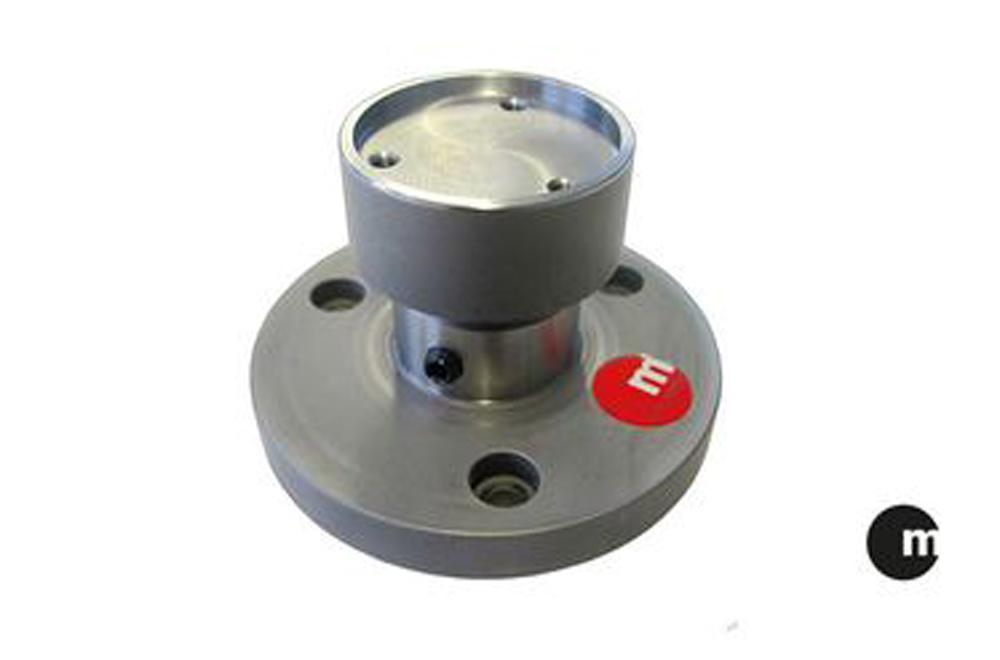

- Quick Change
-
