OVERVIEW
ELECTROSPINDLES ES950 / ES951 E-CORE WI-FI
WORLD FIRST WI-FI CONNECTED ELECTROSPINDLE – PATENT PENDING
HSD Spa introduces the World first Wi-Fi connected Electrospindle, a true 4.0 innovation that will drastically improve the methods of setting, monitoring and maintenance of one of the most important CNC Machine components.
By using a dedicated App, it will be possible to set up a direct smart communication with the Electrospindle using the most common mobile devices.
ES950 - Kw 3,8-S1/4,5-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,5Kw
Torque S1/S6 3Nm/3,6Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 2
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 22kg
Electric fan 24V
Digitale or Fieldbus version
.gif)
*Available on Fieldbus version
.gif)
*Available on Fieldbus version
*Air flow through the shaft tool
ES950 - Kw 5-S1/6-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,5Kw
Torque S1/S6 3Nm/3,6Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 2
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 22kg
Electric fan 24V
Digitale or Fieldbus version
ES950 - Kw 5-S1/6-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 5Kw/6Kw
Torque S1/S6 4Nm/4,8Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 24kg
Electric fan 24V
Digitale or Fieldbus version
ES950 - Kw 5-S1/6-S6 - HSK F63

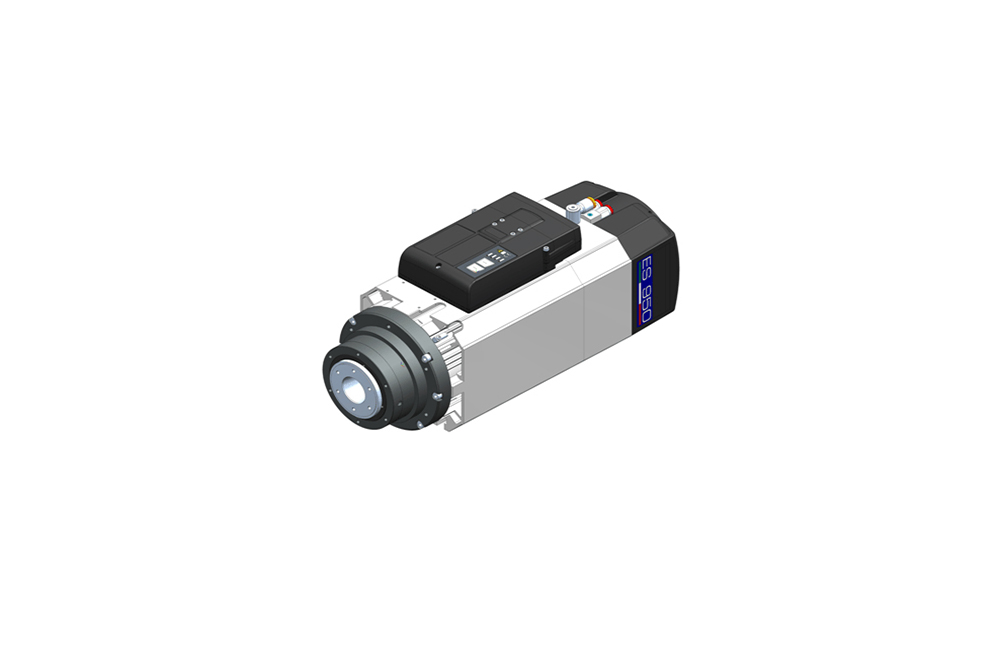

max speed 24.000rpm - rated speed 12.000rpmelectric fan - short nose
ES950 - Kw 5-S1/6-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 5Kw/6Kw
Torque S1/S6 4Nm/4,8Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 22kg
Electric fan 24V
Digitale or Fieldbus version
ES950 - Kw 5-S1/6-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 5Kw/6Kw
Torque S1/S6 4Nm/4,8Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 24kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 6,0-S1/7,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 6,0Kw/7,2Kw
Torque S1/S6 9,5Nm/11,5Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - KW 6,0-S1/7,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 6,0Kw/7,2Kw
Torque S1/S6 9,5Nm/11,5Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 30kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - KW 6,0-S1/7,2-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 6,0Kw/7,2Kw
Torque S1/S6 9,5Nm/11,5Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES951 - Kw 6,0-S1/7,2-S6 - ISO30

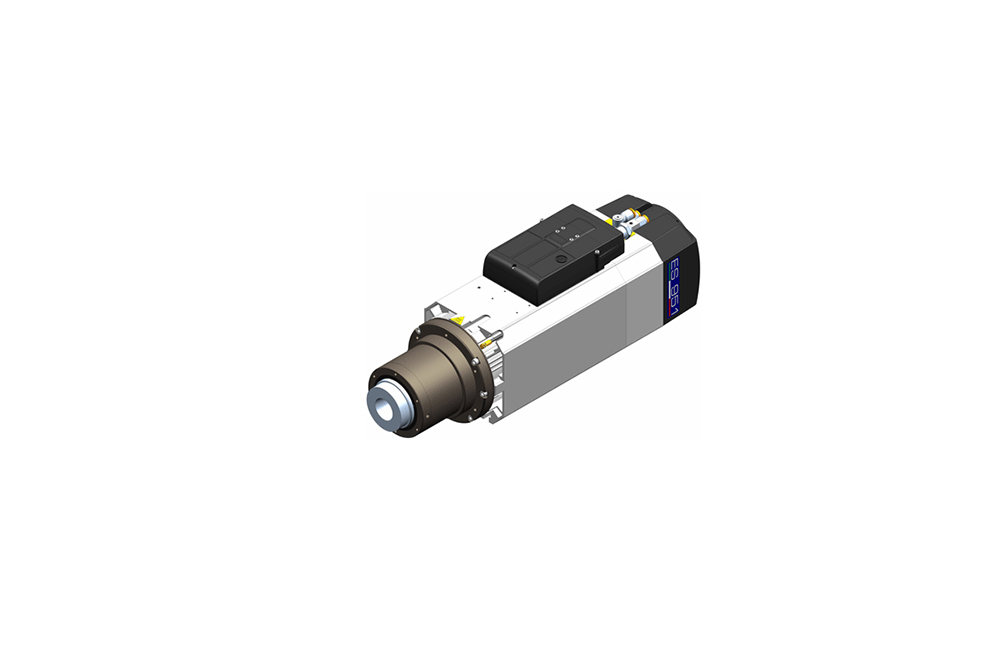

max speed 24.000rpm - rated speed 6.000rpmelectric fan - long nose
ES951 - Kw 6,0-S1/7,2-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 6,0Kw/7,2Kw
Torque S1/S6 9,5Nm/11,5Nm
ISO30
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 6.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
ES950 - Kw 7,5-S1/9-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9Kw
Torque S1/S6 6Nm/7,2Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 20kg
Liquid cooling
Digitale or Fieldbus version
ES951 - Kw 8,0-S1/9,6-S6 - HSK F63
TECHNICAL SPECIFICATIONS
ES951 - Kw 8,0-S1/9,6-S6 - HSK F63
TECHNICAL SPECIFICATIONS
ES951 - Kw 8,0-S1/9,6-S6 - ISO30
TECHNICAL SPECIFICATIONS
ES951 - Kw 8,0-S1/9,6-S6 - ISO30
TECHNICAL SPECIFICATIONS
ES951 - Kw 8,5-S1/10,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
ES951 - Kw 8,5-S1/10,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
ES951 - Kw 8,5-S1/10,2-S6 - ISO30
TECHNICAL SPECIFICATIONS
ES951 - Kw 8,5-S1/10,2-S6 - ISO30
TECHNICAL SPECIFICATIONS
ES951 - Kw 10-S1/12-S6 - HSK F63
TECHNICAL SPECIFICATIONS
ES951 - Kw 10-S1/12-S6 - HSK F63
TECHNICAL SPECIFICATIONS
ES951 - Kw 11-S1/13,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,2Kw
Torque S1/S6 8,7Nm/10,5Nm
HSK F63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 24.000rpm
Rated Speed 12.000rpm
Weight 27kg
Electric fan 24V
Digitale or Fieldbus version
OPTIONS ES951 e-core
*Available on Fieldbus version
*Available on Fieldbus version
*Air flow through the shaft tool
*LB 1Vpp or LB TTL
ES951 - Kw 11-S1/13,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,2Kw Torque S1/S6 8,7Nm/10,5Nm HSK F63 Automatic Tool Blocking with pneumatic piston Voltage 380V Poles 4 Ceramic Bearings Bearings grease lubrication Max Speed 24.000rpm Rated Speed 12.000rpm Weight 27kg Electric fan 24V Digitale or Fieldbus version
ES951 - Kw 11-S1/13,2-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,2Kw Torque S1/S6 8,7Nm/10,5Nm ISO30 Automatic Tool Blocking with pneumatic piston Voltage 380V Poles 4 Ceramic Bearings Bearings grease lubrication Max Speed 24.000rpm Rated Speed 12.000rpm Weight 27kg Electric fan 24V Digitale or Fieldbus version
ES951 - Kw 11-S1/13,2-S6 - ISO30
TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,2Kw Torque S1/S6 8,7Nm/10,5Nm ISO30 Automatic Tool Blocking with pneumatic piston Voltage 380V Poles 4 Ceramic Bearings Bearings grease lubrication Max Speed 24.000rpm Rated Speed 12.000rpm Weight 27kg Electric fan 24V Digitale or Fieldbus version
ES951 - Kw 11-S1/13,2-S6 - ISO40
TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,2Kw Torque S1/S6 8,7Nm/10,5Nm ISO40 Automatic Tool Blocking with pneumatic piston Voltage 220V or 380V Poles 4 Ceramic Bearings Bearings grease lubrication Max Speed 15.000rpm Rated Speed 12.000rpm Weight 31kg Electric fan 24V Digitale or Fieldbus version
ES951 - Kw 16-S1/19,2-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 16Kw/19,2Kw Torque S1/S6 12,7Nm/15,3Nm HSK F63 Automatic Tool Blocking with pneumatic piston Voltage 380V Poles 4 Ceramic Bearings Bearings grease lubrication Max Speed 24.000rpm Rated Speed 12.000rpm Weight 30kg Liquid Digitale or Fieldbus version
ES951 - Kw 16-S1/19,2-S6 - HSK E63
TECHNICAL SPECIFICATIONS
Power S1/S6 16Kw/19,2Kw Torque S1/S6 19Nm/22,8Nm HSK E63 Automatic Tool Blocking with pneumatic piston Voltage 380V Poles 4 Ceramic Bearings Bearings grease lubrication Max Speed 18.000rpm Rated Speed 8.000rpm Weight 30kg Liquid Digitale or Fieldbus version
ES951 - Kw 25-S1/30-S6 - HSK F63
TECHNICAL SPECIFICATIONS
Power S1/S6 25Kw/30Kw Torque S1/S6 23,9Nm/28,6Nm HSK F63 Automatic Tool Blocking with pneumatic piston Voltage 380V Poles 4 Ceramic Bearings Bearings grease lubrication Max Speed 18.000rpm Rated Speed 10.000rpm Weight 30kg Liquid Digitale or Fieldbus version
ES951 - Kw 25-S1/30-S6 - HSK E63
TECHNICAL SPECIFICATIONS
Power S1/S6 25Kw/30Kw Torque S1/S6 23,9Nm/28,6Nm HSK E63 Automatic Tool Blocking with pneumatic piston Voltage 380V Poles 4 Ceramic Bearings Bearings grease lubrication Max Speed 18.000rpm Rated Speed 10.000rpm Weight 30kg Liquid Digitale or Fieldbus version
ES951 - Kw 25-S1/30-S6 - HSK E63
TECHNICAL SPECIFICATIONS
Power S1/S6 25Kw/30Kw
Torque S1/S6 23,9Nm/28,6Nm
HSK E63
Automatic Tool Blocking with pneumatic piston
Voltage 380V
Poles 4
Ceramic Bearings
Bearings grease lubrication
Max Speed 18.000rpm
Rated Speed 10.000rpm
Weight 30kg
Liquid
Digitale or Fieldbus version
