Electrospindles Automatic Toolchange

CATEGORY: WOOD LINE
Back Enquire

OVERVIEW

MOTOR SPINDLES
HSD quick-change air-cooled and liquid-cooled motor spindles are world leaders in the machining of wood, aluminium and plastics. The spindles, produced in their thousands, are characterised by their extremely high reliability andthe wide range of powers and operating speeds available.
The declared power ratings are guaranteed during continuous service, while the power available for machining can be up to 100% higher during discontinuous operation.
Each mechanical, pneumatic and electronic component used in the HSD electrospindles undergoes a double testing phase that guarantees optimum quality standards.
HSD is the leading world company in the production of electrospindles.

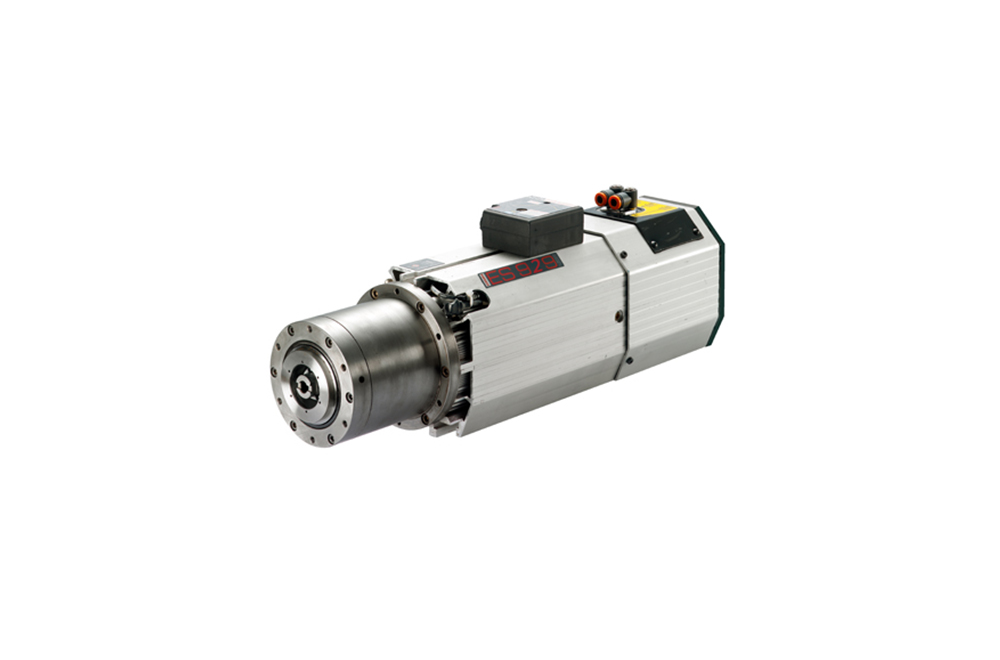

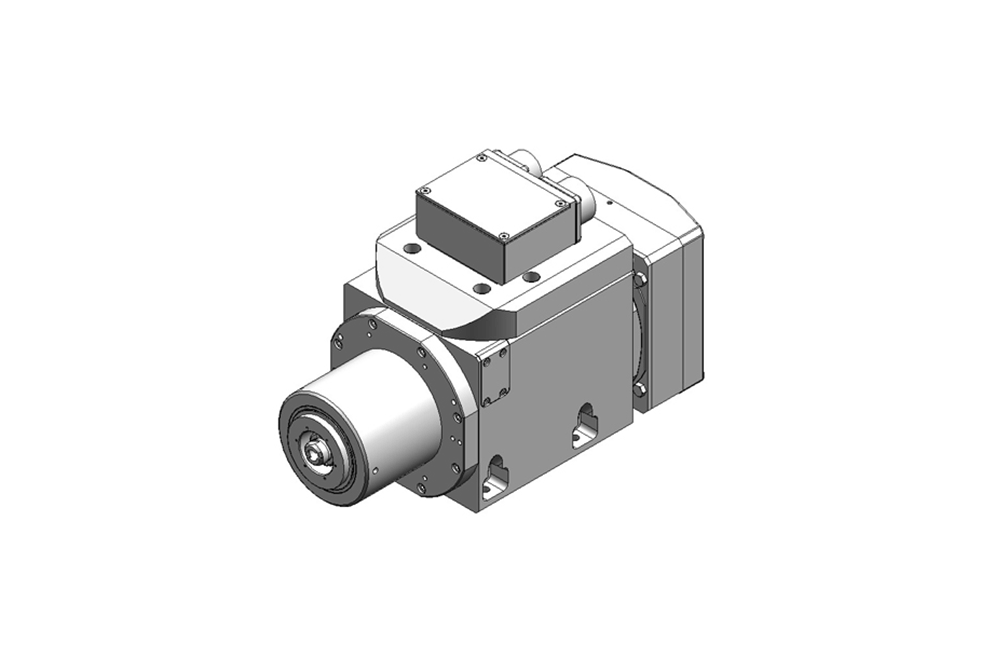

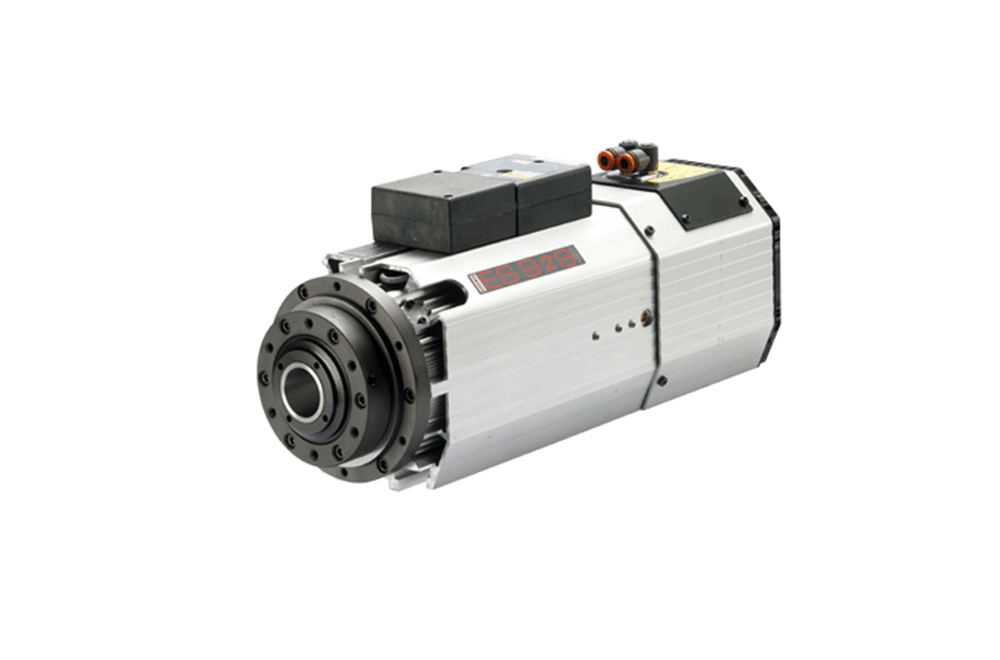

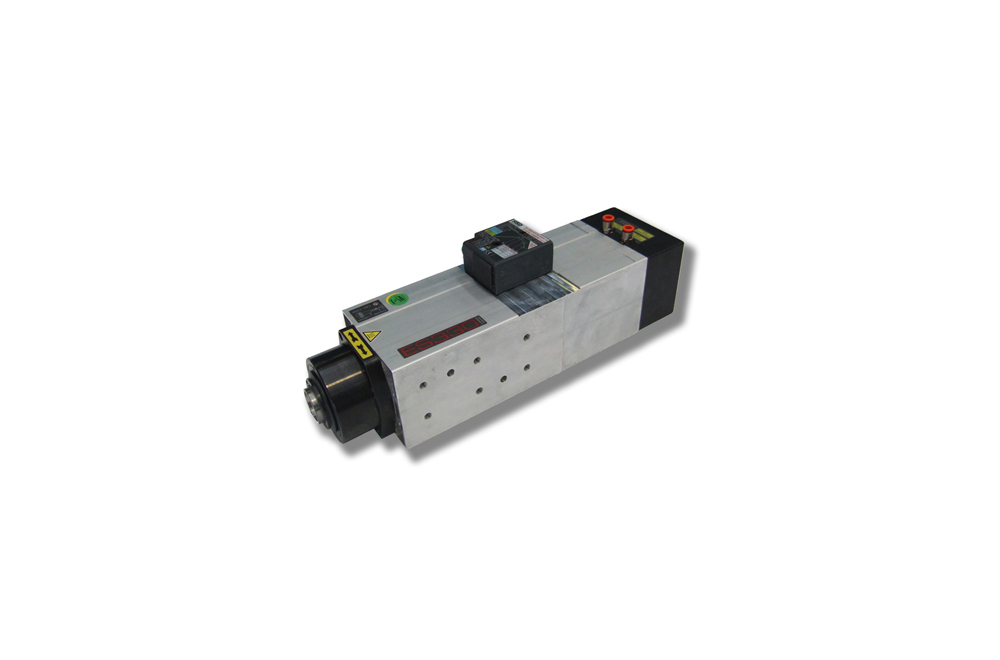

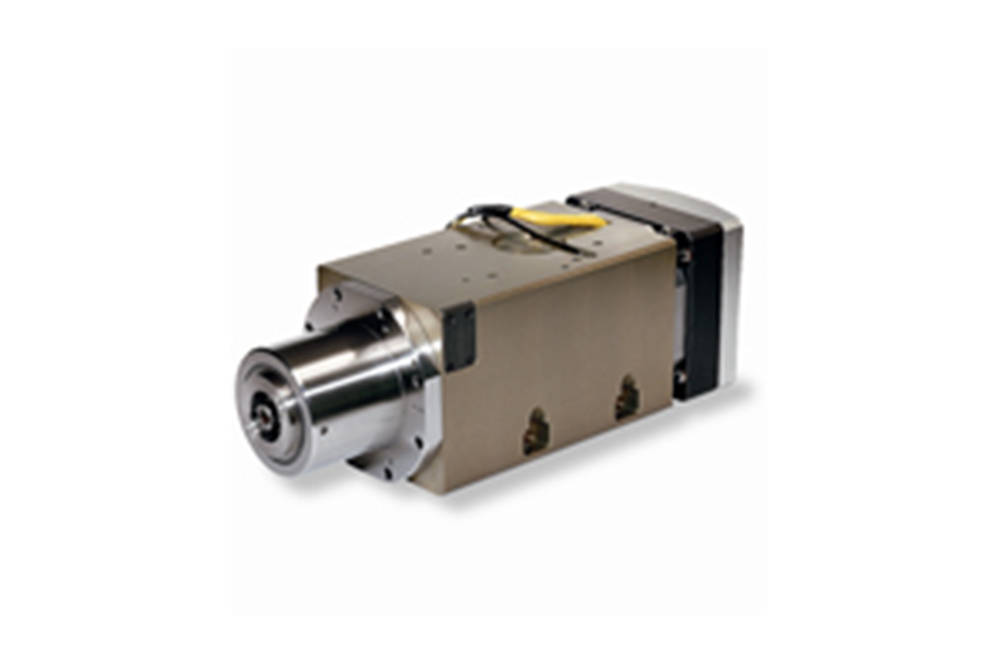

ES915 - H6161H0636

Kw 3,8-S1/4,6-S6 - ISO30

forced air cooling 380V steel bearings short nose - 20.000rpm

ES915 - H6161H0636

TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 2
Bearings Steel
Bearings lubrication Long Life lubricated
Max Rpm 20.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Forced Air Plate

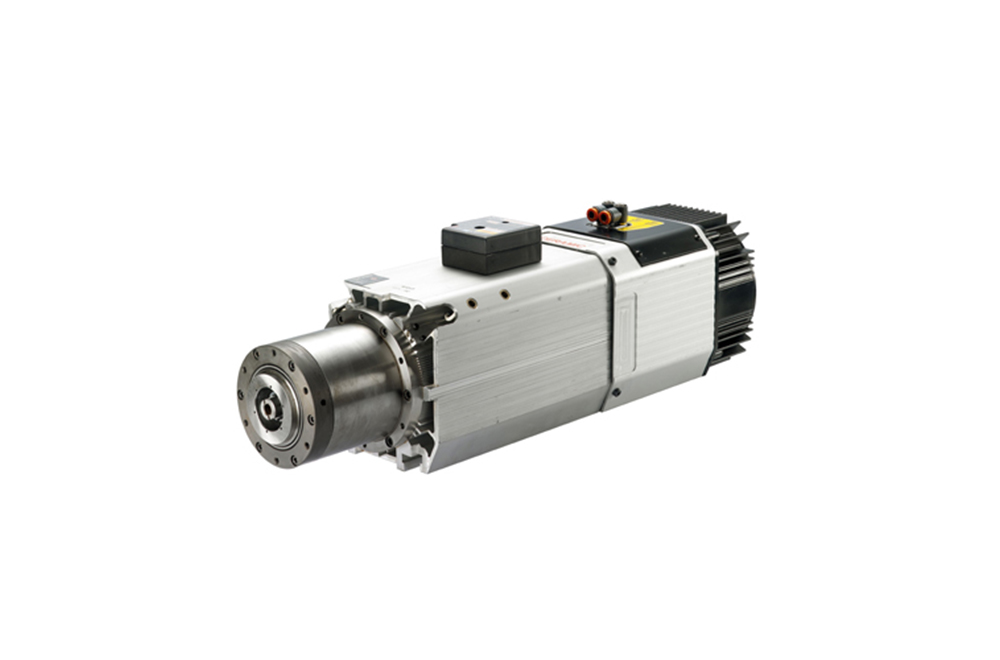

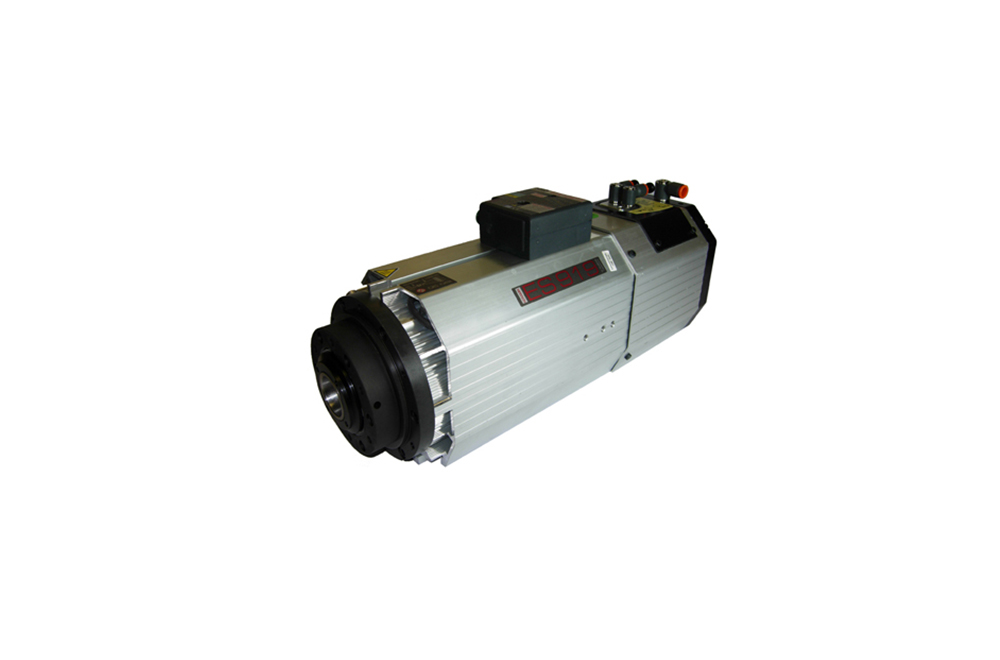

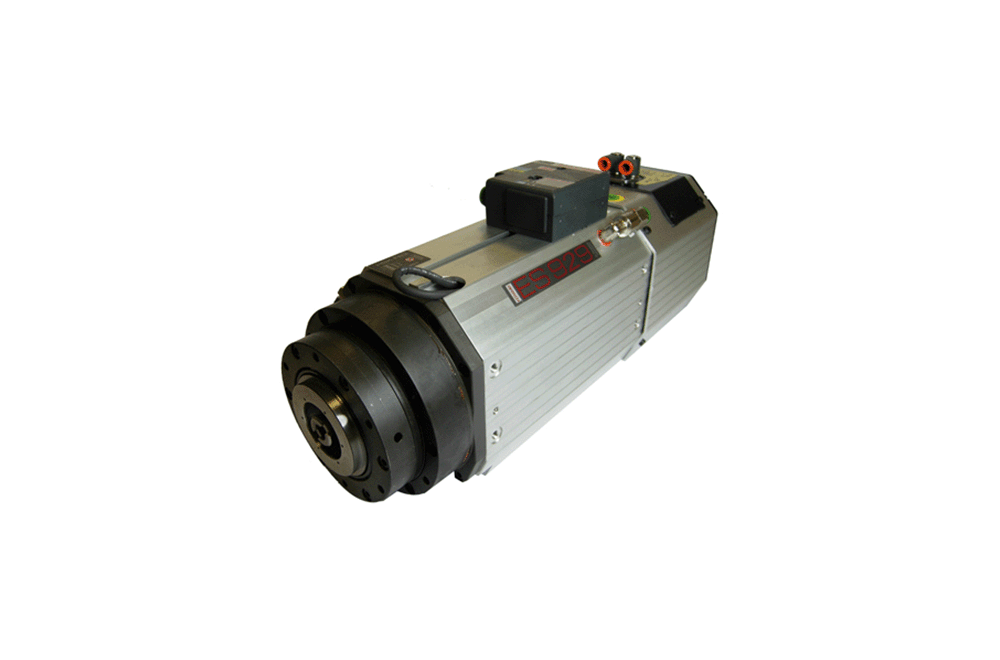

ES915 - H6161H0310

Kw 3,8-S1/4,6-S6 - ISO30

electric fan cooling 380V short nose - 24.000rpm

ES915 - H6161H0310

TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Nose Short Nose
Ratered Voltage 380
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan

ES915 - H6161H0461

Kw 3,8-S1/4,6-S6 - ISO30

electric fan cooling 220/380V short nose - 24.000rpm

ES915 - H6161H0461

TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Nose Short Nose
Ratered Voltage 380/220V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan

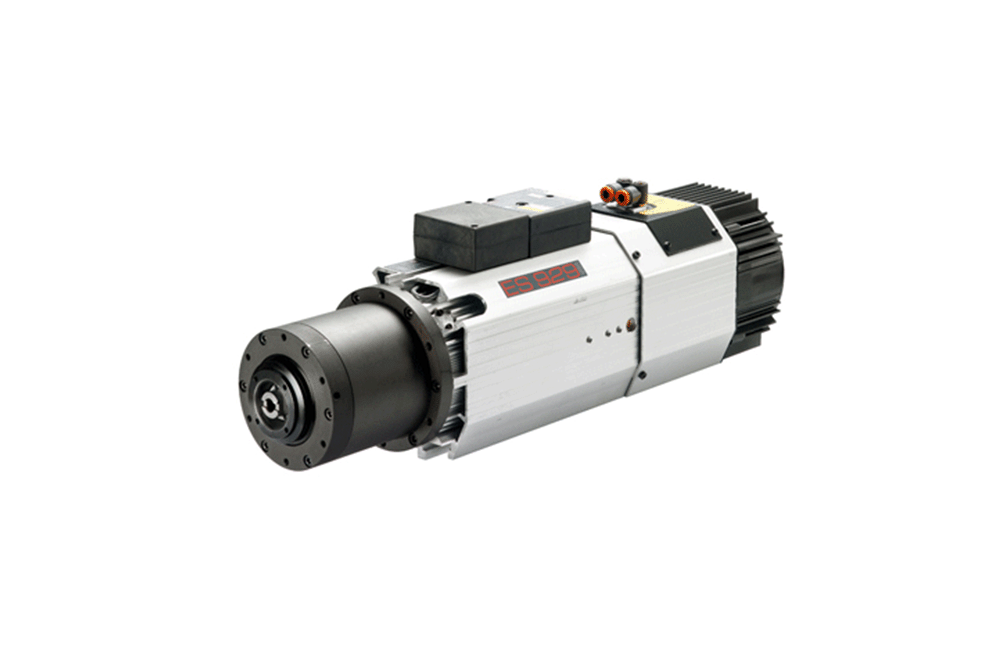

ES915 - H6161H0464

Kw 3,8-S1/4,6-S6 - ISO30

electric fan cooling 220/380V long nose - 24.000rpm

ES915 - H6161H0464

TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380/220V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan

ES915 - H6161H0284A

Kw 3,8-S1/4,6-S6 - ISO30

electric fan cooling 220V short nose - 24.000rpm

ES915 - H6161H0284A

TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Nose Short Nose
Ratered Voltage 220V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan

ES915 - H6161H0308

Kw 3,8-S1/4,6-S6 - ISO30

electric fan cooling 380V short nose - 24.000rpm

ES915 - H6161H0308

TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan

ES915 - H6161H0309

Kw 3,8-S1/4,6-S6 - ISO30

electric fan cooling 220/380V short nose - 24.000rpm

ES915 - H6161H0309

TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380/220V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan

ES915 - H6161H0763

Kw 3,8-S1/4,6-S6 - ISO30

forced air cooling 220/380V long nose - 24.000rpm

ES915 - H6161H0763

TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380/220V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Forced Air Plate

ES915 - H6161H0633

Kw 3,8-S1/4,6-S6 - ISO30

forced air cooling 220/380V short nose - 24.000rpm

ES915 - H6161H0633

TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Nose Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Forced Air Plate

ES915 - H6161H0380

Kw 5,0-S1/6,0-S6 - ISO30

electric fan cooling 380V short nose - 24.000rpm

ES915 - H6161H0380

TECHNICAL SPECIFICATIONS
Power S1/S6 5Kw/6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 29Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan

ES915 - H6161H0445

Kw 5,0-S1/6,0-S6 - ISO30

forced air cooling 380V short nose - 24.000rpm

ES915 - H6161H0445

TECHNICAL SPECIFICATIONS
Power S1/S6 5,0Kw/6,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 29Kg
Spindle Body Alluminium Alloy
Cooling Forced Air Plate

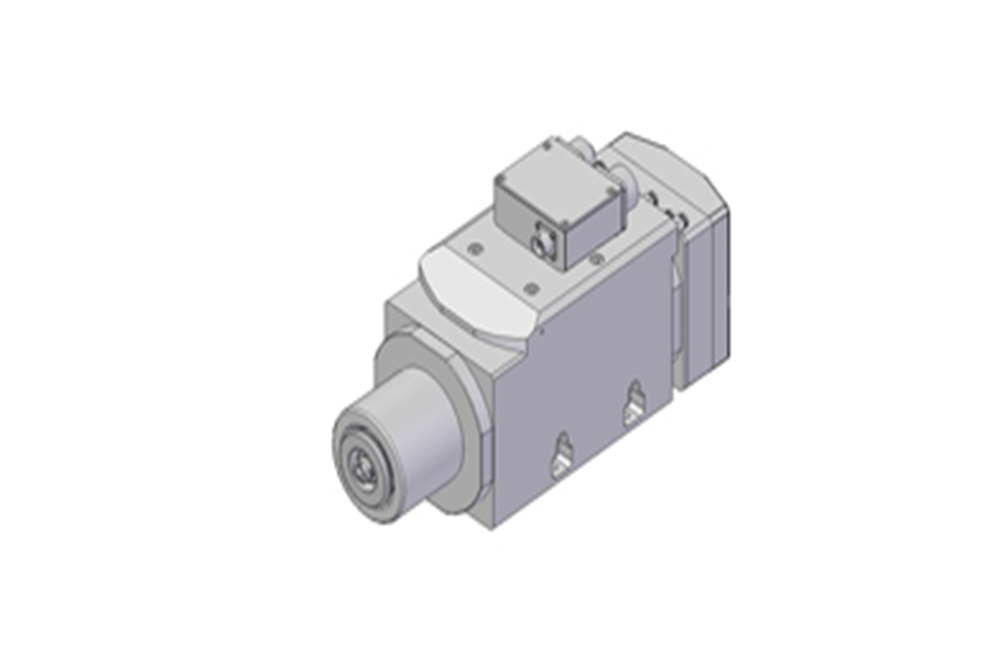

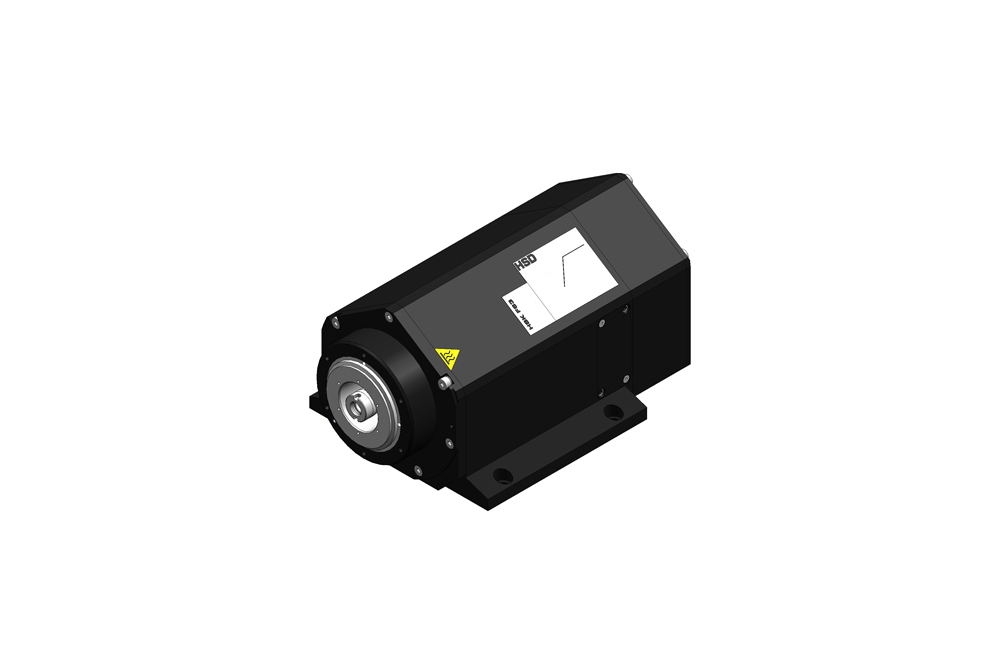

ES330 - H6161090A2

Kw 4,0-S1/4,5-S6 - ISO30

electric fan cooling 220V short nose - 24.000rpm

ES330 - H6161090A2

TECHNICAL SPECIFICATIONS
Power S1/S6 4,0Kw/4,5Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 220V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Electic-Fan

ES330 - H6161090A6

Kw 4,0-S1/4,5-S6 - ISO30

electric fan cooling 380V short nose - 24.000rpm

ES330 - H6161090A6

TECHNICAL SPECIFICATIONS
Power S1/S6 4,0Kw/4,5Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Electric-Fan

ES330 - H6161H1041

Kw 5,5-S1/6,6-S6 - ISO30

liquid cooling 380V short nose - 24.000rpm

ES330 - H6161H1041

TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Iron
Cooling Liquid

ES915 - H6161H0752

Kw 6,5-S1/7,6-S6 - HSK E40/F50

long nose - 32.000rpm forced air cooling 380V

ES915 - H6161H0752

TECHNICAL SPECIFICATIONS

Power S1/S6 6,5Kw/7,5Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V

Ceramic Bearings
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 32.000
Spindle Body Alluminium Alloy
Cooling Liquid

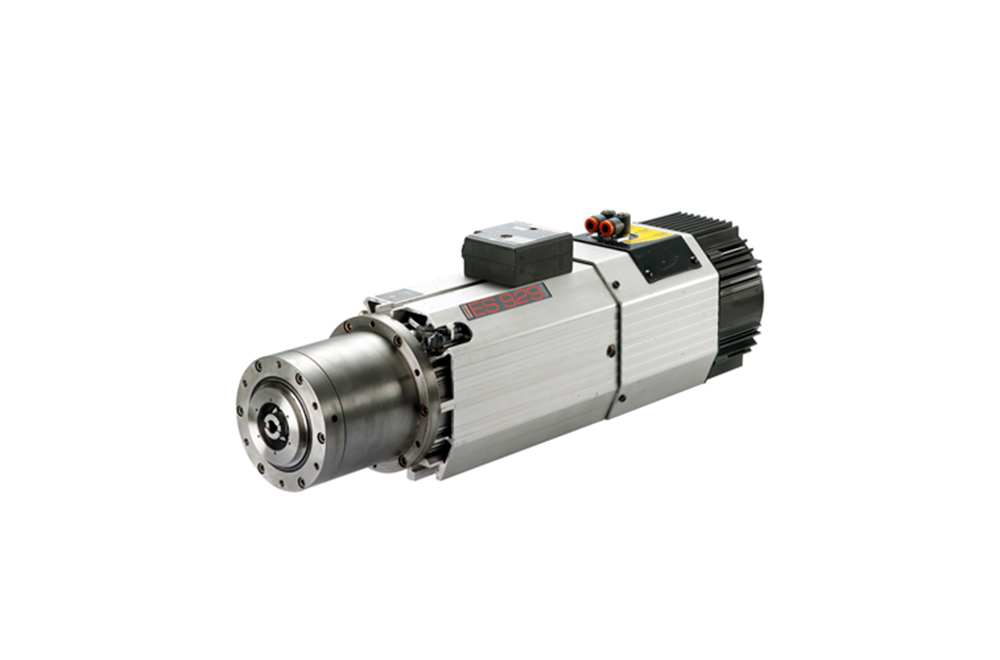

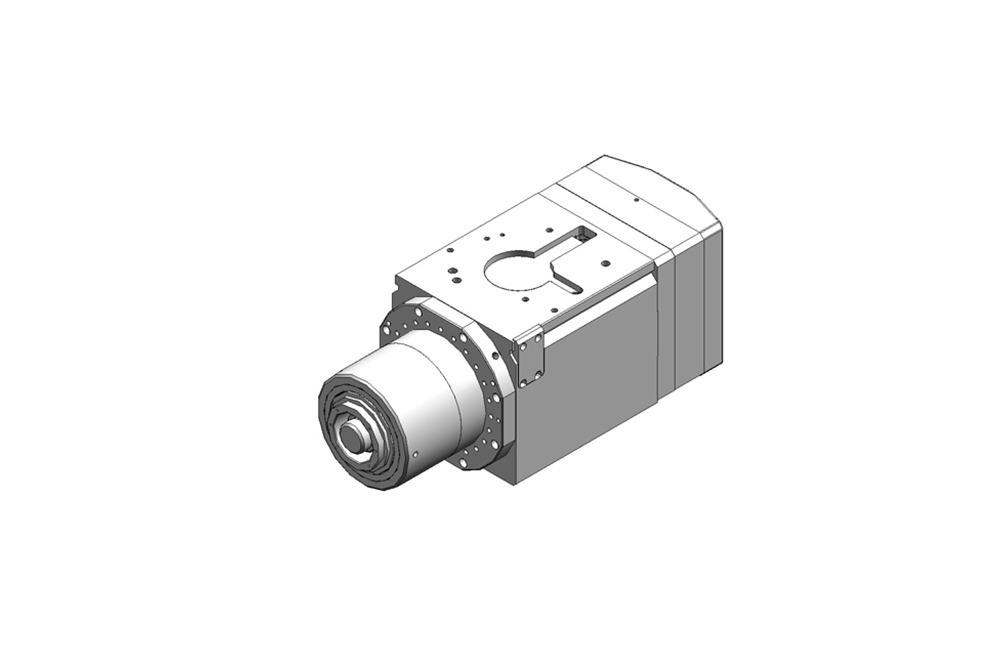

ES929 - H6161H0970

Kw 7,5-S1/8,6-S6 - ISO 30

short nose - 24.000rpm - forced air cooling 380V

ES929 - H6161H0970

TECHNICAL SPECIFICATIONS

Power S1/S6 7,5Kw/8,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Weight 26kg
Cooling forced air

ES925 - H6161H0596

Kw 7,5-S1/10,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES925 - H6161H0596

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/10,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 29Kg
Spindle Body Alluminium Alloy
Cooling Liquid

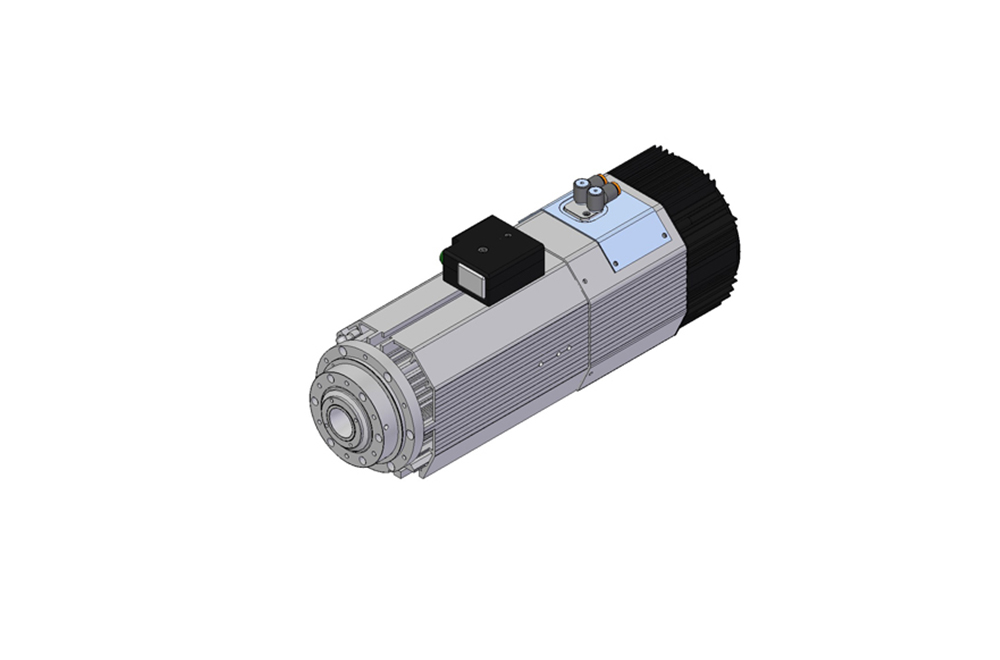

ES929 - H6161H0817

Kw 7,5-S1/9,0-S6 - ISO 30

short nose - 24.000rpm - electric fan cooling 380V

ES929 - H6161H0817

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

ES929 - H6161H1027

Kw 5,5-S1/6,6-S6 - HSK F63

short nose - 20.000rpm - forced air cooling 380V

ES929 - H6161H1027

TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 20.000
Weight 26Kg
Spindle Body Alluminium Alloy
Forced air cooling

ES929 - H6161H1030

Kw 7,5-S1/8,6-S6 - HSK F63

short nose - 24.000rpm - forced air cooling 380V

ES929 - H6161H1030

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/8,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Forced Air Cooling

ES896 - H6161H0966

Kw 12-S1/14-S6 - ISO40

short nose - 15.000rpm - liquid cooling 380V

ES896 - H6161H0966

TECHNICAL SPECIFICATIONS
Power S1/S6 12Kw/14Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 15.000
Spindle Body Alluminium Alloy
Cooling Liqui

ES929 - H6161H0819

Kw 7,5-S1/9,0-S6 - ISO 30

short nose - 24.000rpm - electric fan cooling 380V - ceramic bearings

ES929 - H6161H0819

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

ES929 - H6161H0820

Kw 7,5-S1/9,0-S6 - ISO 30

short nose - 24.000rpm - electric fan cooling 220/380V

ES929 - H6161H0820

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 220/380V
Encoder not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

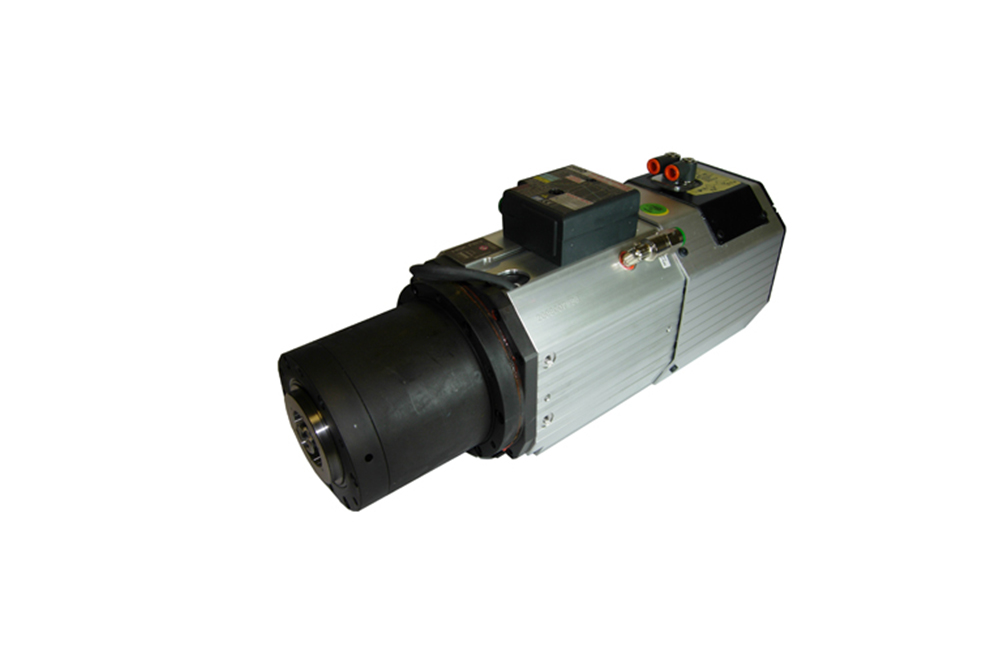

ES929 - H6161H0992

Kw 10-S1/12-S6 - HSK F63

long nose - 24.000rpm - electric fan cooling 220/380V

ES929 - H6161H0992

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Weight 31kg
Cooling Electric fan

ES929 - H6161H0996

Kw 10-S1/12-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 220/380V

ES929 - H6161H0996

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Weight 31kg
Liquid cooling

ES929 - H6161H0824

Kw 7,5-S1/9,0-S6 - ISO 30

short nose - 24.000rpm - electric fan cooling 220/380V - ceramic bearings

ES929 - H6161H0824

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 220/380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

ES929 - H6161H0836

Kw 5,5-S1/6,6-S6 - ISO 30

short nose - 20.000rpm - electric fan cooling 380V

ES929 - H6161H0836

TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 20.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

ES929 - H6161H0838

Kw 7,5-S1/9,0-S6 - ISO30

short nose - 24.000rpm - forced air cooling 380V

ES929 - H6161H0838

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Forced Air

ES929 - H6161H0838

Kw 7,5-S1/9,0-S6 - ISO30

short nose - 24.000rpm - forced air cooling 380V

ES929 - H6161H0838

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Forced Air

ES929 - H6161H0837

Kw 5,5-S1/6,6-S6 - ISO 30

short nose - 20.000rpm - air forced cooling 380V

ES929 - H6161H0837

TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 20.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Forced Air

ES929 - H6161H0977

Kw 5,5-S1/6,6-S6 - ISO 30

long nose - 20.000rpm - electric fan cooling 380V

ES929 - H6161H0977

TECHNICAL SPECIFICATIONS

Power S1/S6 5,5Kw/6,6Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Steel
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 20.000

Weight 34kg
Spindle Body Alluminium Alloy
Cooling Electric fan

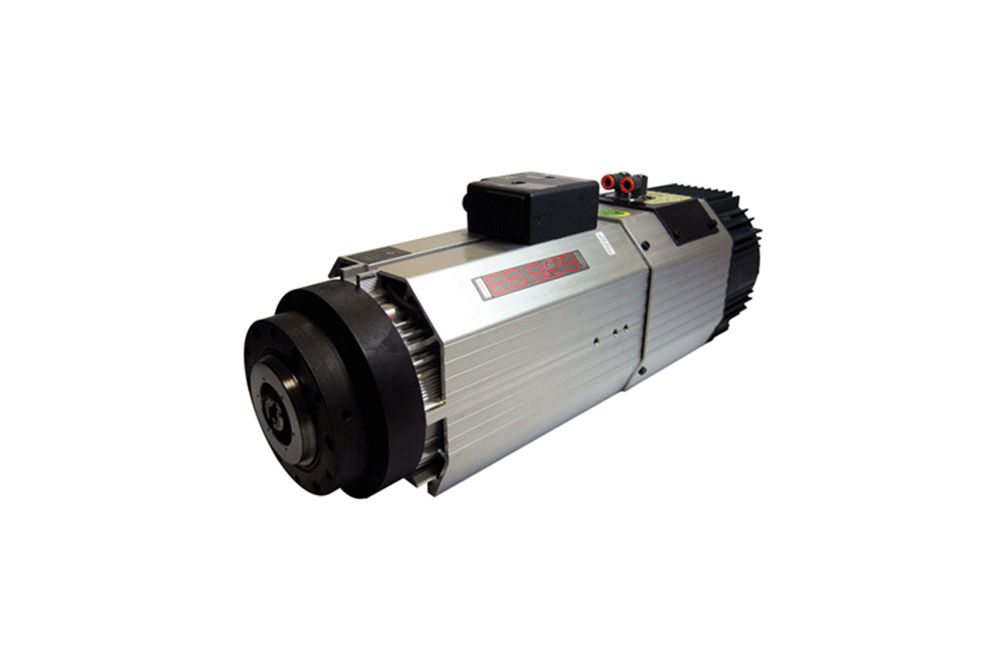

ES929 - H6161H0823

Kw 7,5-S1/9,0-S6 - ISO 30

long nose - 24.000rpm - electric fan cooling 380V

ES929 - H6161H0823

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

ES929 - H6161H0821

Kw 7,5-S1/9,0-S6 - ISO 30

long nose - 24.000rpm - electric fan cooling 220/380V

ES929 - H6161H0821

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 220/380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24000,00
Weight 31,00Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

ES929 - H6161H0822

Kw 7,5-S1/9,0-S6 - ISO 30

long nose - 24.000rpm - electric fan cooling 220/380V - ceramic bearings

ES929 - H6161H0822

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

ES929 - H6161H0766

Kw 10,0-S1/12,0-S6 - ISO 30

long nose - 24.000rpm - electric fan cooling 380V

ES929 - H6161H0766

TECHNICAL SPECIFICATIONS
Power S1/S6 10,0Kw/12,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

ES929 - H6161H0835

Kw 12,0-S1/14,0-S6 - ISO 30

short nose - 24.000rpm - liquid cooling 380V

ES929 - H6161H0835

TECHNICAL SPECIFICATIONS
Power S1/S6 12,0Kw/14,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Liquid

ES929 - H6161H0892

Kw 12,0-S1/14,0-S6 - ISO 30

long nose - 28.000rpm - liquid cooling 380V

ES929 - H6161H0892

TECHNICAL SPECIFICATIONS

Power S1/S6 12,0Kw/14,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 28.000
Weight 34Kg
Spindle Body Alluminium Alloy
Cooling Liquid


ES929 - H6161H0806

Kw 7,5-S1/9,0-S6 - HSK F63

long nose - 24.000rpm - electric fan cooling 380V

ES929 - H6161H0806

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan


ES929 - H6161H0903

Kw 5,5-S1/6-S6 - HSK F63

short nose - 20.000rpm - electric fan cooling 380V

ES929 - H6161H0903

TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 20.000
Weight 28Kg
Spindle Body Alluminium Alloy
Cooling Electric fan


ES929 - H6161H0808

Kw 7,5-S1/9,0-S6 - HSK F63

long nose - 24.000rpm - air forced cooling 380V

ES929 - H6161H0808

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Forced Air


ES929 - H6161H0902

Kw 7,5-S1/9-S6 - HSK F63

short nose - 24.000rpm - electric fan cooling 380V

ES929 - H6161H0902

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 28Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

ES929 - H6161H0563

Kw 8,0-S1/9,5-S6 - HSK F63

long nose - 24.000rpm - electric fan cooling 220V

ES929 - H6161H0563

TECHNICAL SPECIFICATIONS
Power S1/S6 8,0Kw/9,5Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan


ES929 - H6161H0904

Kw 10-S1/12-S6 - HSK F63

short nose - 24.000rpm - forced air cooling 380V

ES929 - H6161H0904

TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Forced Air

ES929 - H6161H0736

Kw 10,0-S1/12,0-S6 - HSK F63

short nose - 24.000rpm - electric fan cooling 380V

ES929 - H6161H0736

TECHNICAL SPECIFICATIONS
Power S1/S6 10,0Kw/12,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan

ES929 - H6161H0905

Kw 12-S1/14-S6 - HSK F63

short nose - 24.000rpm - liquid cooling 380V

ES929 - H6161H0905

TECHNICAL SPECIFICATIONS
Power S1/S6 12Kw/14Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Liquid

ES929 - H6161H0669

Kw 10,0-S1/12,0-S6 - HSK F63

long nose - 24.000rpm - electric fan 380V

ES929 - H6161H0669

TECHNICAL SPECIFICATIONS
Power S1/S6 10,0Kw/12,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan


ES929 - H6161H0677

Kw 10,0-S1/12,0-S6 - HSK F63

long nose - 24.000rpm - air forced cooling 380V

ES929 - H6161H0677

TECHNICAL SPECIFICATIONS
Power S1/S6 10,0Kw/12,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Forced Air


ES929 - H6161H0753

Kw 7,5-S1/8,6-S6 - HSK F63

long nose - 24.000rpm - electric fan cooling 380V

ES929 - H6161H0753

TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/8,6Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Forced Air

ES929 - H6161H0807

Kw 12,0-S1/14,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES929 - H6161H0807

TECHNICAL SPECIFICATIONS

Power S1/S6 12,0Kw/14,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Liquid

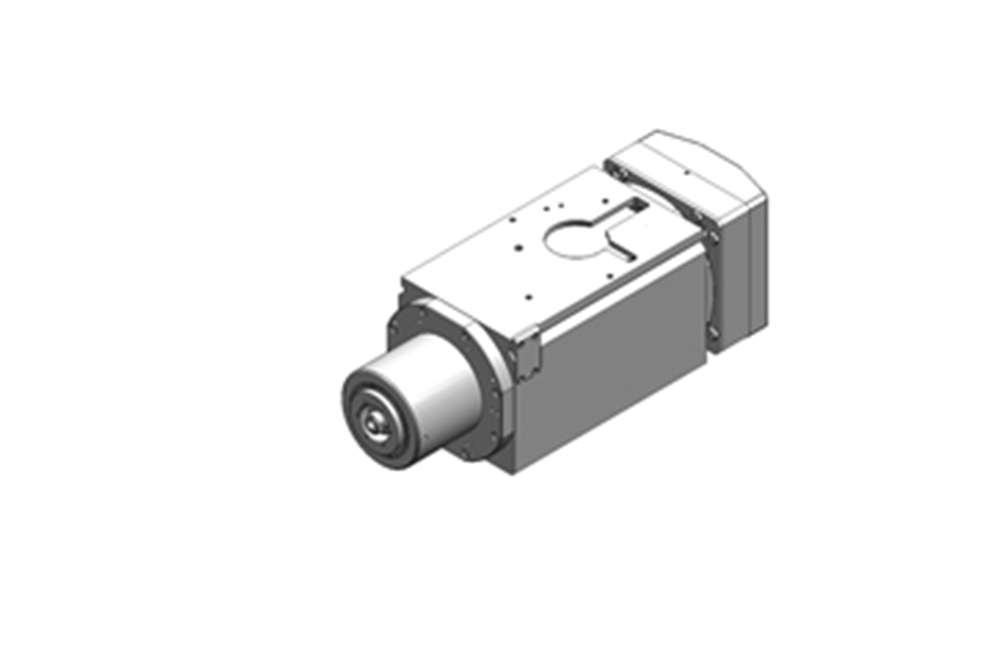

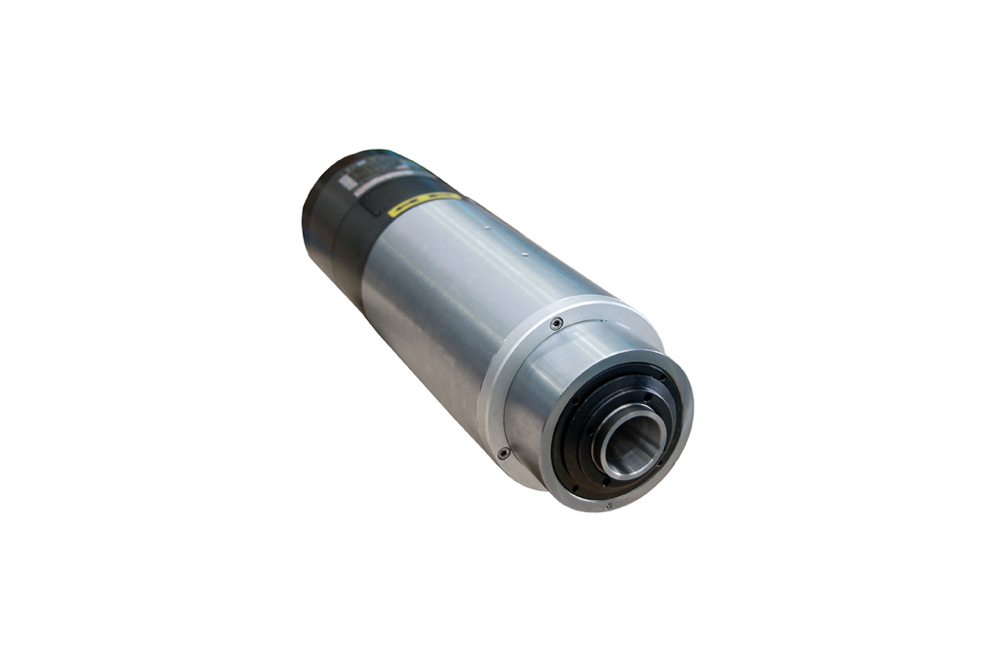

ES369 - H6161H0974 Asynchronous

Kw 7-S1/8,7-S6 - HSK F63

20.000rpm - liquid cooling 380V

ES369 - H6161H0974 Asynchronous

TECHNICAL SPECIFICATIONS
Power S1/S6 7Kw/8,7Kw Asynchronous
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder Not Available
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 20.000
Weight 20Kg
Spindle Body Alluminium Alloy
Liquid cooling

ES369 - H6161H1076 Synchronous

Kw 9-S1/11-S6 - HSK F63

20.000rpm - liquid cooling 380V

ES369 - H6161H1076 Synchronous

TECHNICAL SPECIFICATIONS
Power S1/S6 9Kw/11Kw Synchronous
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder Not Available
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 20.000
Weight 20Kg
Spindle Body Alluminium Alloy
Liquid cooling


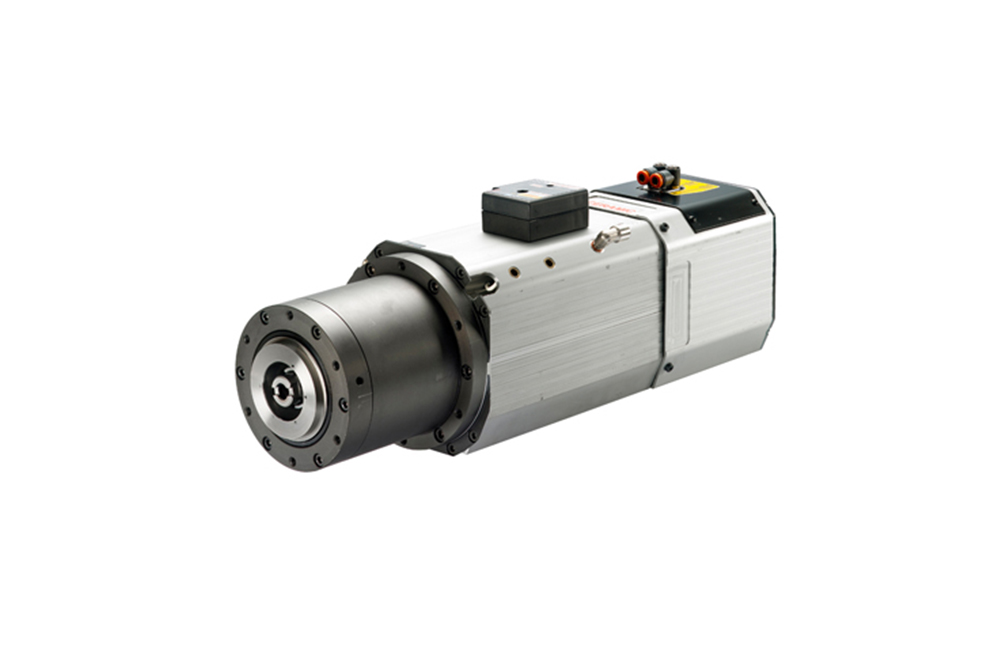

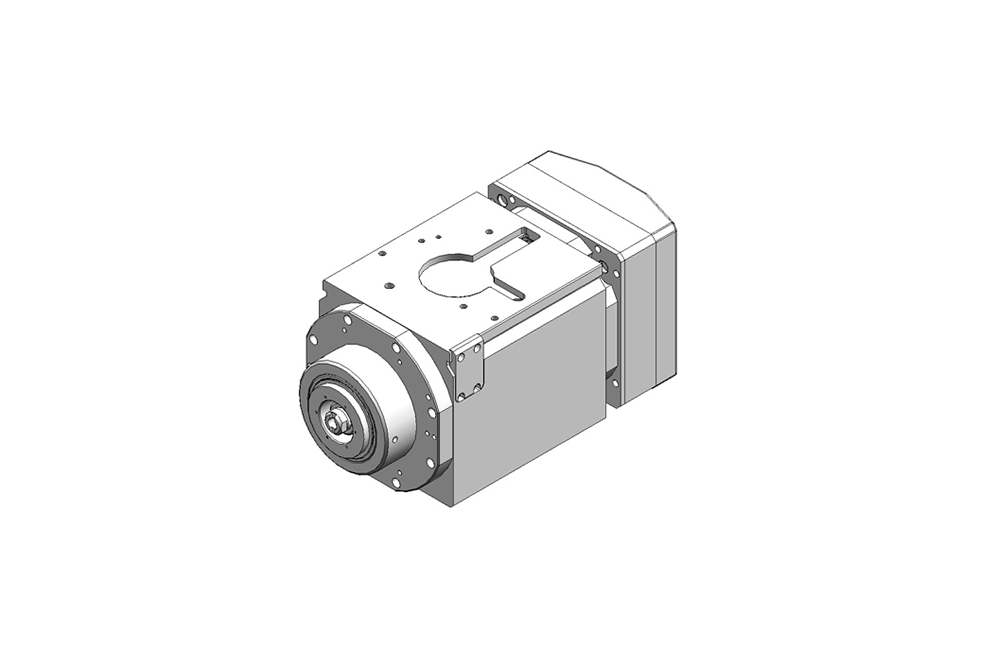

ES988 - H6161H0326

Kw 11,0-S1/13,5-S6 - HSK F63

short nose- 24.000rpm - electric fan cooling 380V

ES988 - H6161H0326

TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,5Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder non available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Spindle Body Alluminium Alloy
Cooling electric fan

ES988 - H6161H0328

Kw 11,0-S1/13,5-S6 - HSK F63

long nose- 24.000rpm - electric fan cooling 380V

ES988 - H6161H0328

TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,5Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder non available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24000,00
Spindle Body Alluminium Alloy
Cooling electric fan

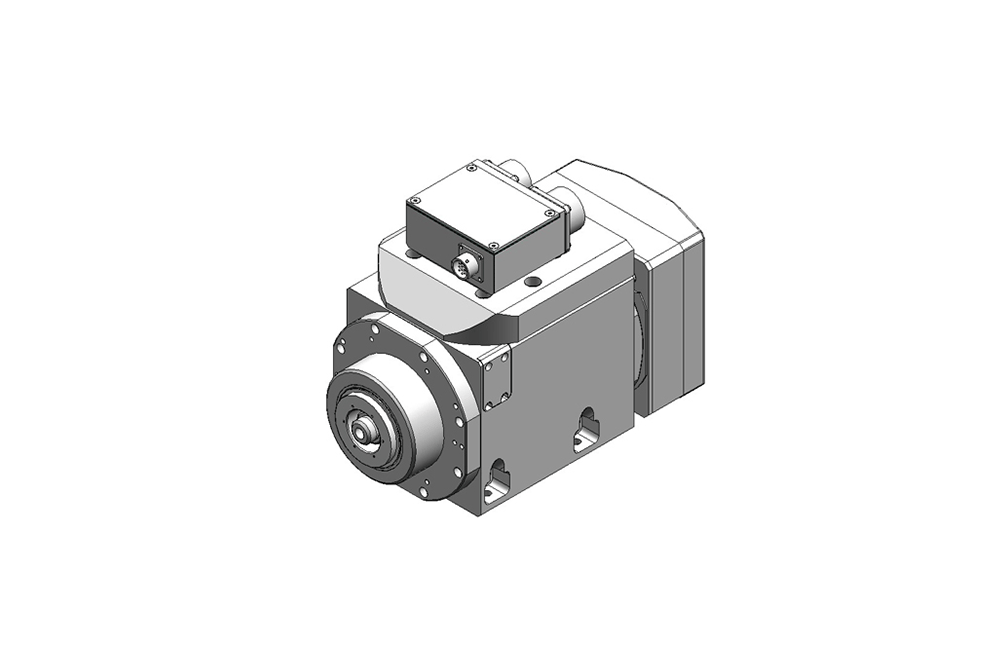

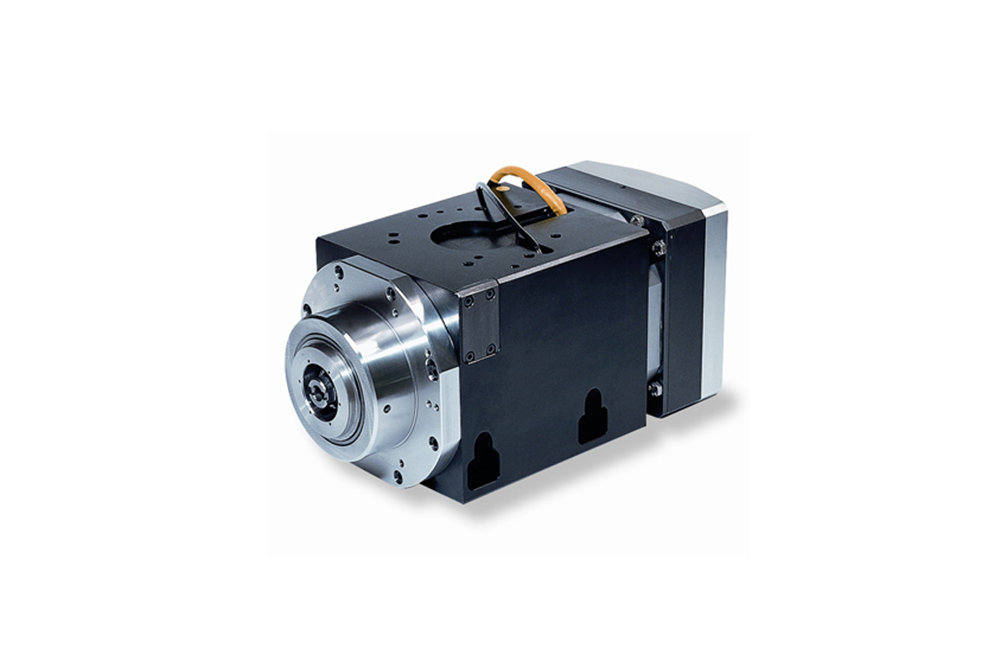

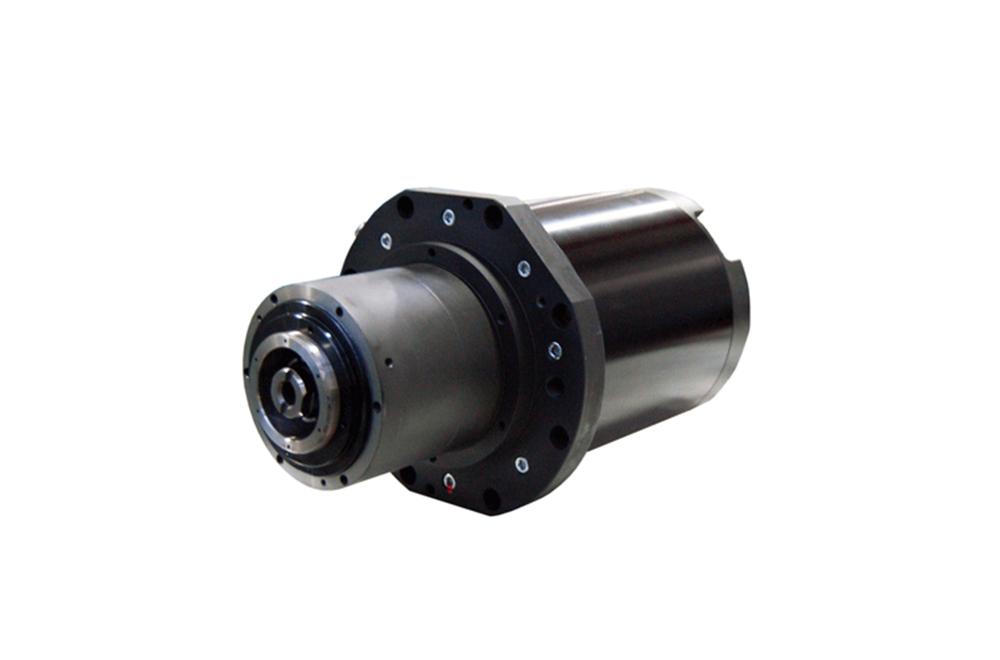

ES779 - H6161H1064

Kw 10,0-S1/12,0-S6 - HSK F63

short nose - 24.000rpm - liquid cooling 380V - special holes

ES779 - H6161H1064

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Special fixing holes
Cooling Liquid

ES779 - H6161H0481A

Kw 10,0-S1/12,0-S6 - HSK F50

short nose - 28.000rpm - liquid cooling 380V - holes

ES779 - H6161H0481A

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 28.000
Spindle Body Alluminium Alloy

Standard fixing holes
Cooling Liquid

ES779 - H6161H0517A

Kw 10,0-S1/12,0-S6 - HSK F63

short nose - 24.000rpm - liquid cooling 380V - encoder LB 1Vpp - holes

ES779 - H6161H0517A

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Standard fixing holes
Cooling Liquid

ES779 - H6161H0534

Kw 10,0-S1/12,0-S6 - HSK F63

short nose - 24.000rpm - liquid cooling 380V - encoder LB TTL - holes

ES779 - H6161H0534

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Standard fixing holes
Cooling Liquid

ES779 - H6161H1121

Kw 10,0-S1/12,0-S6 - HSK F63

short nose - 24.000rpm - liquid cooling 380V - holes - military elect. conn.

ES779 - H6161H1121

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Standard fixing holes

Military electrical connection
Cooling Liquid

ES779 - H6161H0588A

Kw 10,0-S1/12,0-S6 - HSK F63

short nose - 24.000rpm - liquid cooling 380V - special holes

ES779 - H6161H0588A

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Special fixing holes
Cooling Liquid

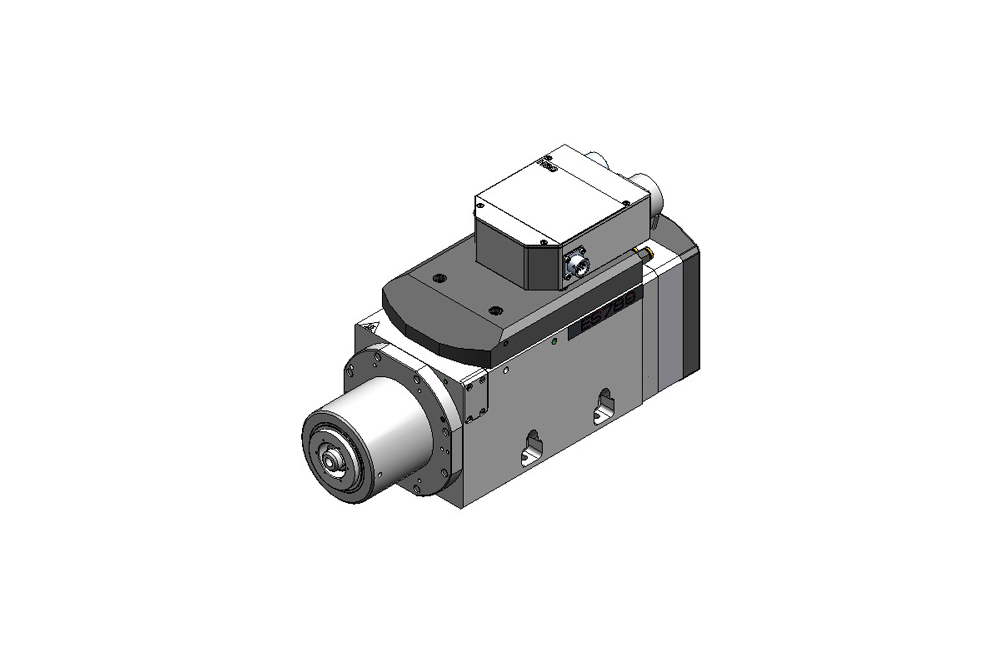

ES779 - H6161H1082

Kw 10-S1/12-S6 - HSK F63

long nose - 25.000rpm - liquid cooling 380V - special holes

ES779 - H6161H1082

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 25.000
Spindle Body Alluminium Alloy

Special fixing holes
Cooling Liquid

ES779 - H6161H0592A

Kw 10,0-S1/12,0-S6 - HSK F50

short nose - 24.000rpm - liquid cooling 380V - encoder LB TTL - holes

ES779 - H6161H0592A

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Standard fixing holes
Cooling Liquid

ES779 - H6161H0625A

Kw 10,0-S1/12,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V - holes - HSD elect. conn.

ES779 - H6161H0625A

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Standard fixing holes

HSD electrical connection
Cooling Liquid

ES779 - H6161H0626A

Kw 10,0-S1/12,0-S6 - HSK F63

short nose - 24.000rpm - liquid cooling 380V - holes

ES779 - H6161H0626A

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Standard fixing holes
Cooling Liquid

ES779 - H6161H1263

Kw 10,0-S1/12,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V - encoder LB TTL - holes - military elect. conn.

ES779 - H6161H1263

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Standard fixing holes

Military electrical connection
Cooling Liquid

ES779 - H6161H0688

10,0-S1/12,0-S6 Kw - HSK F63

short nose - 24.000rpm - liquid cooling 380V - encoder LB 1Vpp - special holes

ES779 - H6161H0688

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000

Special fixing holes
Spindle Body Alluminium Alloy
Cooling Liquid

ES779 - H6161H0721A

Kw 10,0-S1/12,0-S6 - HSK E63

long nose - 15.000rpm - liquid cooling 380V - holes

ES779 - H6161H0721A

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder not available
Poles 4

Bearings Long Life lubricated
Max Rpm 15.000
Spindle Body Alluminium Alloy

Standard fixing holes
Cooling Liquid

ES779 - H6161H0733A

Kw 10,0-S1/12,0-S6 - HSK F63

short nose - 24.000rpm - liquid cooling 380V - encoder LB 1Vpp - holes - military elect. conn.

ES779 - H6161H0733A

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Standard fixing holes

Military electrical connection
Cooling Liquid

ES779 - H6161H0737

Kw 10,0-S1/12,0-S6 - HSK F50

short nose - 28.000rpm - liquid cooling 380V - special holes

ES779 - H6161H0737

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 28.000
Spindle Body Alluminium Alloy

Special fixing holes
Cooling Liquid

ES779 - H6161H0746

Kw 10,0-S1/12,0-S6 - HSK F63

long nose - 25.000rpm - liquid cooling 380V - holes - military elect. conn.

ES779 - H6161H0746

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 25.000
Spindle Body Alluminium Alloy

Standard fixing holes

Military electrical connection
Cooling Liquid


ES779 - H6161H0768

Kw 10,0-S1/12,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V - special holes - HSD elect. conn.

ES779 - H6161H0768

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Special fixing holes

HSD electrical connection
Cooling Liquid

ES779 - H6161H0779

Kw 10,0-S1/12,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V - holes

ES779 - H6161H0779

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy

Standard fixing holes
Cooling Liquid

ES779 - H6161H0785

Kw 10,0-S1/12,0-S6 - HSK E63

long nose - 15.000rpm - liquid cooling 380V - special holes

ES779 - H6161H0785

TECHNICAL SPECIFICATIONS

Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 15.000
Spindle Body Alluminium Alloy

Special fixing holes
Cooling Liquid

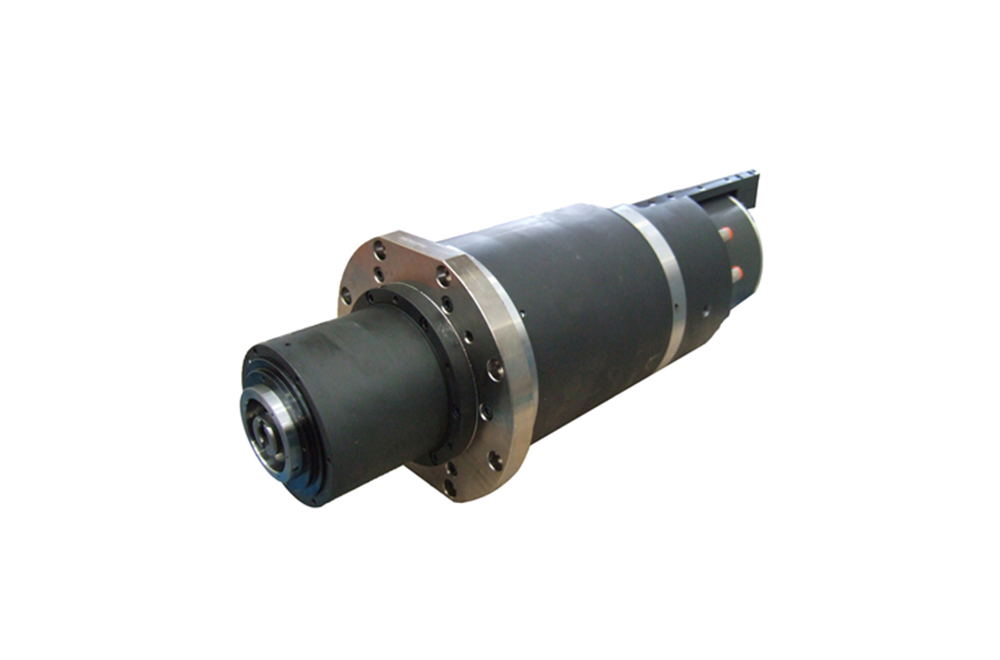

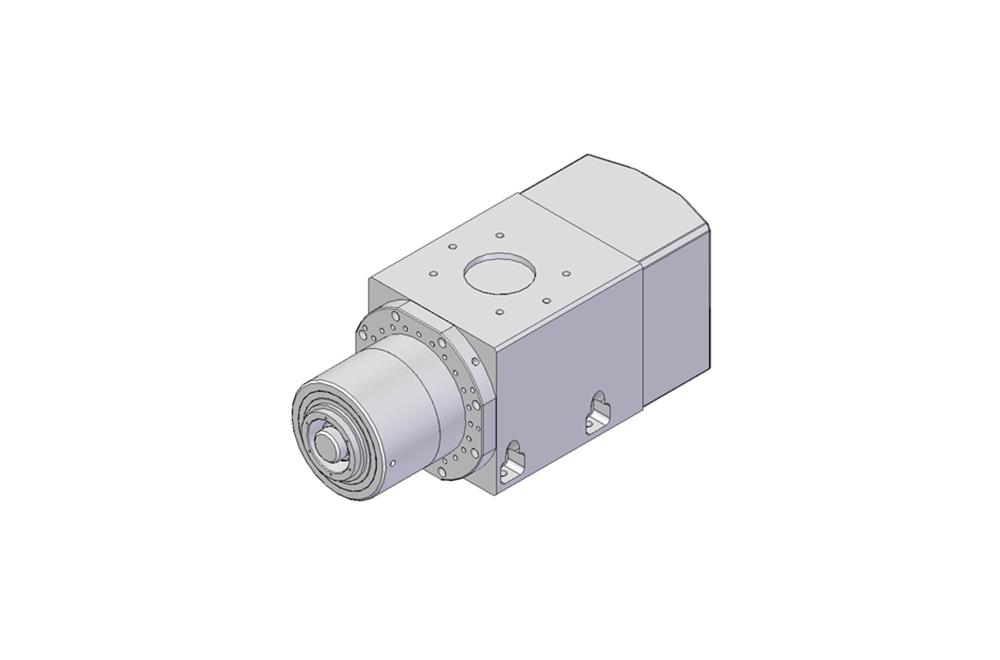

ES884 - H6161H0624

Kw 16,0-S1/18,0-S6 - HSK E63

liquid cooling 380V long nose - 15.000rpm

ES884 - H6161H0624

TECHNICAL SPECIFICATIONS
Power S1/S6 16,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 15.000
Spindle Body Steel
Cooling Liquid

ES884 - H6161H0831

Kw 16,0-S1/18,0-S6 - HSK F80

liquid cooling 380V long nose - 12.000rpm

ES884 - H6161H0831

TECHNICAL SPECIFICATIONS
Power S1/S6 16,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Steel
Cooling Liquid

ES929 - H6161H0765

Kw 16,0-S1/18,0-S6 - HSK F63

liquid cooling 380V long nose - 24.000rpm

ES929 - H6161H0765

TECHNICAL SPECIFICATIONS
Power S1/S6 16,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Liquid

ES929 - H6161H0906

Kw 16-S1/18-S6 - HSK F63

short nose - 24.000rpm

ES929 - H6161H0906

TECHNICAL SPECIFICATIONS
Power S1/S6 16Kw/18Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H0462

Kw 15,0-S1/18,0-S6 - HSK F63

long nose - 18.000rpm - liquid cooling 380V

ES789 - H6161H0462

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp Quadr.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 18000,00
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H0526A

Kw 15,0-S1/18,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES789 - H6161H0526A

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp Sin.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24000
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H0538A

Kw 15,0-S1/18,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES789 - H6161H0538A

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder HSD 400 Imp.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24000,00
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H0585A

Kw 15,0-S1/18,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES789 - H6161H0585A

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H0641

Kw 16,0-S1/18,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES789 - H6161H0641

TECHNICAL SPECIFICATIONS
Power S1/S6 16,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder HSD 400 Imp.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H0668A

Kw 15,0-S1/18,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES789 - H6161H0668A

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H0690A

Kw 15,0-S1/18,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES789 - H6161H0690A

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H0704A

Kw 15,0-S1/18,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES789 - H6161H0704A

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp Sin.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24.000,00
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H0709A

Kw 15,0-S1/18,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES789 - H6161H0709A

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp Sin.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24000,00
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H0786

Kw 15,0-S1/18,0-S6 - HSK F63

long nose - 24.000rpm - liquid cooling 380V

ES789 - H6161H0786

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp Quadr.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24000,00
Spindle Body Alluminium Alloy
Cooling Liquid

ES789 - H6161H1021

Kw 15,0-S1/18,0-S6 - HSK F63

liquid cooling 380V - encoder LB 1Vpp - holes - military elect. conn.

ES789 - H6161H1021

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid

ES789 - H6161H1046

Kw 15,0-S1/18,0-S6 - HSK F63 - long nose - 24.000rpm

liquid cooling 220/380V - encoder LB TTL - holes - military elect. conn

ES789 - H6161H1046

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid

ES789 - H6161H1116

Kw 15,0-S1/18,0-S6 - HSK F63 - long nose - 24.000rpm

liquid cooling 220/380V - holes - military elect. conn.

ES789 - H6161H1116

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid

ES789 - H6161H1115

Kw 15,0-S1/18,0-S6 - HSK A63 - long nose - 18.000rpm

liquid cooling 380V - encoder LB TTL - holes - military elect. conn.

ES789 - H6161H1115

TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
HSK A63
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 18.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid

ES779 - H6161H1177

Kw 13,5-S1/16,2-S6 - HSK F63

short nose - 24.000rpm - liquid cooling 380V - special holes

ES779 - H6161H1177

TECHNICAL SPECIFICATIONS
Power S1/S6 13,5Kw/16,2Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Special fixing holes
Cooling Liquid

S779 - H6161H0726A

13,5-S1/16,2-S6 Kw - HSK A63 - long nose

18.000rpm - liquid cooling 380V - encoder LB 1Vpp - holes

S779 - H6161H0726A

TECHNICAL SPECIFICATIONS
Power S1/S6 13,5Kw/16,2Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 18.000
Spindle Body Alluminium Alloy
Standard fixing holes
Cooling Liquid

ES779 - H6161H0839

Kw 13,5-S1/16,2-S6 - HSK A63

long nose - 18.000rpm - liquid cooling 380V - encoder LB 1Vpp - special holes

ES779 - H6161H0839

TECHNICAL SPECIFICATIONS
Power S1/S6 13,5Kw/16,2Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 18.000
Spindle Body Alluminium Alloy
Special fixing holes
Cooling Liquid

ES779 - H6161H1261

13,5-S1/16,2-S6 Kw - HSK F63

long nose - 24.000rpm - liquid cooling 380V - encoder LB TTL - holes

ES779 - H6161H1261

TECHNICAL SPECIFICATIONS
Power S1/S6 13,5Kw/16,2Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Cooling Liquid

ES779 - H6161H1213

Kw 13,5-S1/16,2-S6 - HSK A63

long nose - 18.000rpm - liquid cooling 380V - encoder LB 1Vpp - holes - military elect. conn.

ES779 - H6161H1213

TECHNICAL SPECIFICATIONS
Power S1/S6 13,5Kw/16,2Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 18.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid

ES884 - H6161H1280

Kw 19,0-S1/22,8-S6 - HSK F80

24,2Nm S1 - long nose - 15.000rpm - liquid 380V

ES884 - H6161H1280

TECHNICAL SPECIFICATIONS
Power S1/S6 19,0Kw/22,8Kw
Rated Torque S1/S6 24,2Nm/29Nm
HSK F80
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings grease lubrication
Max Rpm 15.000
Spindle Body Steel
Cooling Liquid

ES884 - H6161H1281

Kw 19,0-S1/22,8-S6 - HSK E63

24,2Nm S1 - long nose - 15.000rpm - liquid 380V

ES884 - H6161H1281

TECHNICAL SPECIFICATIONS
Power S1/S6 19,0Kw/22,8Kw
Rated Torque S1/S6 24,2Nm/29Nm
HSK E63
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings grease lubrication
Max Rpm 15.000
Spindle Body Steel
Cooling Liquid

ES883

Kw 19-S1/22,8-S6 - HSK E63 - 24,8Nm S1

long nose - 15.000rpm - liquid 380V - *cables connector

ES883

TECHNICAL SPECIFICATIONS
Power S1/S6 19Kw/22,8Kw
Rated Torque S1/S6 24,8Nm/29,8Nm
HSK E63
Tool Blocking Automatic with hydraulic piston
Long Nose
Ratered Voltage 380V
Poles 6
Ceramic Bearings
Max Rpm 15.000
Spindle Body Aluminium
Liquid Cooling

ES883

Kw 19-S1/22,8-S6 - HSK E63 - 24,8Nm S1

long nose - 15.000rpm - liquid 380V - *free cables

ES883

TECHNICAL SPECIFICATIONS
Power S1/S6 19Kw/22,8Kw
Rated Torque S1/S6 24,8Nm/29,8Nm
HSK E63
Tool Blocking Automatic with hydraulic piston
Long Nose
Ratered Voltage 380V
Poles 6
Ceramic Bearings
Max Rpm 15.000
Spindle Body Aluminium
Liquid Cooling

ES883

w 29,3-S1/35,2-S6 - HSK E63 - 28,6Nm S1

long nose - 15.000rpm - liquid 380V - *cables connector

ES883

TECHNICAL SPECIFICATIONS
Power S1/S6 29,3Kw/35,2Kw
Rated Torque S1/S6 28,6Nm/34,4Nm
HSK E63
Tool Blocking Automatic with hydraulic piston
Long Nose
Ratered Voltage 380V
Poles 6
Ceramic Bearings
Max Rpm 15.000
Spindle Body Aluminium
Liquid Cooling

ES883

Kw 29,3-S1/35,2-S6 - HSK E63 - 28,6Nm

S1 - long nose - 15.000rpm - liquid 380V - *free cables

ES883

TECHNICAL SPECIFICATIONS
Power S1/S6 29,3Kw/35,2Kw
Rated Torque S1/S6 28,6Nm/34,4Nm
HSK E63
Tool Blocking Automatic with hydraulic piston
Long Nose
Ratered Voltage 380V
Poles 6
Ceramic Bearings
Max Rpm 15.000
Spindle Body Aluminium
Liquid Cooling

ES789 - H6161H1443

Kw 25-S1/30-S6 - HSK F63 - 23,9Nm S1

long nose - 24.000rpm - liquid 380V - encoder LB 1Vpp

ES789 - H6161H1443

TECHNICAL SPECIFICATIONS
ower S1/S6 25Kw/30Kw
Rated Torque S1/S6 23,9Nm/28,6Nm
HSK F63
Tool Blocking Automatic with pneumatic piston
Encoder LB 1Vpp
Long Nose
Ratered Voltage 380V
Poles 4
Ceramic Bearings
Max Rpm 24.000
Spindle Body Aluminium
Liquid Cooling

ACCESSORIES

for Electrospindles

ACCESSORIES

TECHNICAL SPECIFICATIONS

Here you find accessories for HSD Electrospindles







     C AXIS - Short Nose





































      C AXIS - Longe Nose









































HSK F63 Flange

























ISO 30 Flange





















                                                    Pull-stud for ISO30 and ISO40

























     ISO and HSK Gripper























     CABLES - Power and Signal from 2mt to 25mt
