Multifunctional Modular Units

CATEGORY: WOOD LINE
Back Enquire

OVERVIEW

The new flexible and economic HSD Multifunctional Modular Units can perform a wide range of machining operations in the production of panels, doors and windows.

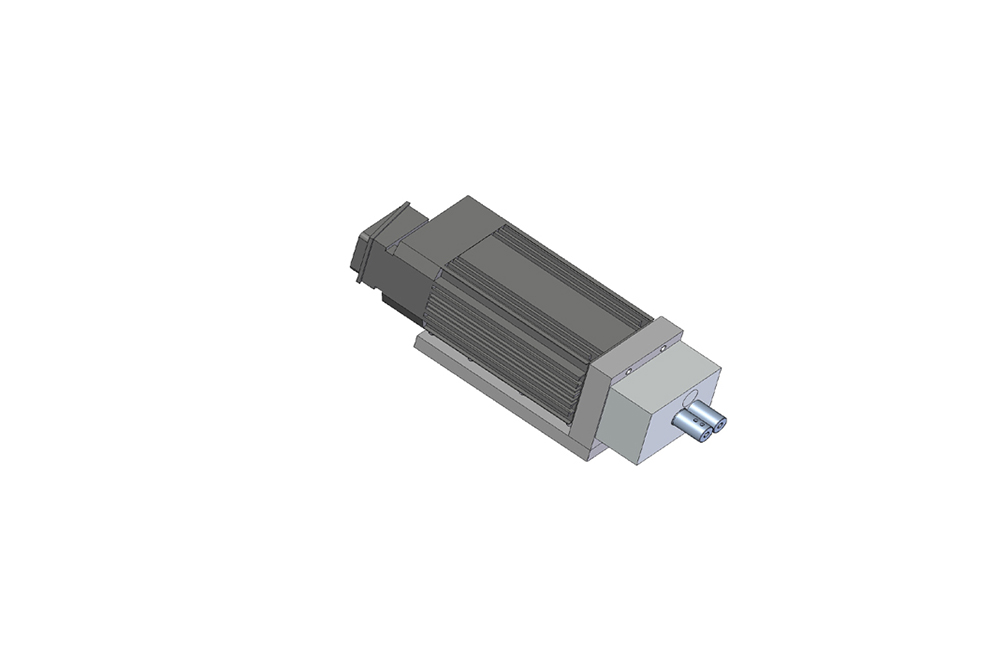

H613003400

2 vertical aligned spindles

step 22mm

H613003400

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated power: 1,7 kW

Rated frequency: 50 Hz

Rated torque: 5,78 Nm

Rated speed: 2790 rpm

Weight: 13,2 kg

Tools coupling: M10

Boring head lubrication: Mobil EP1

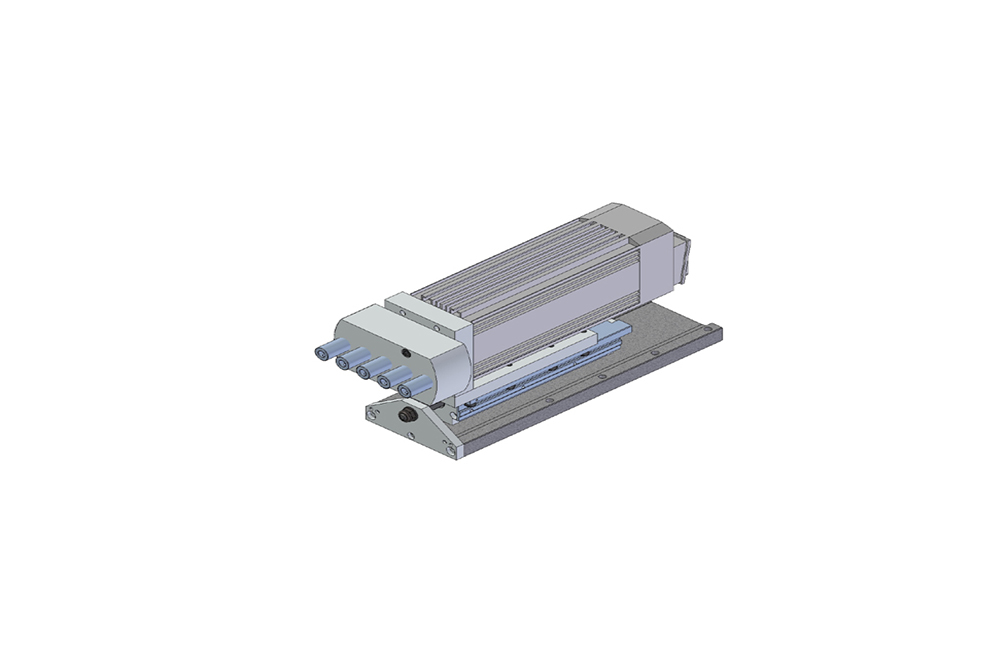

H613004700

5 vertical aligned spindles

step 32mm

H613004700

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated power: 1,7 kW

Rated frequency: 50 Hz

Rated torque: 5,78 Nm

Rated speed: 2790 rpm

Weight: 19,5 kg

Tools coupling: Ø 10mm

Boring head lubrication: Mobil EP1

H613000900

2 horizontal aligned spindles

step 21mm

H613000900

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated power: 1,1 kW

Rated frequency: 50 Hz

Rated torque: 3,82 Nm

Service: S6 - 60%

Rated speed: 2750 rpm

Tools coupling: Ø 6,35mm

Boring head lubrication: Mobil EP1

H613000800

3 horizontal aligned spindles

step 21,5mm

H613000800

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated power: 0,75 kW

Rated frequency: 50 Hz

Rated torque: 2,65 Nm

Rated speed: 2700 rpm

Weight: 10,5 kg

Tools coupling: Ø8mm

Boring head lubrication: Mobil EP1

H613001000

3 horizontal aligned spindles

step 21mm

H613001000

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated power: 1,3 kW

Rated frequency: 50 Hz

Rated torque: 4,6 Nm

Service: S6 - 60%

Rated speed: 2700 rpm

Weight: 12,2 kg

Tools coupling: Ø6,35mm

Boring head lubrication: Mobil EP1

H613003200

2 vertical aligned spindles

step 28mm

H613003200

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated power: 1,7 kW

Rated frequency: 50 Hz

Rated speed: 2790 rpm

Weight: 15 kg

Tools coupling: Ø 10mm + grano M6

Boring head lubrication: Mobil EP1

H6314H0204

9 vertical aligned spindles

step 32mm

H6314H0204

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated power: 1,7 kW

Rated frequency: 50 Hz

Rated speed: 2790 rpm

Boring head lubrication: Mobil EP1

H613003300

4 vertical aligned spindles

step 27,5 - 30 - 27,5mm

H613003300

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated power: 1,7 kW

Rated frequency: 50 Hz

Rated speed: 2790 rpm

Weight: 15 kg

Tools coupling: Ø 10mm + grano M6

Boring head lubrication: Mobil EP1

H610900600

Motor driven boring unit

with 1 ER20 collet right outlet

H610900600

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated voltage: 1,7 kW

Rated frequency: 50 Hz

Rated speed: 2790 rpm

Weight: 15 kg

Tools coupling: ER20 right

Boring head lubrication: grease Kluber NBU 15

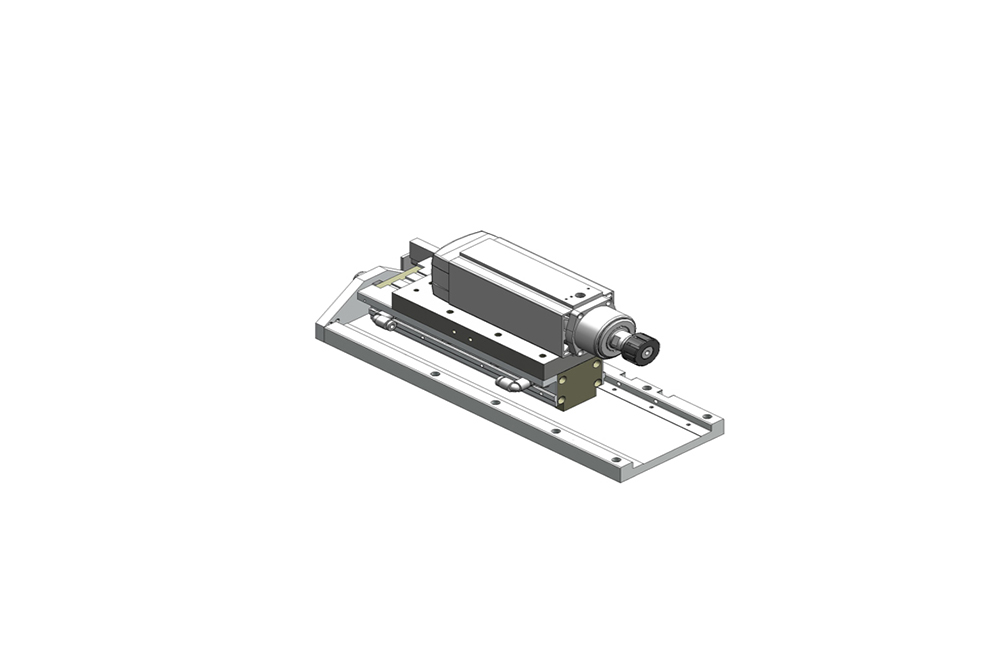

H6314H0257

Motor driven boring unit

with 1 ER20 collet on axis

H6314H0257

TECHNICAL SPECIFICATIONS

Rated voltage: 380 V

Rated voltage: 1 kW

Rated frequency: 300/400 Hz

Rated speed: 18.000/24.000 rpm

Weight: 3,5 kg

Tools coupling: ER20

Cooling: forced air

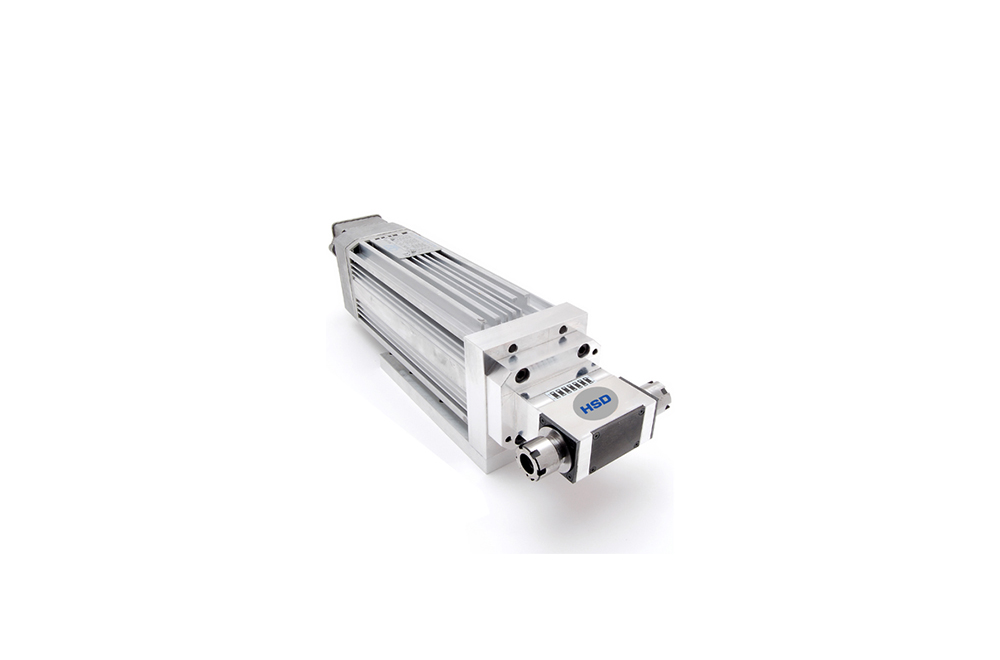

H610900500

Motor driven boring unit

with 2 ER20 collet right outlets

H610900500

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated power: 1,7 kW

Rated frequency: 50 Hz

Rated speed: 2790 rpm

Weight: 15 kg

Tools coupling: ER20 dx

Boring head lubrication: grease Kluber NBU 15

H6314H0213

1 Blade 120mm

H6314H0213

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated voltage: 1,7 kW

Rated frequency: 50 Hz

Rated speed: 2790 rpm

Boring head lubrication: grease Kluber NBU 15

H6314H0327

0-90° adjustable Blade Unit

Rated speed: 2790 rpm

H6314H0327

TECHNICAL SPECIFICATIONS

Rated voltage: 230/400 V

Rated power: 1,7 kW

Rated frequency: 50 Hz

Rated speed: 2790 rpm

Boring head lubrication: KLUBER NBU 15

Modular Units

5KW

view file

Modular Units

TECHNICAL SPECIFICATIONS

Contact us for more details!

View File

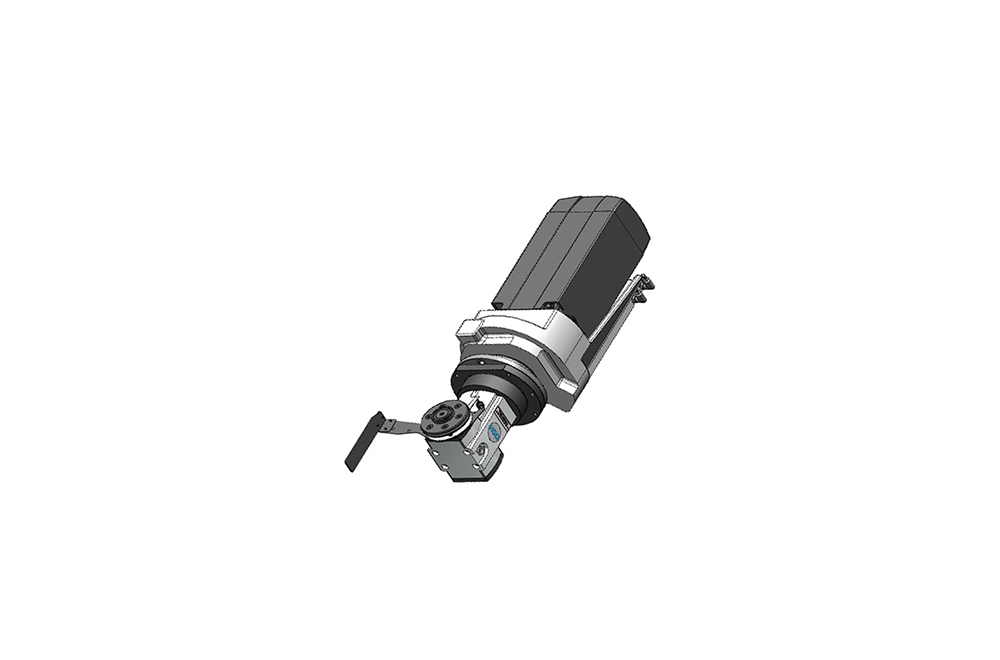

AS38A00021

rotazion 0°-360°

Torque + Ø300mm blade

AS38A00021

TECHNICAL SPECIFICATIONS

Rated / Max Torque: 20Nm / 50Nm

Rated voltage: 380V

Power: 5kW

Blade max speed: 5.500rpm

Blade diameter: 300mm

Working depth: 100mm

Weight: ~30kg
