Aggregate for Electrospindles

CATEGORY: WOOD LINE

OVERVIEW

The HSD aggregates designed for the Wood Line electrospindles allow a wide range of machining operations to be carried out, including milling, boring and cutting.
All our HSK and ISO aggregates are made of Avional aluminium, so as to guarantee structural solidity and long term durability.
The Wood Line is being constantly updated with the addition of new models, an example of which is the latest oil-lubricated woodworking aggregate.
Each mechanical, pneumatic and electronic component used in the HSD right angle head undergoes a double testing phase that guarantees optimum quality standards
HSD is the leading Italian company in the production of aggregate for electrospindles. DOWNLOAD CATALOGUE.

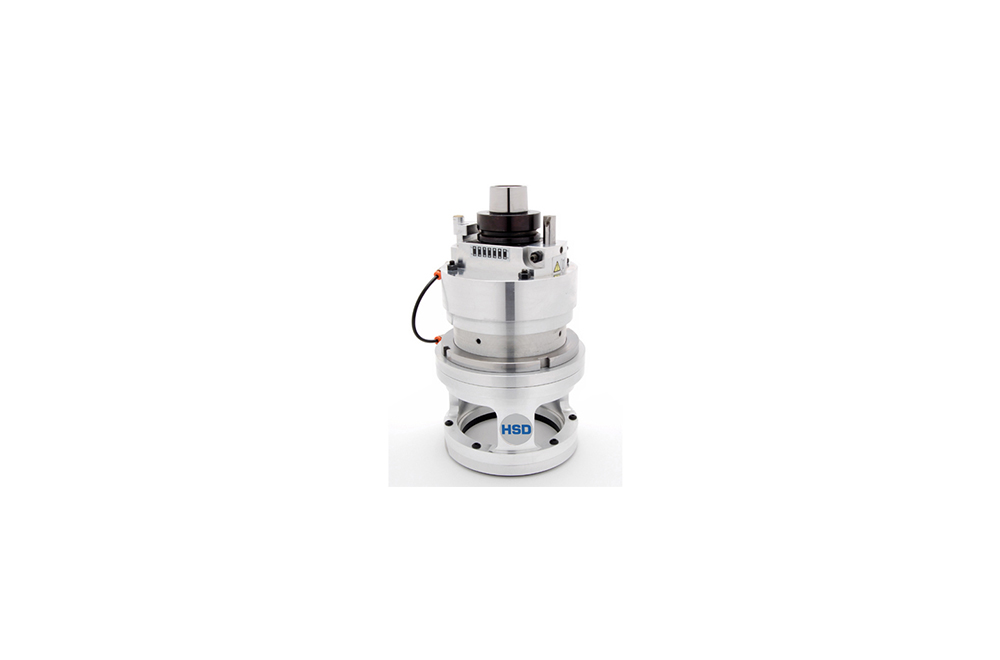

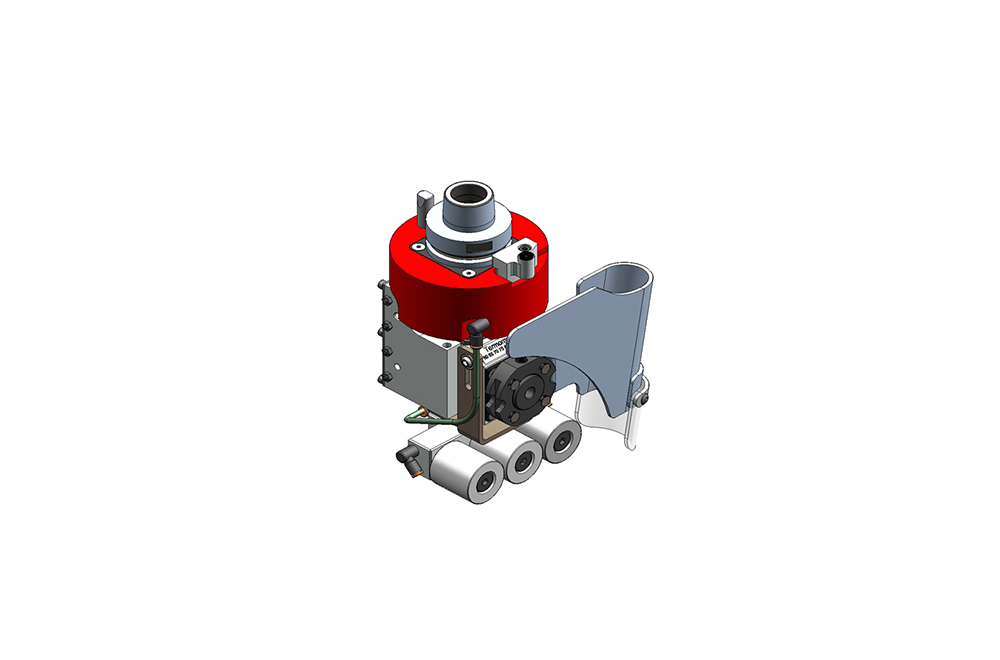

B6314B0022 (HSK F63)

1 ER32 collet outlet

For steady milling on uneven surface of panel

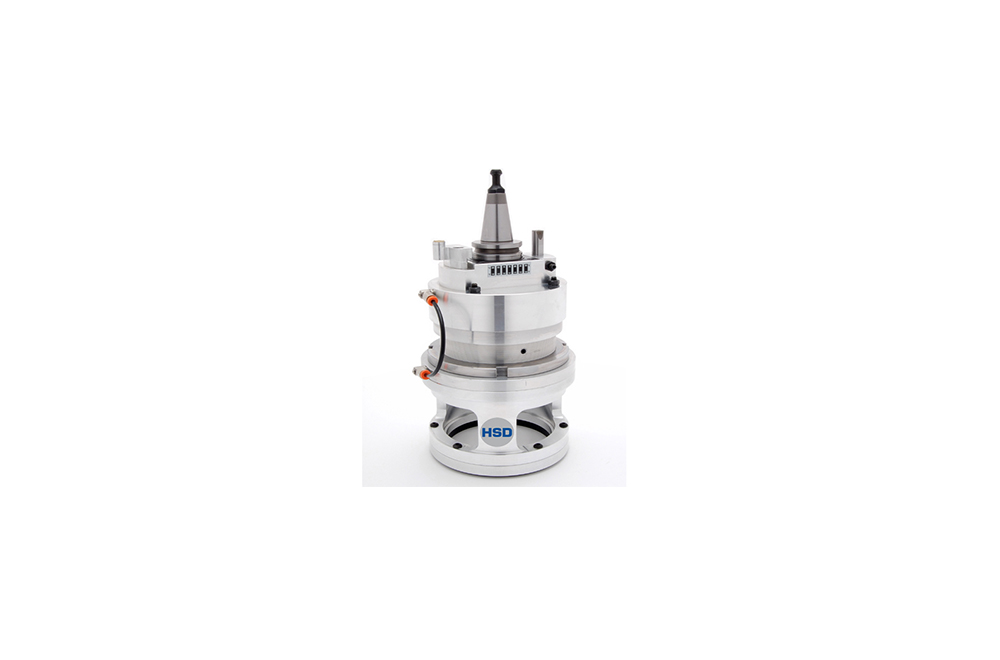

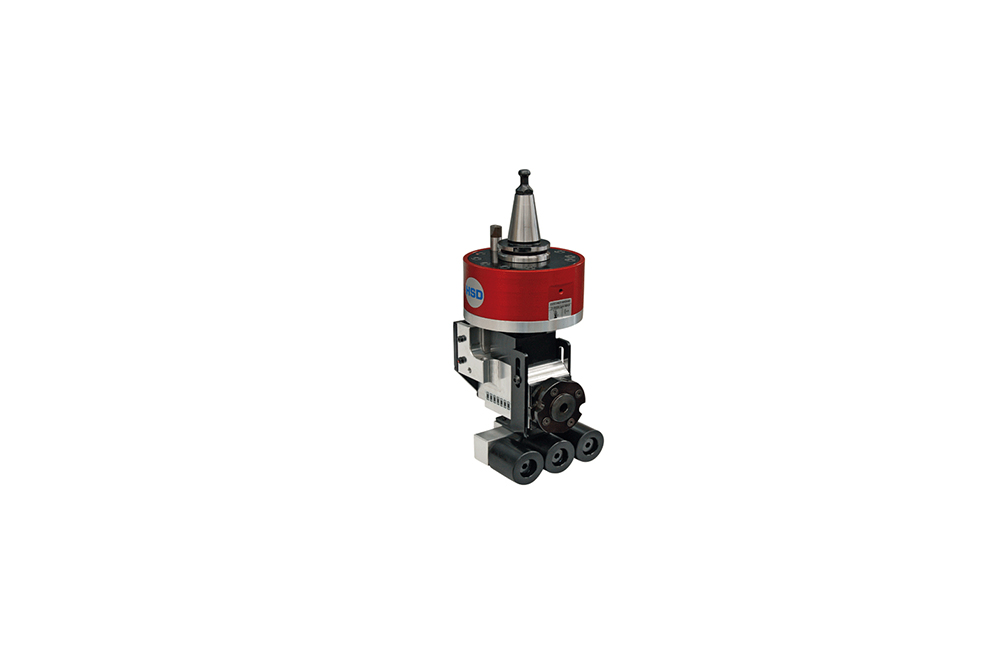

code B6314B0021 (ISO 30)

1 ER32 collet outlet

For steady milling on uneven surface of panel

code B6314B0012 (HSK F63)

1 ER25 collet outlet

For milling and wood engraving on uneven surface of panel

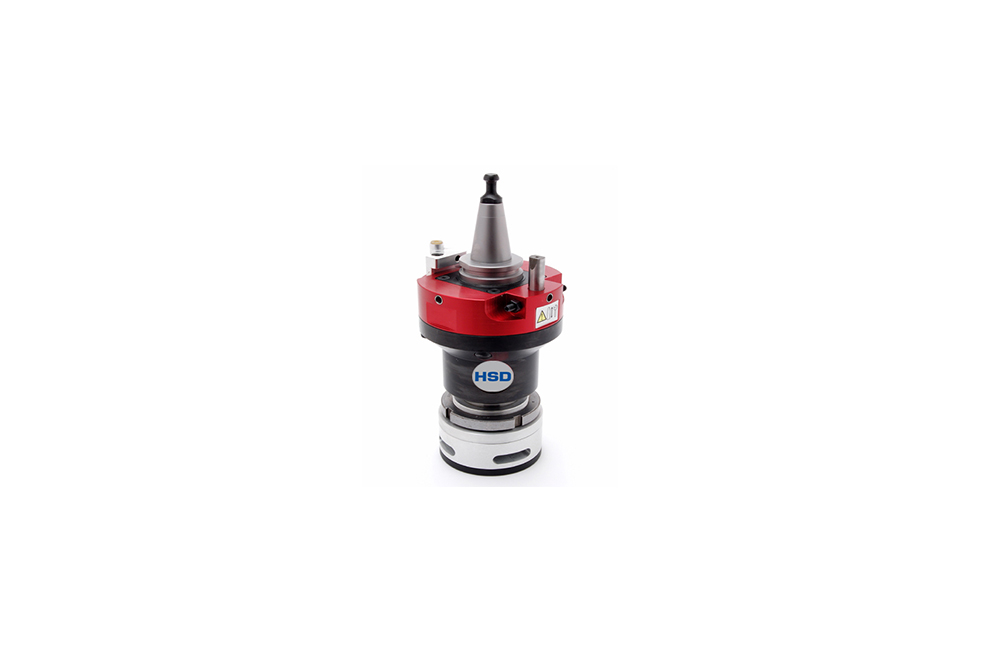

code B6314B0013 (ISO 30)

1 ER25 collet outlet

For milling and wood engraving on uneven surface of panel

code H6314H0552 (HSK F63)

1 floating blade Ø180

for cutting a workpiece with irregular thickness

code H6314H0502 (ISO 30)

1 floating blade Ø180

for cutting a workpiece with irregular thickness

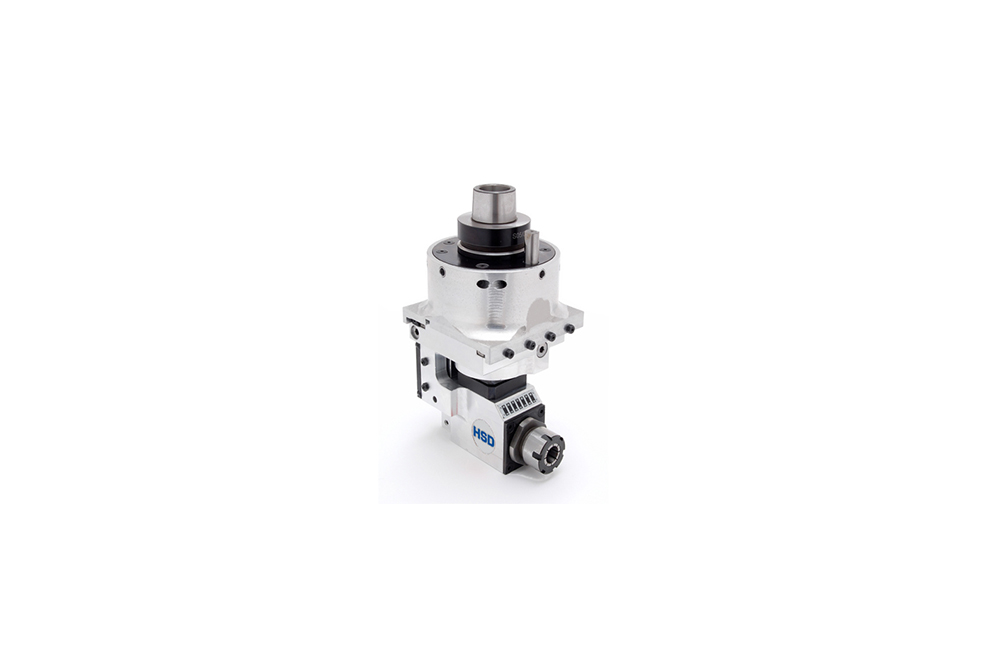

HASP0125 (HSK F63)

For steady milling on uneven surface of panel

1 ER25 horiz floating collet outlet +/- 1mm horiz +/- 1mm vert.

6714A2327 (HSK F63)

ER25 collet outlet

Tool rotation speed: 18.000 rpm

6714A2328 (ISO 30)

ER25 collet outlet

Tool rotation speed: 18.000 rpm

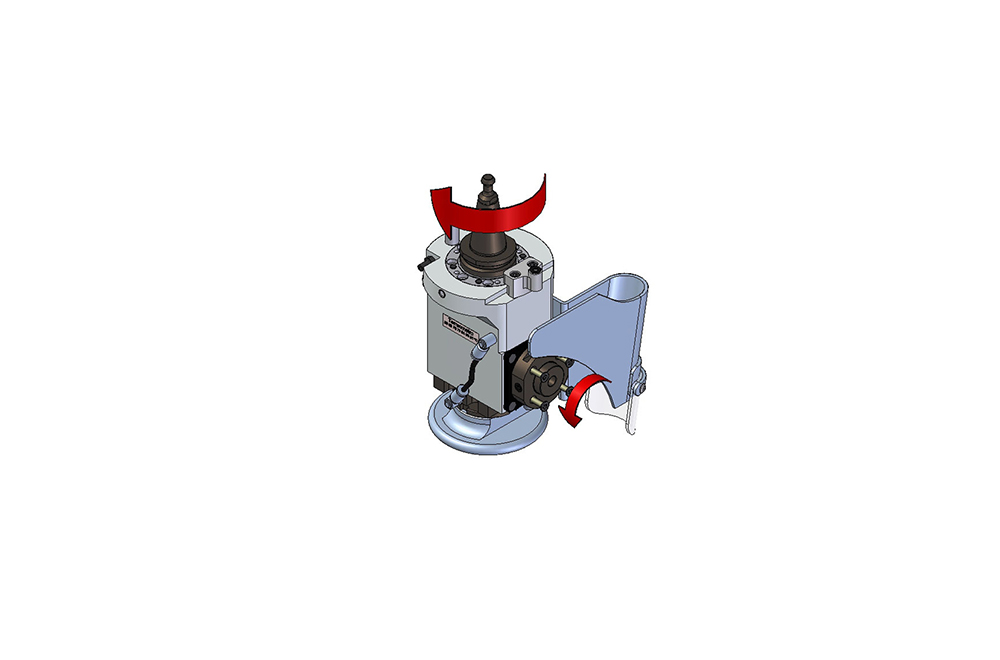

6314A0528 (HSK F63)

Aggregate with copier for Ø180 circular blade

Electrospindle rotation speed: 6.000 (*)/ 8.000 (°)

H630246700 (ISO 30)

with copier for Ø180 circular blade

Electrospindle rotation speed: 8000

HASP0246 (HSK F63)

1 ER32 collet outlet

Electrospindle rotation speed: 8000

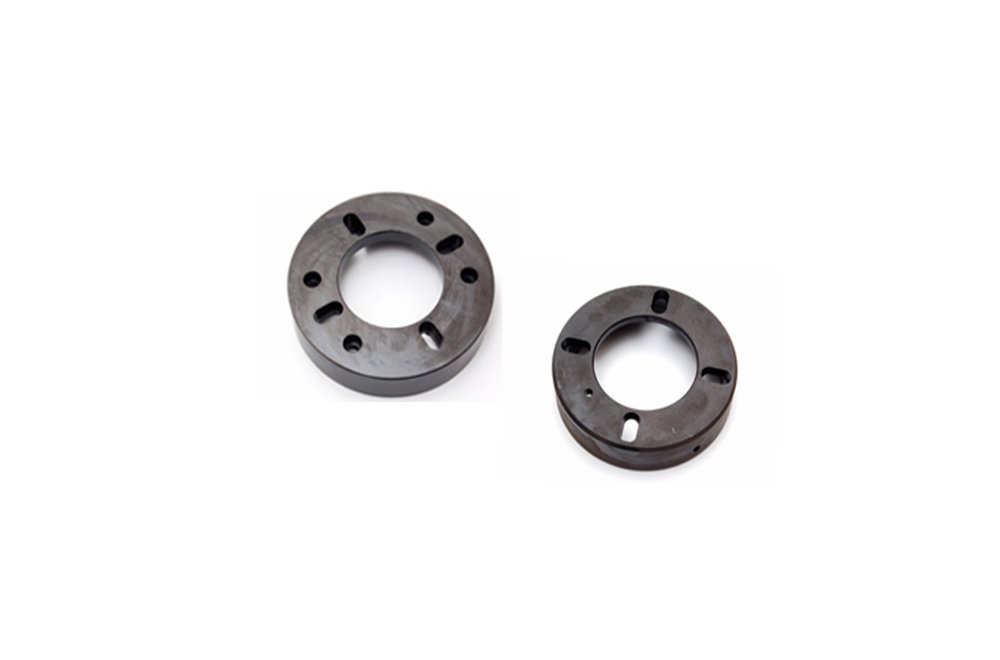

Accessories
