OVERVIEW
HSD quick-change air-cooled and liquid-cooled electro-spindles are world leaders in the machining of wood, aluminium and plastics. The spindles, produced in their thousands, are characterised by their extremely high reliability andthe wide range of powers and operating speeds available.
The declared power ratings are guaranteed during continuous service, while the power available for machining can be up to 100% higher during discontinuous operation.
Each mechanical, pneumatic and electronic component used in the HSD electrospindles undergoes a double testing phase that guarantees optimum quality standards.
HSD is the leading world company in the production of electrospindles.
ES338 - H6161H0869
TECHNICAL SPECIFICATIONS
Power S1/S6 0,4Kw/0,5Kw
Manual Tool Blocking
Ratered Voltage 220V
Poles 2
Bearings Front Steel
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Inox Steel
Cooling Forced Air
Right & Left Rotation
FOR LCD SCREEN MACHINING

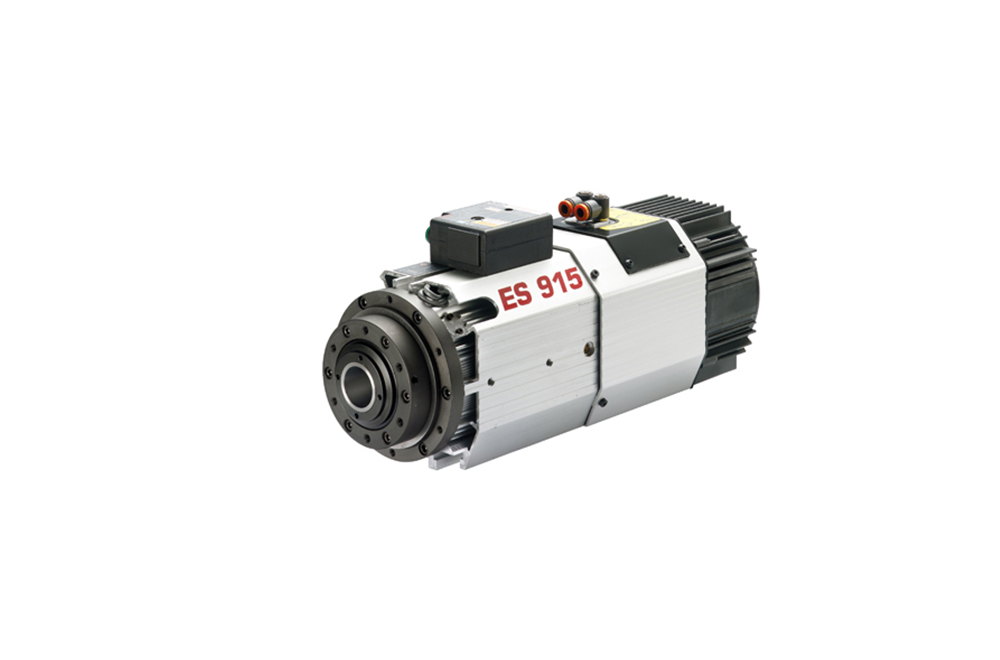

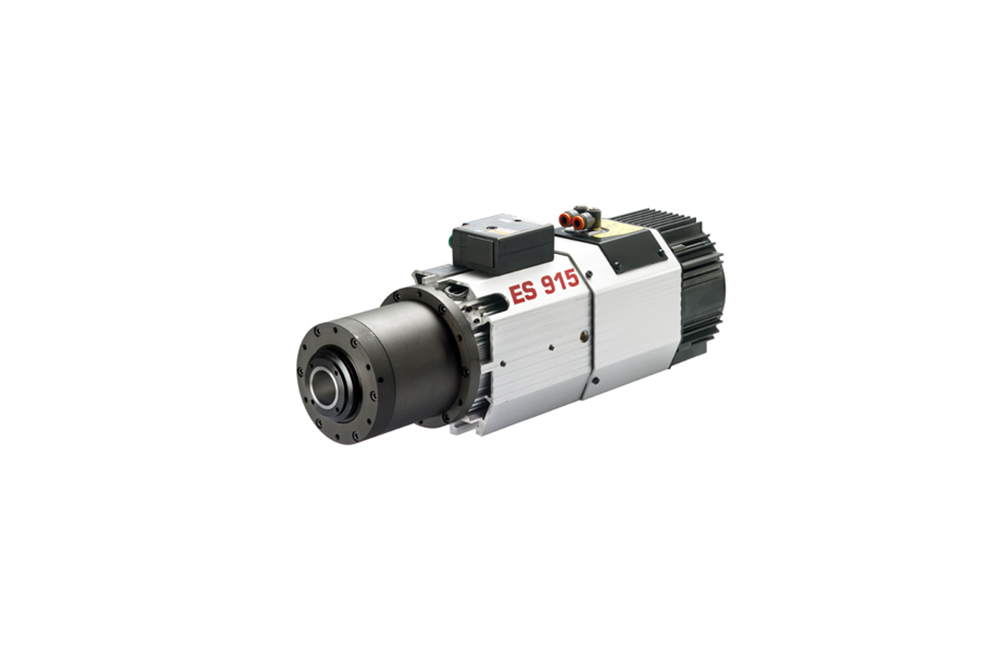

ES915 - H6161H0310
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 2
Bearings Steel
Bearings lubrication Long Life lubricated
Max Rpm 20.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Forced Air Plate
ES915 - H6161H0461
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6KwTool Blocking Automatic with pneumatic piston
Nose Short Nose
Ratered Voltage 380
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan
ES915 - H6161H0464
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6KwTool Blocking Automatic with pneumatic piston
Nose Short Nose
Ratered Voltage 380/220V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan
ES915 - H6161H0284A
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6KwTool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380/220V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan
ES915 - H6161H0308
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6KwTool Blocking Automatic with pneumatic piston
Nose Short Nose
Ratered Voltage 220V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan
ES915 - H6161H0309
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan
ES915 - H6161H0763
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan
ES915 - H6161H0636
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 2
Bearings Steel
Bearings lubrication Long Life lubricated
Max Rpm 20.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Forced Air Plate
ES915 - H6161H0633
TECHNICAL SPECIFICATIONS
Power S1/S6 3,8Kw/4,6KwTool Blocking Automatic with pneumatic piston
Nose Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 2
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 21Kg
Spindle Body Alluminium Alloy
Cooling Forced Air Plate
ES915 - H6161H0380
TECHNICAL SPECIFICATIONS
Power S1/S6 5Kw/6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 29Kg
Spindle Body Alluminium Alloy
Cooling Electic-Fan
ES915 - H6161H0445
TECHNICAL SPECIFICATIONS
Power S1/S6 5,0Kw/6,0KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Weight 29Kg
Spindle Body Alluminium Alloy
Cooling Forced Air Plate
ES330 - H6161090A2
TECHNICAL SPECIFICATIONS
Power S1/S6 4,0Kw/4,5Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 220V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Electic-Fan
ES330 - H6161090A6
TECHNICAL SPECIFICATIONS
Power S1/S6 4,0Kw/4,5Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Electric-Fan
ES330 - H6161H1041
TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6,6KwTool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Steel
Cooling Liquid
ES325 - H6161H0405
TECHNICAL SPECIFICATIONS
Power S1/S6 2Kw/2,4KwTool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder non available
Poles 2
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 40.000
Weight 7Kg
Spindle Body Alluminium Alloy
Cooling liquid
ES325 - H6161H0361
TECHNICAL SPECIFICATIONS
Power S1/S6 2Kw/2,4Kw
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder non available
Bearings Front Kronidur
Bearings Rear Kronidur
Poles 2
Bearings lubrication Long Life lubricated
Max Rpm 50000
Weight 7kg
Spindle Body Alluminium Alloy
Cooling liquid
ES326 - H6161H0460
TECHNICAL SPECIFICATIONS
Power S1/S6 4Kw/4,8KwTool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder non available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 40.000
Spindle Body Alluminium Alloy
Cooling liquid
ES326 - H6161H0558
TECHNICAL SPECIFICATIONS
Power S1/S6 4Kw/4,8Kw
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder non available
Bearings Front Kronidur
Bearings Rear Kronidur
Poles 4
Bearings Long Life lubricated
Max Rpm 50.000
Spindle Body Alluminium Alloy
Cooling liquid
ES327 - H6161H1007
TECHNICAL SPECIFICATIONS
Power S1/S6 3Kw/3,6Kw
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder non available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 40000
Weight: 8kg
Spindle Body Chromium-plated Steel
Cooling liquid
ES327 - H6161H1278
TECHNICAL SPECIFICATIONS
Power S1/S6 3Kw/3,6Kw
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder non available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 40000
Weight: 8kg
Spindle Body Chromium-plated Steel
Cooling liquid
Special pressurization
ES327 - H6161H1008
TECHNICAL SPECIFICATIONS
Power S1/S6 3Kw/3,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 220V
Encoder non available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 50.000
Weight: 8kg
Spindle Body Chromium-plated Steel
Cooling liquid
ES327 - H6161H1279
TECHNICAL SPECIFICATIONS
Power S1/S6 3Kw/3,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 220V
Encoder non available
Poles 4
Bearings Front Kronidur
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 50.000
Weight: 8kg
Spindle Body Chromium-plated Steel
Cooling liquid
Special pressurization
ES327 - H6161H0759
TECHNICAL SPECIFICATIONS
Power S1/S6 3Kw/3,6Kw
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder non available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 50000
Weight: 8kg
Spindle Body Chromium-plated Steel
Cooling liquid
ES327 - H6161H0964
TECHNICAL SPECIFICATIONS
Power S1/S6 3Kw/3,6Kw
Tool Blocking Automatic with pneumatic piston
Nose Short Nose
Ratered Voltage 220V
Encoder non available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 40000,00
Weight: 8kg
Spindle Body Chromium-plated Steel
Cooling liquid
ES331 - H6161H0777
TECHNICAL SPECIFICATIONS
Power S1/S6 4,5Kw/5,4Kw
Tool Blocking: hydraulic with oil
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 21.000
Spindle Body steel
Cooling Liquid
ES334 – H6161H1379
TECHNICAL SPECIFICATIONS
Power S1/S6 3,6Kw/4,3Kw
Torque S1/S6 5,7Nm/6,8Nm
BT30
Tool Blocking Automatic with hydraulic piston
Ratered Voltage 220V
Encoder LB 1Vpp
Poles 4
Bearings Ceramic
Bearings air-oil lubricated
Max Rpm 30.000 (air-oil)
Weight 27kg
Cooling Liquid
ES334 – H6161H1531
TECHNICAL SPECIFICATIONS
Power S1/S6 3,6Kw/4,3Kw
Torque S1/S6 6Nm/7,3Nm
HSK E40
Tool Blocking Automatic with hydraulic piston
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Ceramic
Bearings air-oil lubricated
Max Rpm 30.000 (air-oil)
Weight 27kg
Cooling Liquid
ES915 - H6161H0752
TECHNICAL SPECIFICATIONS
Power S1/S6 6,5Kw/7,5Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Ceramic Bearings
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 32.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES369 - H6161H0974 Asynchronous
TECHNICAL SPECIFICATIONS
Power S1/S6 7Kw/8,7Kw AsynchronousTool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder Not Available
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 20.000
Weight 20Kg
Spindle Body Alluminium Alloy
Liquid cooling
ES369 - H6161H1076 Synchronous
TECHNICAL SPECIFICATIONS
Power S1/S6 9Kw/11Kw SynchronousTool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Encoder Not Available
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 20.000
Weight 20Kg
Spindle Body Alluminium Alloy
Liquid cooling
ES929 - H6161H0970
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/8,6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Weight 26kg
Cooling forced air
ES925 - H6161H0596
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/10,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 29Kg
Spindle Body Alluminium Alloy
Cooling Liquid
ES929 - H6161H1027
TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6,6KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 20.000
Weight 26Kg
Spindle Body Alluminium Alloy
Forced air cooling
ES929 - H6161H1030
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/8,6KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Forced Air Cooling
ES331 - H6161H0755
TECHNICAL SPECIFICATIONS
Power S1/S6 7Kw/8,4Kw
Tool Blocking: hydraulic with oil
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body steel
Cooling Liquid
ES331 - H6161H1163
TECHNICAL SPECIFICATIONS
Power S1/S6 7Kw/8,4Kw
Tool Blocking: hydraulic with oil
Ratered Voltage 220V
Encoder LB 1Vpp
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body steel
Cooling Liquid
ES896 - H6161H0966
TECHNICAL SPECIFICATIONS
Power S1/S6 12Kw/14KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 15.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES896 - H6161H0966
TECHNICAL SPECIFICATIONS
Power S1/S6 12Kw/14KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 15.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES929 - H6161H0817
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0819
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0992
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Weight 31kg
Cooling Electric fan
ES929 - H6161H0996
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Weight 31kg
Liquid cooling
ES929 - H6161H0820
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 220/380V
Encoder not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0824
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 220/380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0838
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Forced Air
ES929 - H6161H0836
TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6,6KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 20.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0837
TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6,6KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 20.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Forced Air
ES929 - H6161H0977
TECHNICAL SPECIFICATIONS
Power S1/S6 5,5Kw/6,6Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Steel
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 20.000
Weight 34kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0823
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0821
TECHNICAL SPECIFICATIONS
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 220/380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings lubrication Long Life lubricated
Max Rpm 24000,00
Weight 31,00Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0822
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0866
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/8,6Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Weight 31kg
Cooling Electric fan
ES929 - H6161H0766
TECHNICAL SPECIFICATIONS
Power S1/S6 10,0Kw/12,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0835
TECHNICAL SPECIFICATIONS
Power S1/S6 12,0Kw/14,0KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Liquid
ES929 - H6161H0892
TECHNICAL SPECIFICATIONS
Power S1/S6 12,0Kw/14,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Max Rpm 28.000
Weight 34Kg
Spindle Body Alluminium Alloy
Cooling Liquid
ES929 - H6161H0806
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0903
TECHNICAL SPECIFICATIONS
ower S1/S6 5,5Kw/6Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 20.000
Weight 28Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0808
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Forced Air
ES929 - H6161H0902
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/9Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 28Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0563
TECHNICAL SPECIFICATIONS
Power S1/S6 8,0Kw/9,5KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0904
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Forced Air
ES929 - H6161H0736
TECHNICAL SPECIFICATIONS
Power S1/S6 10,0Kw/12,0Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 26Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0905
TECHNICAL SPECIFICATIONS
Power S1/S6 12Kw/14KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Liquid
ES929 - H6161H0669
TECHNICAL SPECIFICATIONS
Power S1/S6 10,0Kw/12,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Electric fan
ES929 - H6161H0677
TECHNICAL SPECIFICATIONS
Power S1/S6 10,0Kw/12,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Forced Air
ES929 - H6161H0753
TECHNICAL SPECIFICATIONS
Power S1/S6 7,5Kw/8,6Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Forced Air
ES929 - H6161H0807
TECHNICAL SPECIFICATIONS
Power S1/S6 12,0Kw/14,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Liquid
ES350 - H6161H0485
TECHNICAL SPECIFICATIONS
Power S1/S6 6,5Kw/8KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 36.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES350 - H6161H062
TECHNICAL SPECIFICATIONS
Power S1/S6 8Kw/9Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Encoder LB 1Vpp
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 36.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES350 - H6161H0764
TECHNICAL SPECIFICATIONS
Power S1/S6 8Kw/9Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Encoder LB TTL
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 36.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES988 - H6161H0328
TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,5Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder non available
Poles 4
Bearings Front Ceramic
ES988 - H6161H0326
TECHNICAL SPECIFICATIONS
Power S1/S6 11Kw/13,5KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder non available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings lubrication Long Life lubricated
Spindle Body Alluminium Alloy
Cooling electric fan
ES351 - H6161H1036
TECHNICAL SPECIFICATIONS
Power S1/S6 6,5Kw/7,5Kw
Tool Blocking Automatic with pneumatic piston
HSK E32
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Encoder LB 1Vpp
Max 40.000rpm
Spindle Body Alluminium Alloy
Cooling Liquid
ES351 - H6161H1209
TECHNICAL SPECIFICATIONS
Power S1/S6 6,5Kw/7,5Kw
Tool Blocking Automatic with pneumatic piston
HSK E32
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Encoder not available
Max 40.000rpm
Spindle Body Alluminium Alloy
Cooling Liquid
ES362 - H6161H0715
TECHNICAL SPECIFICATIONS
Tool Blocking Automatic with pneumatic piston
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 22.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES779 - H6161H1064
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Special fixing holes
Cooling Liquid
ES779 - H6161H0481A
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Special fixing holes
Cooling Liquid
ES779 - H6161H0517A
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Cooling Liquid
ES779 - H6161H0534
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Cooling Liquid
ES779 - H6161H1121
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
ES779 - H6161H0588A
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Special fixing holes
Cooling Liquid
ES779 - H6161H1082
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 25.000
Spindle Body Alluminium Alloy
Special fixing holes
Cooling Liquid
ES779 - H6161H059
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Cooling Liquid
ES779 - H6161H0625A
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
HSD electrical connection
Cooling Liquid
ES779 - H6161H0626
Kw 10,0-S1/12,0-S6 - HSK F63short nose - 24.000rpm - liquid cooling 380V - holes
ES779 - H6161H0626
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing hol
ES779 - H6161H1263
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
ES779 - H6161H0688
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Special fixing holes
Spindle Body Alluminium Alloy
Cooling Liquid
ES779 - H6161H0721A
Kw 10,0-S1/12,0-S6 - HSK E63long nose - 15.000rpm - liquid cooling 380V - holes
ES779 - H6161H0721A
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 15.000
Spindle Body Alluminium Alloy
Standard fixing holes
Cooling Liquid
ES779 - H6161H0733A
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
ES779 - H6161H0737
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 28.000
Spindle Body Alluminium Alloy
Special fixing holes
Cooling Liquid
ES779 - H6161H0746
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 25.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
ES779 - H6161H0768
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Special fixing holes
HSD electrical connection
Cooling Liquid
ES779 - H6161H0779
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Cooling Liquid
ES779 - H6161H0785
TECHNICAL SPECIFICATIONS
Power S1/S6 10Kw/12Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 15.000
Spindle Body Alluminium Alloy
Special fixing holes
Cooling Liquid
ES884 - H6161H0624
TECHNICAL SPECIFICATIONS
Power S1/S6 16,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 15.000
Spindle Body Steel
Cooling Liquid
ES884 - H6161H0831
TECHNICAL SPECIFICATIONS
Power S1/S6 16,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 12.000
Spindle Body Steel
Cooling Liquid
ES793 - H6161H1284
TECHNICAL SPECIFICATIONS
Power S1/S6 15Kw/18Kw
Tool Blocking Automatic with pneumatic piston
HSK A63
Encoder LB 1Vpp
Ratered Voltage 380V
Poles 6
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 18.000
Spindle Body Alluminium Alloy
Cooling Liquid
Optional Rotary Joint
Weight: 42kg
ES332 – H6161H1294
TECHNICAL SPECIFICATIONS
Power S1/S6 13Kw/15,6Kw
Torque S1/S6 10,3Nm/12,3
HSK A40
Tool Blocking Automatic with hydraulic piston
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Ceramic
Bearings air-oil lubricated
Max Rpm 32.000 (air-oil)
Weight 35kg
Cooling Liquid
No Rotary Joint
ES332 – H6161H1296
TECHNICAL SPECIFICATIONS
Power S1/S6 13Kw/15,6Kw
Torque S1/S6 10,3Nm/12,3
HSK A40
Tool Blocking Automatic with hydraulic piston
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Ceramic
Bearings air-oil lubricated
Max Rpm 32.000 (air-oil)
Weight 35kg
Cooling Liquid
Rotary Joint
ES332 – H6161H1296
TECHNICAL SPECIFICATIONS
Power S1/S6 13Kw/15,6Kw
Torque S1/S6 10,3Nm/12,3
HSK A40
Tool Blocking Automatic with hydraulic piston
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Ceramic
Bearings air-oil lubricated
Max Rpm 32.000 (air-oil)
Weight 35kg
Cooling Liquid
Rotary Joint
ES332 – H6161H1432
TECHNICAL SPECIFICATIONS
Power S1/S6 13Kw/15,6Kw
Torque S1/S6 10,3Nm/12,3
HSK E40
Tool Blocking Automatic with hydraulic piston
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Ceramic
Bearings grease lubricated
Max Rpm 24.000 (grease)
Weight 35kg
Cooling Liquid
No Rotary Joint
ES332 – H6161H1433
TECHNICAL SPECIFICATIONS
Power S1/S6 13Kw/15,6Kw
Torque S1/S6 10,3Nm/12,3
HSK E40
Tool Blocking Automatic with hydraulic piston
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Ceramic
Bearings air-oil lubricated
Max Rpm 32.000 (air-oil)
Weight 35kg
Cooling Liquid
No Rotary Joint
ES929 - H6161H0765
TECHNICAL SPECIFICATIONS
Power S1/S6 16,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder Not Available
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Liquid
ES929 - H6161H0906
TECHNICAL SPECIFICATIONS
Power S1/S6 16Kw/18KwTool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24.000
Weight 31Kg
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H0462ES789
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp Quadr.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 18000,00
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H0526A
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp Sin.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24000
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H0538A
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder HSD 400 Imp.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24000,00
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H0585A
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H0641
TECHNICAL SPECIFICATIONS
Power S1/S6 16,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder HSD 400 Imp.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H0668A
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H0690A
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H0704A
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp Sin.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H0709A
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp Sin.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24000,00
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H0786
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0KwTool Blocking Automatic with pneumatic piston
Nose Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp Quadr.
Poles 4
Bearings lubrification Long Life lubricated
Max Rpm 24000,00
Spindle Body Alluminium Alloy
Cooling Liquid
ES789 - H6161H1021
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
ES789 - H6161H1046
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
ES789 - H6161H1116
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
ES789 - H6161H1116
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 220/380V
No Encoder
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
ES789 - H6161H1124
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
Rotary Joint
ES789 - H6161H1115
TECHNICAL SPECIFICATIONS
Power S1/S6 15,0Kw/18,0Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
HSK A63
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 18.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
ES779 - H6161H1177
TECHNICAL SPECIFICATIONS
Power S1/S6 13,5Kw/16,2Kw
Tool Blocking Automatic with pneumatic piston
Short Nose
Ratered Voltage 380V
Encoder not available
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Special fixing holes
Cooling Liquid
ES779 - H6161H0726A
TECHNICAL SPECIFICATIONS
Power S1/S6 13,5Kw/16,2Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 18.000
Spindle Body Alluminium Alloy
Standard fixing holes
Cooling Liquid
ES779 - H6161H0839
TECHNICAL SPECIFICATIONS
Power S1/S6 13,5Kw/16,2Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 18.000
Spindle Body Alluminium Alloy
Special fixing holes
Cooling Liquid
ES779 - H6161H1261
TECHNICAL SPECIFICATIONS
Power S1/S6 13,5Kw/16,2Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB TTL
Poles 4
Bearings Long Life lubricated
Max Rpm 24.000
Spindle Body Alluminium Alloy
Standard fixing holes
Cooling Liquid
ES779 - H6161H1213
TECHNICAL SPECIFICATIONS
Power S1/S6 13,5Kw/16,2Kw
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Encoder LB 1Vpp
Poles 4
Bearings Long Life lubricated
Max Rpm 18.000
Spindle Body Alluminium Alloy
Standard fixing holes
Military electrical connection
Cooling Liquid
ES798 - H6161H1120
TECHNICAL SPECIFICATIONS
Power S1/S6 22Kw/25Kw
Tool Blocking Automatic with pneumatic piston
HSK A63
Rated Torque S1/S6 28Nm/32Nm
Ratered Voltage 350V
Encoder LB TTL
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 20.000
Spindle Body Alluminium Alloy
Weight 70kg
Cooling Liquid
Not Rotary Joint
ES798 - H6161H1133
TECHNICAL SPECIFICATIONS
Power S1/S6 22Kw/25Kw
Tool Blocking Automatic with pneumatic piston
HSK A63
Rated Torque S1/S6 28Nm/32Nm
Ratered Voltage 350V
Encoder LB TTL
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 20.000
Spindle Body Alluminium Alloy
Weight 70kg
Cooling Liquid
Not Rotary Joint
ES798 - H6161H1134
TECHNICAL SPECIFICATIONS
Power S1/S6 22Kw/25Kw
Tool Blocking Automatic with pneumatic piston
HSK A63
Rated Torque S1/S6 28Nm/32Nm
Ratered Voltage 350V
Encoder LB 1Vpp
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 20.000
Spindle Body Alluminium Alloy
Weight 70kg
Cooling Liquid
Rotary Joint
ES798 - H6161H1135
TECHNICAL SPECIFICATIONS
Power S1/S6 22Kw/25Kw
Tool Blocking Automatic with pneumatic piston
HSK A63
Rated Torque S1/S6 28Nm/32Nm
Ratered Voltage 350V
Encoder LB 1Vpp
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 20.000
Spindle Body Alluminium Alloy
Weight 70kg
Cooling Liquid
Rotary Joint
ES798 - H6161H1110
TECHNICAL SPECIFICATIONS
Power S1/S6 22Kw/25Kw
Tool Blocking Automatic with pneumatic piston
HSK A63
Rated Torque S1/S6 28Nm/32Nm
Ratered Voltage 350V
Encoder LB 1Vpp
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 20.000
Spindle Body Alluminium Alloy
Weight 70kg
Cooling Liquid
Not Rotary Joint
ES798 - H6161H1147
TECHNICAL SPECIFICATIONS
Power S1/S6 22Kw/25Kw
Tool Blocking Automatic with pneumatic piston
HSK A63
Rated Torque S1/S6 28Nm/32Nm
Ratered Voltage 350V
Encoder LB 1Vpp
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 20.000
Spindle Body Alluminium Alloy
Weight 70kg
Cooling Liquid
Not Rotary Joint
ES798 - H6161H1268
TECHNICAL SPECIFICATIONS
Power S1/S6 22Kw/25Kw
Tool Blocking Automatic with pneumatic piston
HSK A63
Rated Torque S1/S6 28Nm/32Nm
Ratered Voltage 350V
Encoder LB 1Vpp
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings Long Life lubricated
Max Rpm 18.000
Spindle Body Alluminium Alloy
Weight 70kg
Cooling Liquid
Not Rotary Joint
ES884 - H6161H1280
TECHNICAL SPECIFICATIONS
Power S1/S6 19,0Kw/22,8Kw
Rated Torque S1/S6 24,2Nm/29Nm
HSK F80
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings grease lubrication
Max Rpm 15.000
Spindle Body Steel
Cooling Liquid
ES884 - H6161H1281
TECHNICAL SPECIFICATIONS
Power S1/S6 19,0Kw/22,8Kw
Rated Torque S1/S6 24,2Nm/29Nm
HSK E63
Tool Blocking Automatic with pneumatic piston
Long Nose
Ratered Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Steel
Bearings grease lubrication
Max Rpm 15.000
Spindle Body Steel
Cooling Liquid
ES883
Kw 19-S1/22,8-S6 - HSK E6324,8Nm S1 - long nose - 15.000rpm - liquid 380V - *cables connector
ES883
TECHNICAL SPECIFICATIONS
Power S1/S6 19Kw/22,8Kw
Rated Torque S1/S6 24,8Nm/29,8Nm
HSK E63
Tool Blocking Automatic with hydraulic piston
Long Nose
Ratered Voltage 380V
Poles 6
Ceramic Bearings
Max Rpm 15.000
Spindle Body Aluminium
Liquid Cooling
ES883
TECHNICAL SPECIFICATIONS
Power S1/S6 19Kw/22,8Kw
Rated Torque S1/S6 24,8Nm/29,8Nm
HSK E63
Tool Blocking Automatic with hydraulic piston
Long Nose
Ratered Voltage 380V
Poles 6
Ceramic Bearings
Max Rpm 15.000
Spindle Body Aluminium
Liquid Cooling
ES883
TECHNICAL SPECIFICATIONS
Power S1/S6 29,3Kw/35,2Kw
Rated Torque S1/S6 28,6Nm/34,4Nm
HSK E63
Tool Blocking Automatic with hydraulic piston
Long Nose
Ratered Voltage 380V
Poles 6
Ceramic Bearings
Max Rpm 15.000
Spindle Body Aluminium
Liquid Cooling
ES883
TECHNICAL SPECIFICATIONS
Power S1/S6 29,3Kw/35,2Kw
Rated Torque S1/S6 28,6Nm/34,4Nm
HSK E63
Tool Blocking Automatic with hydraulic piston
Long Nose
Ratered Voltage 380V
Poles 6
Ceramic Bearings
Max Rpm 15.000
Spindle Body Aluminium
Liquid Cooling
ES789 - H6161H1443
TECHNICAL SPECIFICATIONS
Power S1/S6 25Kw/30Kw
Rated Torque S1/S6 23,9Nm/28,6Nm
HSK F63
Tool Blocking Automatic with pneumatic piston
Encoder LB 1Vpp
Long Nose
Ratered Voltage 380V
Poles 4
Ceramic Bearings
Max Rpm 24.000
Spindle Body Aluminium
Liquid Cooling
ACCESSORIES FOR ELECTROSPINDLES
TECHNICAL SPECIFICATIONS
C AXIS - Short Nose - CODE H6314H0018C
C AXIS - Longe Nose - CODE H6314H0019B
HSK F63 Flange
ISO 30 Flange
Pull-stud for ISO30 and ISO40
.jpg)
ISO and HSK Gripper
